Mini-TOC question

  • December 19, 2019
  • 3 replies
  • 689 views

I'm having a mini-TOC issue:

  1. FrameMaker 2019 v15.0.4.751
  2. Heading2 has auto-number defined as: a:Part < ><n+>. In this file, the part number is 2.
  3. Footer is correctly picking up the part number using <$paranumonly[Heading2] and displays a 2.
  4. X-refs are correctly picking up the part number using <$paranumonly[Heading2] and display a 2.
  5. Mini-TOC is not. Instead <$paranumonly[Heading2] is picking up the Heading3MTOC & Heading4MTOC numbers.

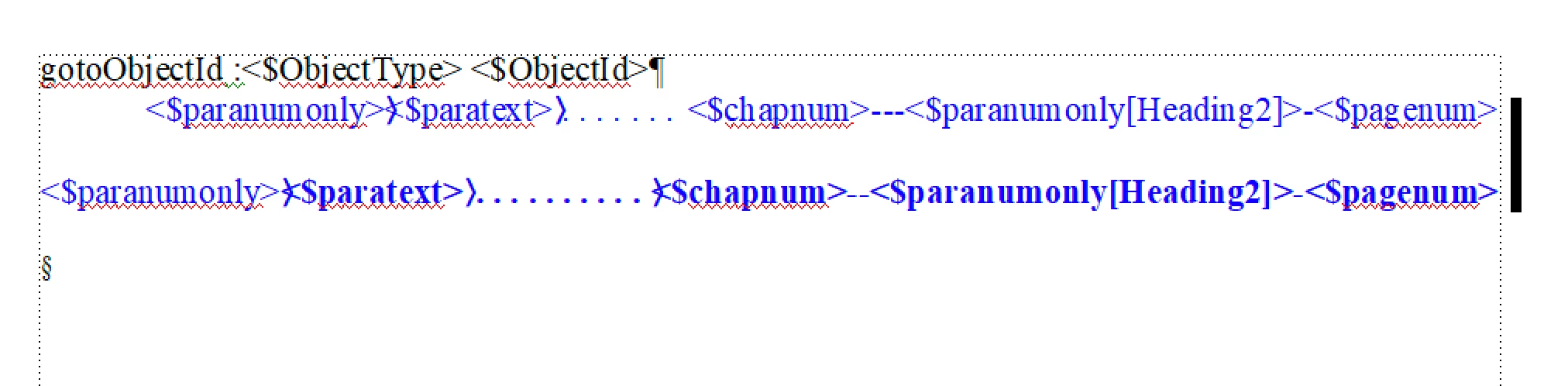

MTOC Reference Page



MTOC on Body Page
The numbers in orange on the right should all be a 2, representing the part number for this file. Instead, they are displaying the numbes from the beginning of the MTOC line. What am I doing wrong?



Thanks in advance,

~Barb

This topic has been closed for replies.
Correct answer frameexpert

Hi Barb, It's been awhile since I looked at this, but I don't think you can use these kinds of building blocks in generated files. They only work in cross-reference formats. -Rick

3 replies

Barb Binder
Community Expert
Community Expert
December 19, 2019

This is a different client, but I'll bring it up.


~Barb

~Barb at Rocky Mountain Training
Barb Binder
Community Expert
Community Expert
December 19, 2019

Right. I updated the book structure and I can now see where I veered off track. So do you agree that the only way to get the part number into the various TOCs is to produce them with x-refs and not with the TOC feature?



~Barb

~Barb at Rocky Mountain Training
frameexpert
Community Expert
Community Expert
December 19, 2019

I would have to see what you are doing to be sure, but cross-references would likely be the only way to this, unless you want to script it.

www.frameexpert.com
frameexpert
Community Expert
frameexpertCommunity ExpertCorrect answer
Community Expert
December 19, 2019

Hi Barb, It's been awhile since I looked at this, but I don't think you can use these kinds of building blocks in generated files. They only work in cross-reference formats. -Rick

www.frameexpert.com
