Multi-channel publishing and reference pages

Forum|Forum|11 years ago
August 7, 2014
4 replies
1384 views

Hi all,

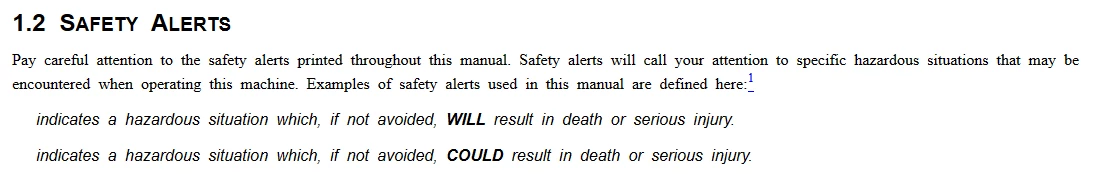

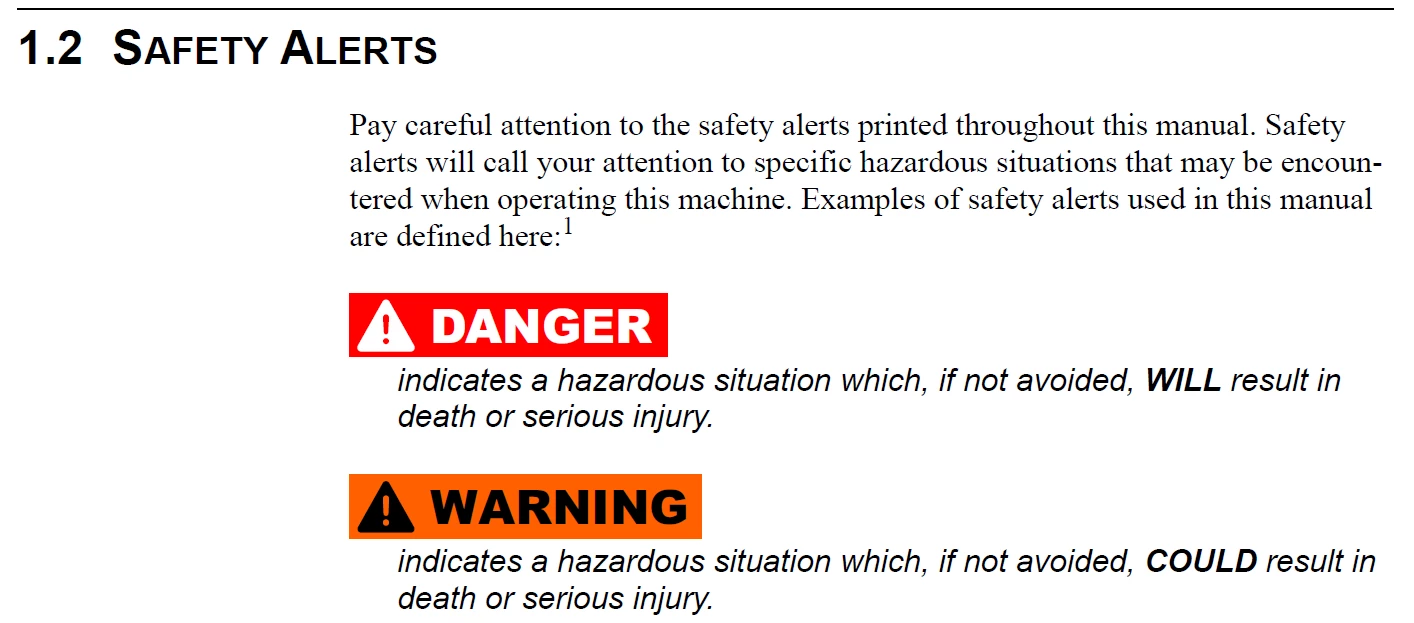

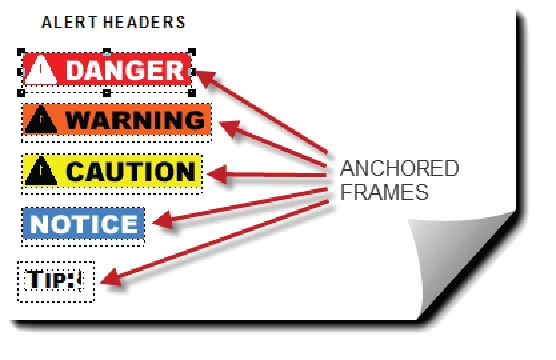

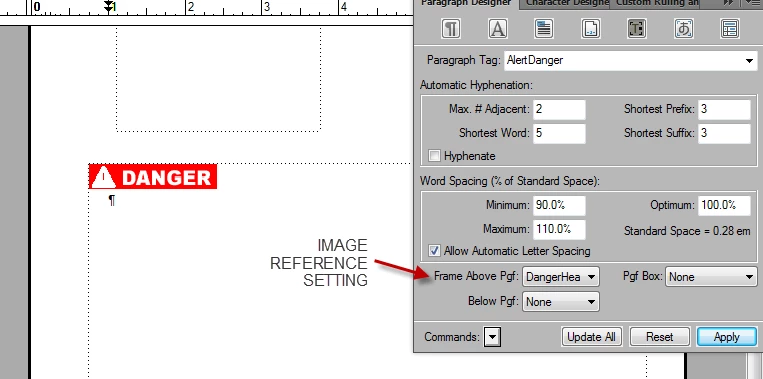

I'm beginning to dig into FM12 multi-channel publishing. I have stripped down my unstructured template to a more minimalist model in order to flex better to multiple outputs. My current document template has several ANSI-based alert styles (Danger, Warning, etc.) that reference heading images in the reference pages. These heading images do not show up when I publish to HTML5. The header images are important to these styles, but I am loathe to add them manually to each instance, obviously. Is it possible to call reference page images when publishing to HTML 5, or should I change my styles?

I know that this will not be an issue when I to migrate to XML, but I'm hoping to find a quick fix in the meantime. I suspect that if there is an unstructured solution to this, it's hiding in the style mapping settings.

Thanks in advance for your advice!

This topic has been closed for replies.

GrossTonnageAuthor

Participating Frequently

FYI, This problem was addressed by the latest patch. I contacted everyone in @ArnisGubins ' post above, and they responded promptly and proactively. Thanks to everyone who weighed in here and leaned on Adobe to get this addressed.

Bob_Niland

Community Expert

And just in case you wanted another aspect of this to tweak, be sure to see:

ANSI Z535.1 Safety Colors in Frame

M

mattschlote

Participant

I reported this bug to Adobe about a month ago. They said it would be fixed in the next release of FM, whenever that may be.

In the short-term, you can use CSS to place an image before a particular format. In my example I am using a NDNoteWarning format that had a reference frame Warning icon above text. Add the below style info to the main.css file (located in template/Theme1_Standard/ folder). You'll have to play around with the margin and text-align settings for your application:

#rh_default_topic_placeholder_id p.FM_NDNoteWarning::before {

content:url(note-warning.png);

display: block;

margin-left: auto;

margin-right: auto;

margin-top: 8px;

text-align: center;

}

GrossTonnageAuthor

Participating Frequently

@mattschlote,

I suspected/hoped that CSS would hold a solution to this problem, but I'm a relative noob there. Thanks for the starter code. I'll tweak it, try it out, and post results.
