Numbering is not mapping properly in HTML

Forum|Forum|1 year ago
December 13, 2024
4 replies
2196 views

Hi, My Framemaker template has two para tags for numbered lists:

NumberedListFirst (for the first step) (item 1)
NumberListNext (for all succeeding steps). (items 2-n)

When I generate HTML using the Publish command, the numbering is not ccorrect in HTML.

The first item in the list is 1.
The second item is also 1.
The succeeding items are numbered properly, 2-n

Also if there is more than one list on an HTML page, the results are even worse:

The first item is 1.
The second item n+1 (the next number after the last step in the first list).
The succeeding items are numbered n+2, n+3, etc.

Does anyone have any tips on how I can map these styles to make the numbers show correctly? We have used this template for a long time and no one has ever complained about the numbering in the HTML files so I think this is something new that I introduced. Does anyone have advice on how to map these styles so they are correct in HTML? I have many many numbered lists so redoing them in Framemaker is not really an option right now.
Thanks in advance.

Marcia

Responsive HTML5

This topic has been closed for replies.

Matt-Tech Comm Tools

Community Expert

Here is a write up I did a while back. It should still be valid.

This post addresses the paragraph styles and mapping to custom css

https://techcommtools.com/fm-publishing-html5-lists/

-Matt Sullivan, FrameMaker Course Creator, Author, Trainer, Consultant

Matt-Tech Comm Tools

Community Expert

To clarify the cause of the issue, could you please post the HTML of the output?

The problem likely lies with the mapping that Bjorn mentioned, and the (lack of) HTML ordered list elements that Bob mentioned.

Regardless, seeing the code will help us give you a more direct solution.

-Matt Sullivan, FrameMaker Course Creator, Author, Trainer, Consultant

G

gimpfamAuthor

Known Participant

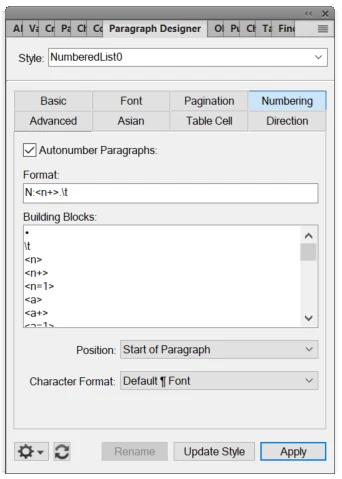

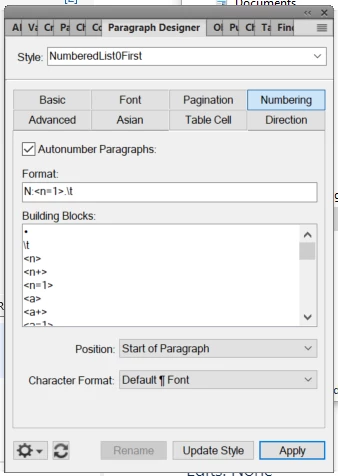

Thank you for trying to clarify my problem. I'm sorry to be so slow to reply. We had another work emergency and I haven't been able to get back to this before now... I'm sending a couple of things... Screenshots of my numbered list tags. I did not create them template, but it looks like it h a sequence characters. N (see attached). And the Autonumber selection for the numbering paragraph tags are set to "Convert to List", which is different than the "Convert to Text" as shown above.

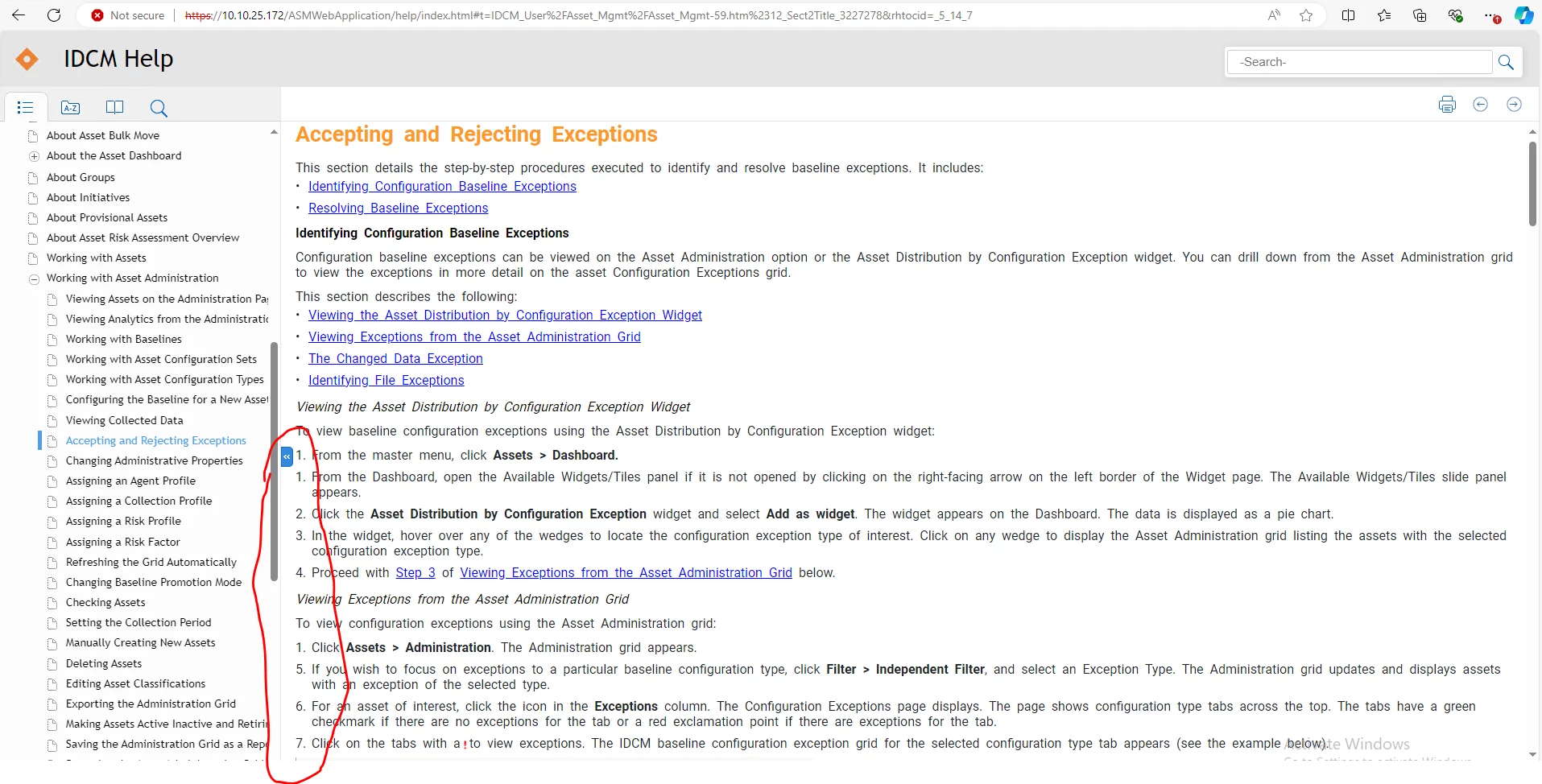

One of the things that is really infuriating about this is the product is accessed via a web browser. You access the product, then click a menu to view tthe Help. It seems that depending on the machine you access the product on (using the same URL), sometimes the numbering is Ok and on other machines it is not. Below is a section from a machine where the numbering is not displaying properly. I've also included the HTML source for that section. Please note that on machines where the numbering is bad, it is the same throughout the whole Help system. This is just one example of a place where it is displaying incorrectly. I hope this is the information you are loking for. I really appreciate your time and any help you can offer. Thank you. Marcia

html_number_section.txt

Matt-Tech Comm Tools

Community Expert

Hi Marcia,

Your current mapping creates p elements that then (unsucessfully) try to produce numbering.

Instead, take ~~Jeff's~~ Bjorn's advice when mapping your paragraph styles

and output actual html ol lists with li list items like this:

It's likely you'll need to fiddle with css to get it finished, but this should get you to a point where your lists are accurate, and then we can look at the css.

-Matt Sullivan, FrameMaker Course Creator, Author, Trainer, Consultant

Bob_Niland

Community Expert

Is what you are describing just how the HTML renders, or have you confirmed the problem by checking the ‹ol› tags for their type & start attributes (or any parent CSS generated that controls those)?

F

FrameMaker-dk

Community Expert

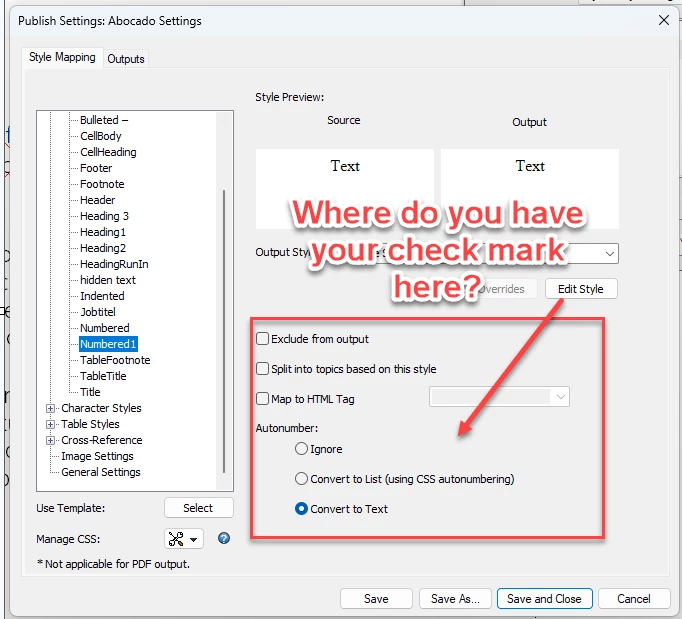

This is the settings dialogue in the HTML5 publish settings. Where do you have a check mark in this dialogue?

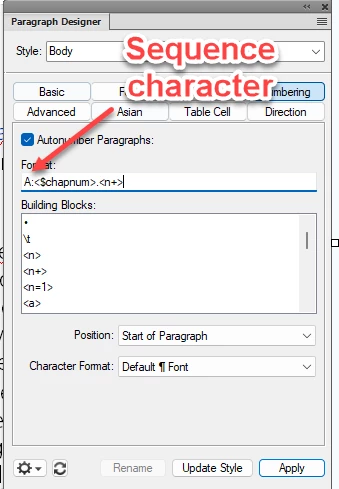

Also - do you have a sequence character in your numbering settings in your paragraph styles?
