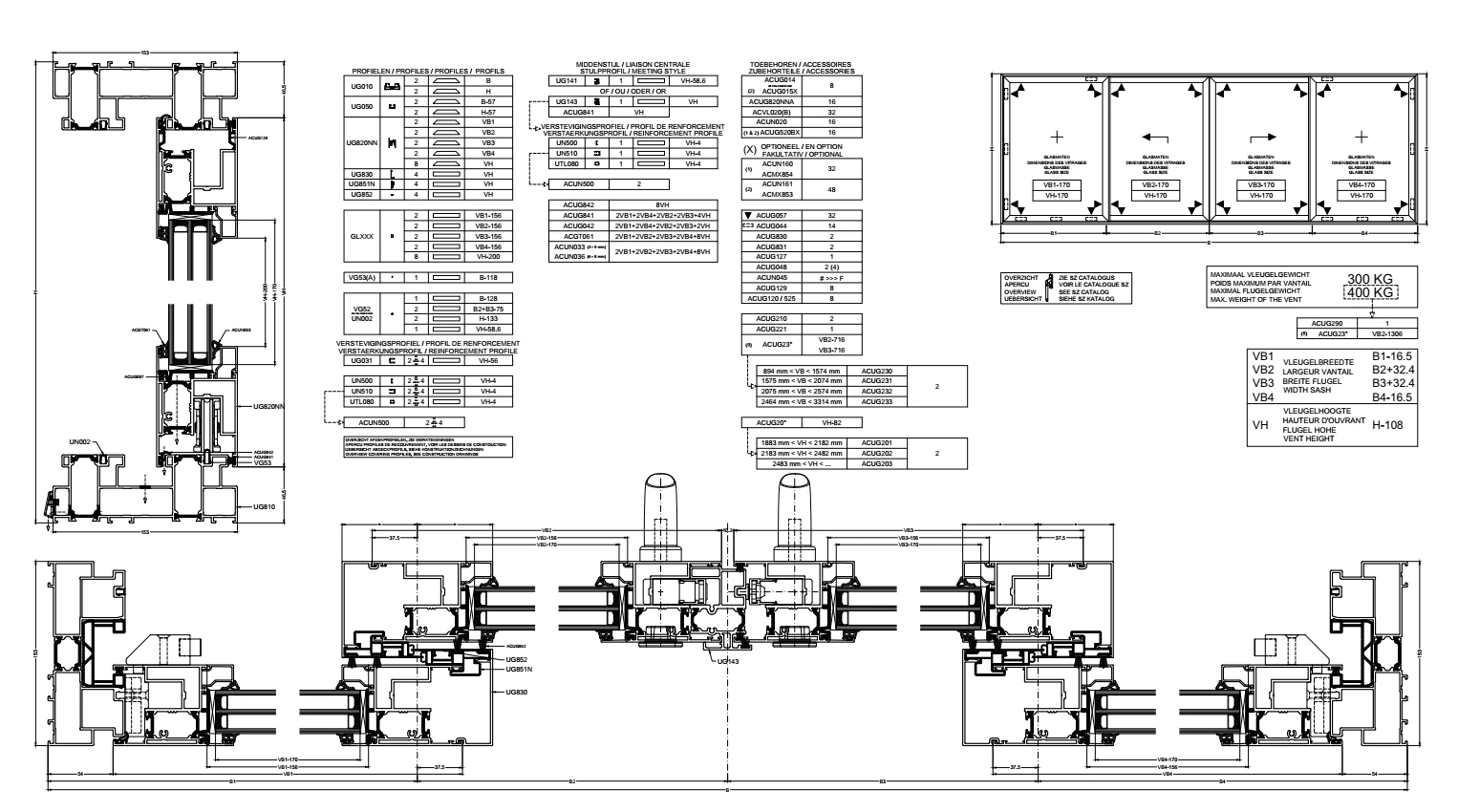

PDF output: Missing parts in drawings in generated pdf in Framemaker 2022

I think this is a problem with the interpretation of the curves. FrameMaker has a problem with parsing drawings with a LOT of curves. It may be that you can fix the issues by refrying, but I had the excact same problem just a couple of months ago and finally gave up and saved the vector drawings as high rez png's. All other methods - saving as eps, svgs, refrying, other versions of AI etc just produced other issues like missing parts of the drawings, wrong border box interpretation etc.

Png works 🙂

I see that artifacts in PDFs from AutoCAD are reported in other contexts as well (not just FM).

It's always worth opening the suspect PDFs in a variety of PDF readers, so see if anything odd develops. Some browsers have built-in readers now.

It's been over a decade since I had to deal with CAD artifacts, but when it's limited to a small number of them, in addition to the Acrobat Pro tip already suggested, consider using a vector editor (such as Adobe Illustrator) to open and re-save.

Can you please turn on your Borders and resubmit the FrameMaker screen capture?

Are these all placed within the same text flow? You'll get the most consistent results when text, tables, and graphics are all in the same text frame/text flow.

Based on the page geometry, and that boundary boxes (rectangles) around the pieces are overlapping, I'm guessing that you are building this by placing images on top of each other, and that the image shown is the top-most graphic.

If I'm correct, my preferred solution would be to create this all (tables plus images) as a single graphic.

Regarding the odd black bar, because PDF is an ISO standard, if your PDF is produced from non-Adobe software, it may not be all you'd hoped it could be. I suggest you break that one into its own discussion.

Hi Bert,

OK. So you have the latest update 17.0.3?

And the file format is PDF.

And the pages with missing objects are always different. Rather mysterious.

How do you create the PDF? Save as PDF? With or without Distiller? Which default PDF settings?

When you print to a PostScript file and convert to PDF, do you get the same issue? Any messages in the Distiller? (This process is the same as Save as PDF with Distiller, but you can see error messages or change PDF settings more easily.)

And how were the imported PDF files created? (Frameexpert's suggestion is definitely a good idea.)

When did this start to happen? Did this work before?

Best regards, Winfried

If you have Acrobat Pro, you could try "refrying" the PDFs. For example, in the latest version, you can choose Menu > Save As Other > Reduced Size PDF. You will get a dialog box, where you can load in one or more PDF files and get some conversion options. Then Acrobat will convert them all at once. I am not sure which options may work for you, but it is worth a try.
