Problem with imported table

  • October 10, 2017
  • 2 replies
  • 313 views

I've imported a table into FM. The problem is that it doesn't respond to changes I'm making in the table designer. Specifically, it's not responding to changes to the alternative row shading and no shading.

    This topic has been closed for replies.
    Correct answer Lynne A. Price

    Edward,

        Rather than overrides to the table format, I suspect your table has been imported with custom shading on the existing cells. Try selected all table cells, bring up the Custom Ruling and Shading pod, make sure the Custom Cell Ruling box is not checked and the Custom Cell Shading box is checked. Then set both Fill and Color to From Table and click Apply. That should remove any custom shading that is masking the shading set by the table format.

        --Lynne

    2 replies

    Lynne A. PriceCorrect answer
    Inspiring
    October 10, 2017

    Edward,

        Rather than overrides to the table format, I suspect your table has been imported with custom shading on the existing cells. Try selected all table cells, bring up the Custom Ruling and Shading pod, make sure the Custom Cell Ruling box is not checked and the Custom Cell Shading box is checked. Then set both Fill and Color to From Table and click Apply. That should remove any custom shading that is masking the shading set by the table format.

        --Lynne

    Barb Binder
    Community Expert
    Community Expert
    October 10, 2017

    I agree, Lynne, and that's the link under my screen shot. Most Word users just can't resist pre-formatting, even when they hire us for our formatting skills!

    ~Barb

    ~Barb at Rocky Mountain Training
    Barb Binder
    Community Expert
    Community Expert
    October 10, 2017

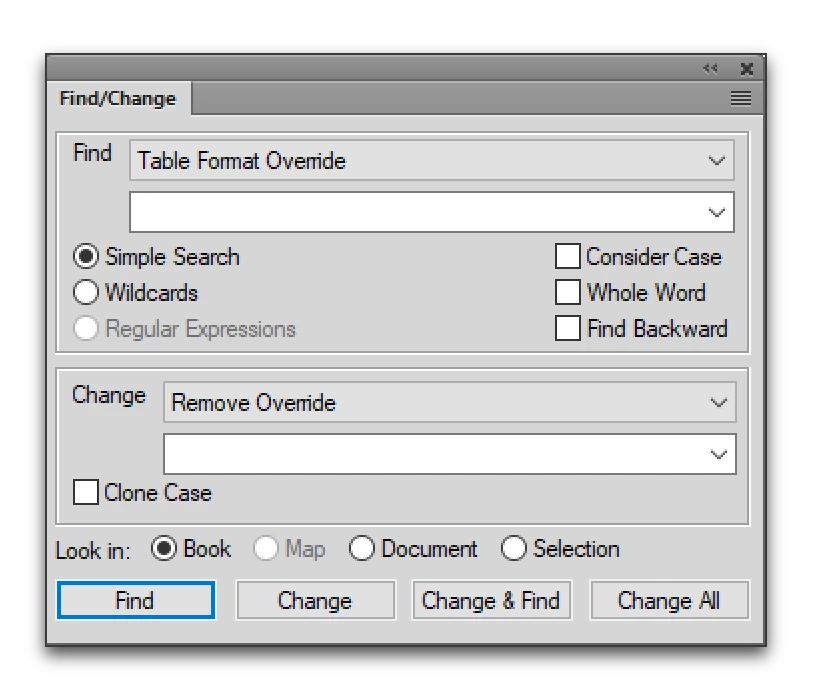

    Tables will come in with overrides. You need to remove the overrides before they will pick up Table Designer formatting. A super-easy way is Edit > Find/Change. Find: Table Format Overrides, Change: Remove Overrides.

    Here is an alternative solution:

    Adobe FrameMaker: Removing Table Overrides - Rocky Mountain Training

    ~Barb

    ~Barb at Rocky Mountain Training
