Producing different documents from the same source file?

  • December 19, 2018
  • 2 replies
  • 2741 views

Hello all,

I write and maintain documentation for two different companies, but the software that I document is used by both.

So, I maintain two different documents which are 80% the same. Structure wise, it is exactly the same, it differs in hardware and technical names, some procedures, etc.

My question is: does Framemaker 2019 (currently using 2017 but planning an upgrade) allow me to, using variables/conditional/anything else possible for all the differences between the two documents, work with only one .fm file, and through it, produce two different PDFs?

Thanks for the help! If my description was not clear enough, just ask me specific questions about it, I will be glad to answer. This would really help me, and I would be grateful for any inputs you may have.


Thanks!

    This topic has been closed for replies.
    Correct answer LinSims

    The ability to use largely the same information for multiple outputs is one of Frame's strengths. Use variables for information that performs the same function in all the outputs but just differ in value, such as company names or product names. Use conditions to mark information that is used by one output but not the other while leaving the information that is common to both unconditioned.

    I usually set up a separate file I call a settings file for each desired output. In it I define the variables specific to that output (such as CN_company_name) and the conditions used in all outputs but with only the outputs I need in the Show pane.

    For example, one setting file would have the CN_company_name variable set to Acme Widgets, the condition AW_acme set to Show and the condition FI_frobs set to Hide.

    The second setting file would have CN_company_name variable set to Frobs Inc, the condition AW_acme set to Hide and the condition FI_frobs set to Show. When I'm ready to create the Acme Widgets document, I import variables and conditions from the Acme_Settings file.  When I want to create the Frobs Inc document, I import the variables and conditions from the Frobs_Settings file.

    2 replies

    LinSims
    Community Expert
    Community Expert
    December 27, 2018

    There are two ways to handle the situation you describe, as far as including or excluding chapter files. One is to set up two separate book files, each of which contain only the files you need for that book. This is MY preferred method.

    The other is to have a single book file with all the files in it, and each time you produce a version of the book, you exclude the files you don't need by right clicking on the chapter file name in the book and selecting Exclude, or, if the last time you produced a version you were excluding files, right clicking on the chapter filename and deselecting Exclude. I don't like this method, since it requires me to remember every single time that I have to either remove or add the exclusion. It does have the advantage that you don't have to create separate generated files, such as TOCs, for each book, but that's not a big deal.

    Variables are actually pretty simple. You create them by clicking Insert > Variables, which opens the Variables pod. The icon to the far left of the Variables pod menu bar lets you add a new variable. You give it a name, which is how it is referred to in the document, and a value, which is your NO/YES. Any place you need either the NO or the YES, you open the Variables pod, find the name, and double-click on it. (The Variables pod is one of the things I keep open all the time, btw. It will not close unless you close it.)

    Remember that Settings file I talked about? That's a separate file that I create for each output from a book file that contains the user variables and the conditions that pertain to that output. In your case, I'd create two settings files. One would have that variable contain the value NO. The other would have the same variable name but assign the value YES. When you want to change the value, you click File > Import > Formats, select Variables and the name of the appropriate settings file, and then click OK. You might want to look into Rick Quatro's Import Special plugin/script, since that gives you finer control of what is and isn't imported and is pretty cheap for the value it adds.

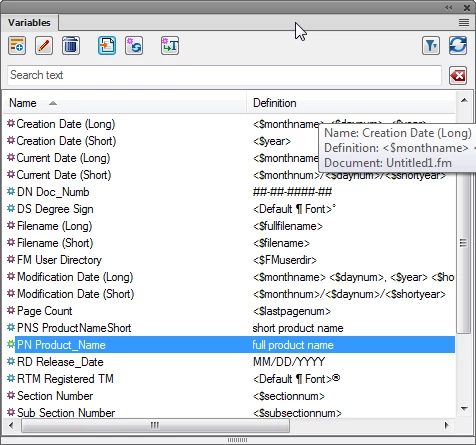

    If you see the image below, the variables with the purple gear next to them are called "system variables", and they are in every Frame document by default. The ones with the blue gear are "user variables", those are the ones you created. The Definition column shows the assigned value. The highlighted variable is one I use for the product name. This isn't likely to change for a document, mind you, but using a variable means I don't have to retype it all the time and avoids spelling errors. You might also notice that I have a variable called DS Degree Sign, which lets me insert a degree symbol without using the ASCII codes or the character palette. Since I have the variables pod open all the time, it's faster.

    All variables, system and user, are editable by clicking the pencil icon on the Variables pod menu bar. Just be careful that what you edit is the Definition field! (I goof on this from time to time, and I've been using Frame for more than 2 decades now!)

    Bob_Niland
    Community Expert
    Community Expert
    December 28, 2018

    Separate parent .book files can also be used for this role, as can Color Views (for limited instances where reflow is not required).

    Participant
    December 28, 2018

    I normally set up a "book of books" that contains all the book files and all the chapter files, generated files, and settings files for every document coming out of a given set of files. Given that rafaeltraquin​ is new to Frame, I thought it best to leave out that additional level of organization.

    LinSims
    Community Expert
    LinSimsCommunity ExpertCorrect answer
    Community Expert
    December 19, 2018

    The ability to use largely the same information for multiple outputs is one of Frame's strengths. Use variables for information that performs the same function in all the outputs but just differ in value, such as company names or product names. Use conditions to mark information that is used by one output but not the other while leaving the information that is common to both unconditioned.

    I usually set up a separate file I call a settings file for each desired output. In it I define the variables specific to that output (such as CN_company_name) and the conditions used in all outputs but with only the outputs I need in the Show pane.

    For example, one setting file would have the CN_company_name variable set to Acme Widgets, the condition AW_acme set to Show and the condition FI_frobs set to Hide.

    The second setting file would have CN_company_name variable set to Frobs Inc, the condition AW_acme set to Hide and the condition FI_frobs set to Show. When I'm ready to create the Acme Widgets document, I import variables and conditions from the Acme_Settings file.  When I want to create the Frobs Inc document, I import the variables and conditions from the Frobs_Settings file.

    rafaeltraquin
    Participant
    December 27, 2018

    Thank you so much for your answer linsims! Only now had I the time to properly reply.

    So, if I have a book made of 10 .fm files, where would I set the variables and conditional text? In a copy of the same book with 10 files? The conditional text, I've been testing it and it its very straightforward to understand. Variables, not so much.


    I would kindly ask you to follow through the following example:

    - Having one document (book) in Framemaker that is made of 10 fm files (Lets say Chapter 1, 2, 3, up to 10)

    - I want to use it to produce a document without Chapter 9 and 10, and in the new document I want to replace all the words "NO" with "YES".

    What's the best way for me to produce these two outputs?

    Thank you for all the help! Just now starting working with Framemaker, and I just love this tool. I can smell the amount of possibilities it allows, but amidst all of the work that has to be delivered, I do not have enough time to explore it properly.

    LinSims
    Community Expert
    Community Expert
    December 27, 2018

    Whoops! I see I forgot to address your condition questions. Best way to answer this is to provide an example.

    You have a book that is being provided to two different customers, Cust_A and Cust_B. Each has information specific to them that must not be seen by the other. In addition, Cust_A gets chapters 1-10, but Cust_B gets only chapters 1-8.

    First, create two book files, one for Cust_A with all 10 chapters and one for Cust_B with only the first 8.

    Create a settings file for each book and set up the same variables and conditions in each.

    The settings file for Cust_A, for example, will have the Cust_Name variable set to Cust_A, and the RESP variable set to YES. The settings file for Cust_B will have the Cust_Name variable set to Cust_B, and the RESP variable set to NO. (Note: I usually add the settings file into the book file and set it to Exclude. That makes sure I don't lose track of which file goes with which book and also makes sure it doesn't get inadvertently printed.)

    BOTH settings files will have a condition named Cust_A and Cust_B. The settings file for Cust_A will have the Cust_A condition set to Show and the Cust_B condition set to Hide. The settings file for Cust_B will have the Cust_A condition set to Hide and the Cust_B condition set to Show. (Make sure you add some color or something to the condition style so it's obvious at a glance which text is seen by which customer.) The Show Indicators option should NOT be selected in the settings file only, because when you go to final you don't want it to be obvious which text has been conditioned.

    When you are working in the chapter files, make sure that BOTH conditions are set to Show (or use the Show All option) and have the Show Indicators option selected so you can see what's there for both customers. When you go to final, select all the files in the book (except the settings file), select File > Import > Formats, choose the appropriate settings file, select the Variables and Conditions checkboxes, and click Import. That will import the variable definitions from the settings file, and apply the condition settings from the settings file.
