Renaming cross reference link

Question

Hello,

I have documentation for my code that I maintain in Doxygen (general description + API reference). Our documentation team working with FrameMaker so I generate an XML output for them which were imported to FrameMaker using some template file which I do not fully understand. We reached good maturity and it works well except I cannot generate internal references with a custom naming. i.e. with the XML input below :

<ref refid="group__ip__class_1gaad23d5c191f1ede03638140cb21ca31f" kindref="member">actions</ref>

I would expect that link text will be action, but currently, action just attached as a text after the link with link text taken from element referenced by refid.

I have found many ways to control a text of link text here, but all of them as far as I understand working with target link text and do not provide a way for the custom text from the ref element.

I can modify my XML in a way it's needed and can manipulate templates in FrameMaker (almost 0 knowledge here).
Any suggestions will be greatly appreciated.

Thanks, Ilya.

frameexpert · Answer

Typically, in a FrameMaker cross-reference, you do not directly specify the test that you want to appear as the cross-reference text. You use building-blocks in your cross-reference format that will determine which text from the target will appear. For example, the <$elemtext> building block displays the target element's text as the cross-reference text.

If you want to specify your own text that may be different from the target, you could use the <$attribute[attrname]> building block and specify the desired target text (for example, "actions") as an attribute value. In this case, you could have an attribute on your target element called xref-text. Then the building block for your cross-reference format would be <$attribute[xref-text]> and you would leave it out of your <ref> element.

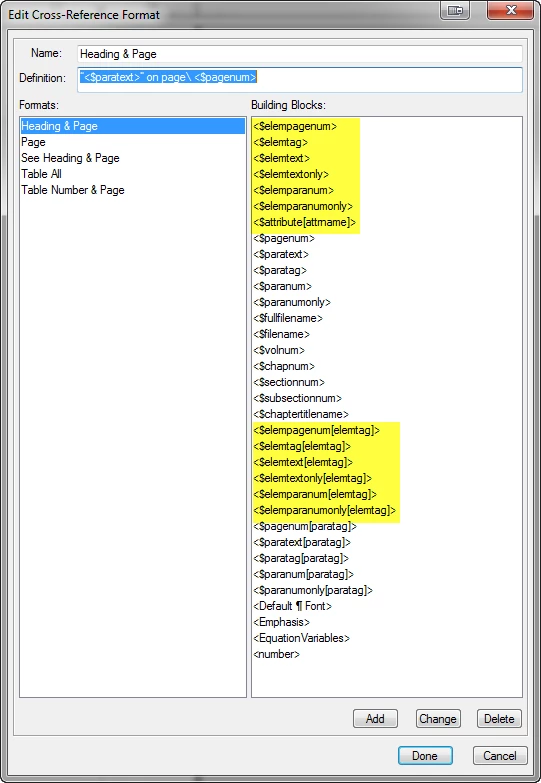

Here is a list of possible building blocks with element and attribute types highlighted. If you need further help setting this up, please let us know. Thanks.
