SVG does not display correctly

Forum|Forum|7 years ago
July 6, 2018
1 reply
605 views

I am having trouble using an SVG in a document. FrameMaker seems to mess up part of the SVG when I import it. Below is a picture of the SVG in FrameMaker and in Chrome. It displays correctly in Chrome. Any help or advice to make this work would be much appreciated.

Thanks,

Peter

This topic has been closed for replies.

Jeff_Coatsworth

Community Expert

What version of FM and what are you using to create the image?

G

generalm43082066Author

Known Participant

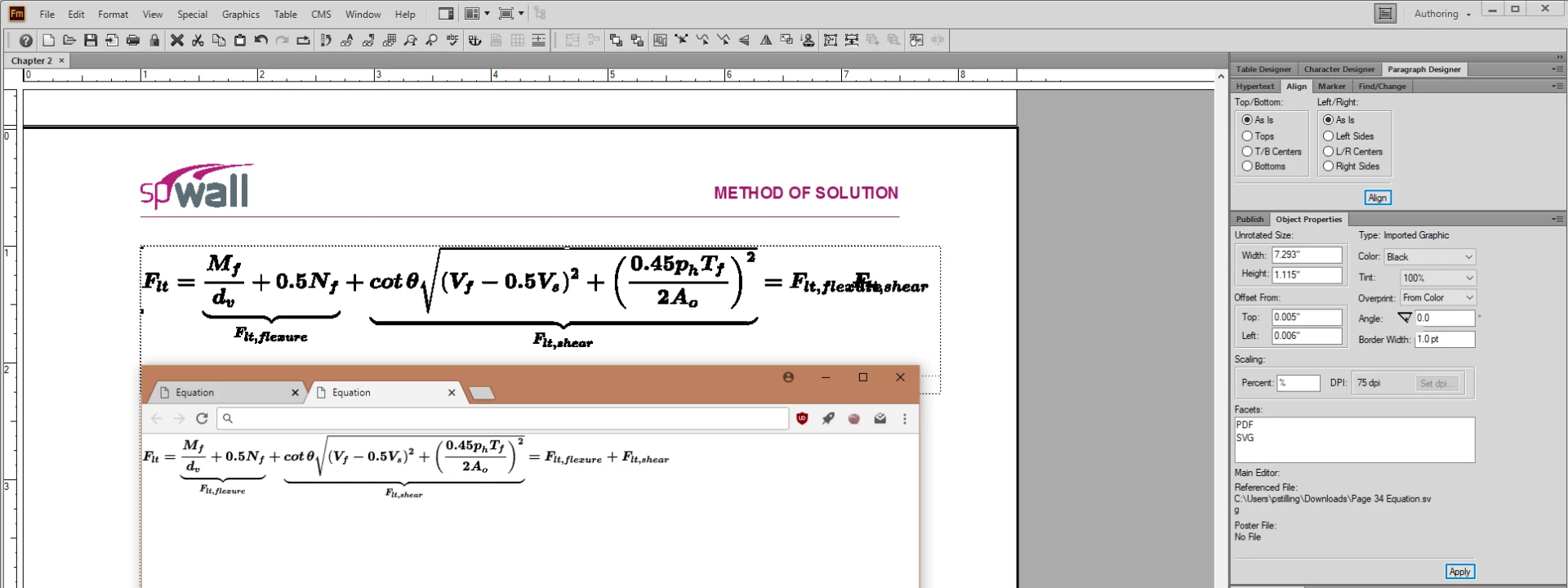

I am using FrameMaker Version 13.0.5.547. The SVG is generated from MathML using MathMLCloud.org. I included the SVG being displayed in Chrome and FrameMaker, you can see FrameMaker messes up the subscript at the end of the equation.

Jeff_Coatsworth

Community Expert

That sounds like FM2015. Are you running on Win 10 version 1803? There were reported issues having to do with equation clipping that were a side effect of the ver. 1803 PDF issue. When they rolled back to an earlier 1709 build, the issue stopped occurring. IIRC someone else tried out the interim FM2015 fix for the 1803 PDF issue and that also fixed their equation clipping issue.
