Table Formatting

Here is what is possible with scripting. To try it, copy the code to a text file and save it with a .jsx extension. Control-click on the text frame containing the table to select it and choose File > Script > Run and select the script. It will resize the height of the text frame to match the table's height. The script could be enhanced to run automatically, etc.

A note to other scripters: See how I have broken the script down into discreet functions, each having its own task. Please let me know if you have any questions or comments.

#target framemaker

main ();

function main () {

    var doc;

    doc = app.ActiveDoc;
    if (doc.ObjectValid () === 1) {
        processDoc (doc);
    }
}

function processDoc (doc) {

    var textFrame, tbl;

    // See if a text frame without a named flow is selected.
    textFrame = doc.FirstSelectedGraphicInDoc;
    if ((textFrame.ObjectValid () === 1) && (textFrame.Flow.Name === "")) {
        // Get the table object in the text frame.
        tbl = getTbl (textFrame, doc);
        if (tbl) {
            processTblFrame (tbl, textFrame, doc);
        }
    }
}

function processTblFrame (tbl, textFrame, doc) {

    var PT, row, height;

    // Constant for point value.
    PT = 65536;

    // Calculate the location of the bottom of the last row,
    // relative to the top of the text frame.
    row = tbl.LastRowInTbl;
    height = (row.LocY + row.Height) - textFrame.LocY;

    // Resize the text frame's height.
    textFrame.Height = height;
}

function getTbl (textFrame, doc) {

    var textList, tbl;

    textList = textFrame.GetText (Constants.FTI_TblAnchor);
    if (textList.length === 1) {
        tbl = textList[0].obj;
        return tbl;
    }
}

I would create 2 copies of the table in 2 separate frames - one with all you want to show & the second with the cells truncated.

Hi, @Quân2929 ,

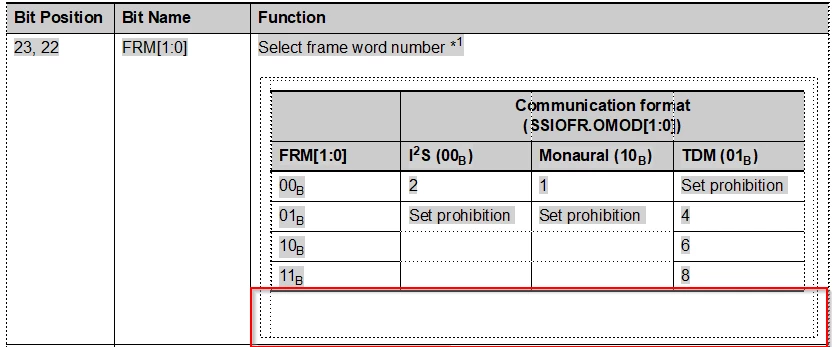

looking at your screenshot I think you want the surrounding text-frame to automatically get smaller as content gets hidden.

That does not happen as a text-frame has a specified size and will not change dynamically.

You can change the size of the text-frame manually or by using a script.

Regards

Stephan

Hi Quan,

Which anchor gets the condition? The anchor of the anchored frame? Or the table?

The anchored frame should get the condition.

If the space comes from an empty paragraph, then you have to apply the condition also to the paragraph mark of the previous paragraph.

Best regards, Winfried
