Known Participant

Answered

vertical text alignment within text frame

11 replies
2347 views
Translate

How to align texts vertically and horizontally with in a text frame?

This topic is closed to new replies. Start a new post to keep the conversation going.

Barb BinderCorrect answer

Community Expert

Thanks for clarifying, Vinoth:

For that situation, I agree with Bob—add a single cell table (1 row, 1 column, 0 heading rows, 0 footing rows) to the frame. Set up a table style that will remove the visible border and table title and then define a paragraph style with the horizontal alignment set to Center in Paragraph Designer > Basic and the vertical alignment set to Middle in Paragraph Designer > Table Cell Properties.

~Barb

~Barb at Rocky Mountain Training

W

Winfried Reng

Community Expert

Hi,

Sometimes I would also need graphics labels which I could align to the top or center of their text frames.

This would greatly reduce my clean-up after translations. Very often translated text is shorter and longer, and I have to rearrange my labels. Vertical alignment would help.

Putting the labels into a table is much too complex.

When you agree, please vote for my feature request:

https://tracker.adobe.com/#/view/FRMAKER-9274

Best regards

Winfried

Translate

Barb Binder

Community Expert

Voted! Thanks for adding the feature request, Winfried.

~Barb

Translate

~Barb at Rocky Mountain Training

Barb Binder

Correct answer

Community Expert

Thanks for clarifying, Vinoth:

For that situation, I agree with Bob—add a single cell table (1 row, 1 column, 0 heading rows, 0 footing rows) to the frame. Set up a table style that will remove the visible border and table title and then define a paragraph style with the horizontal alignment set to Center in Paragraph Designer > Basic and the vertical alignment set to Middle in Paragraph Designer > Table Cell Properties.

~Barb

Translate

~Barb at Rocky Mountain Training

V

vinothk92107740Author

Known Participant

thanks for the solution.

Translate

Barb Binder

Community Expert

Hi Vinoth:

How to align texts vertically and horizontally with in a text frame?

Horizontal alignment is handled via the Paragraph Designer > Basic properties on a style-by-style basis.

Tell us more about your vertical alignment requirements. Are you trying to center-align text vertically within a frame or are you trying to justify multiple lines within a frame, so that the first line is at the top of the frame, the last line is at the bottom and FrameMaker feathers the spacing of all the lines in between? The latter is a feature in FrameMaker using Format > Page Layout > Line Layout > Feather.

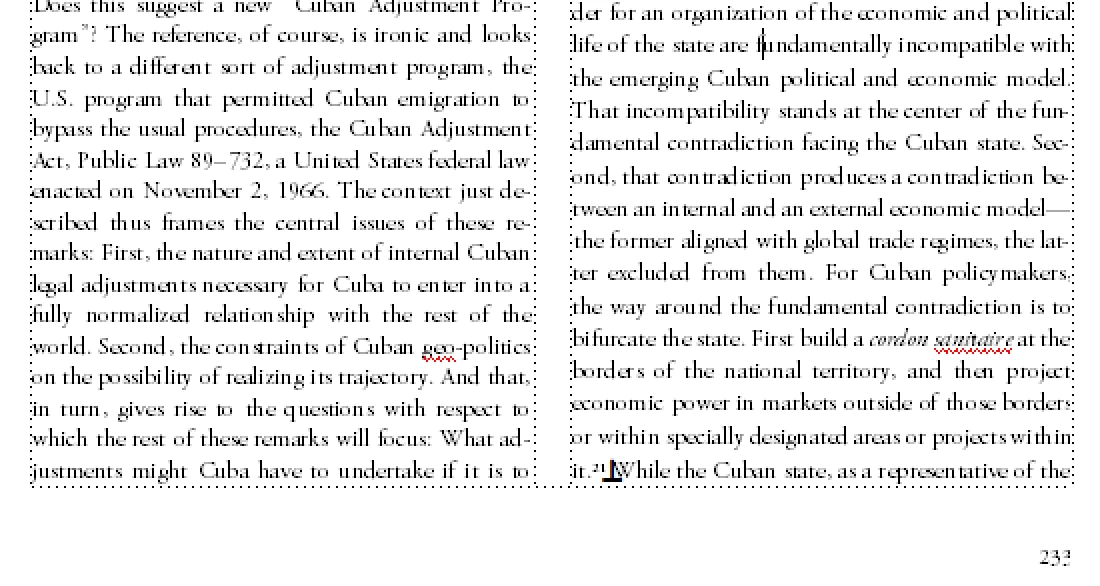

Before enabling feather:

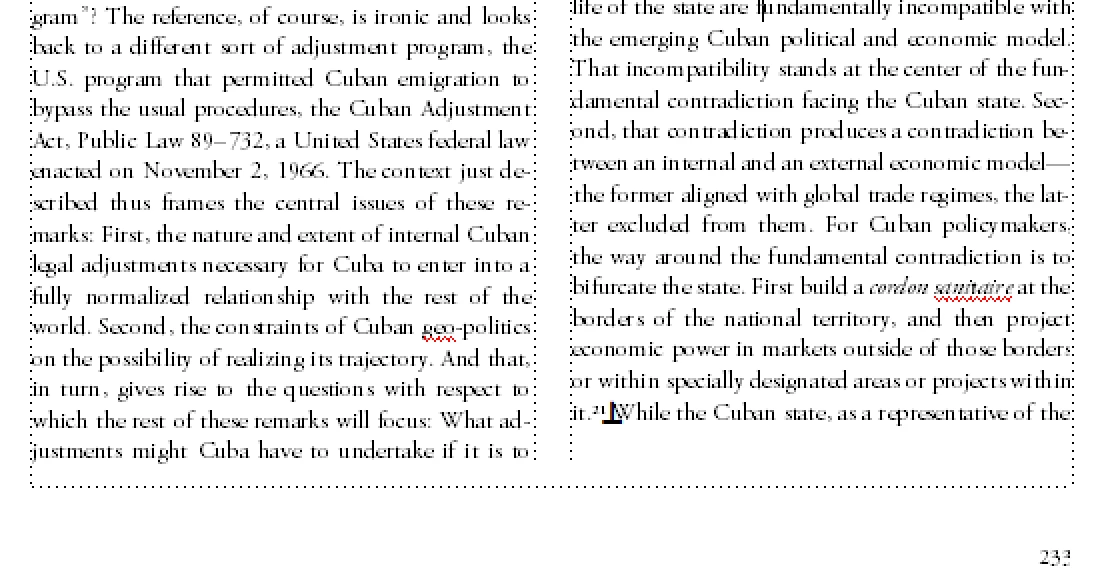

After enabling feather:

~Barb

Translate

~Barb at Rocky Mountain Training

V

vinothk92107740Author

Known Participant

Hi Barb,

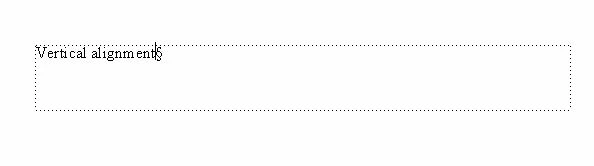

see the above pic. here i can control horizontal alignment by using paragrah designer but my requirement is need to align text vertically like center, bottom. in indesign it is possible so is there any way to do in framemaker??
