About Illustrator Actions

  • January 22, 2017
  • 1 reply
  • 172 views

I have a vector object contains width 27mm & height 42mm I want a rectangle 20mm more in width and height of the selected object like path or vector or text object using actions

    This topic has been closed for replies.

    1 reply

    Doug A Roberts
    Community Expert
    Doug A RobertsCommunity Expert
    Community Expert
    January 23, 2017

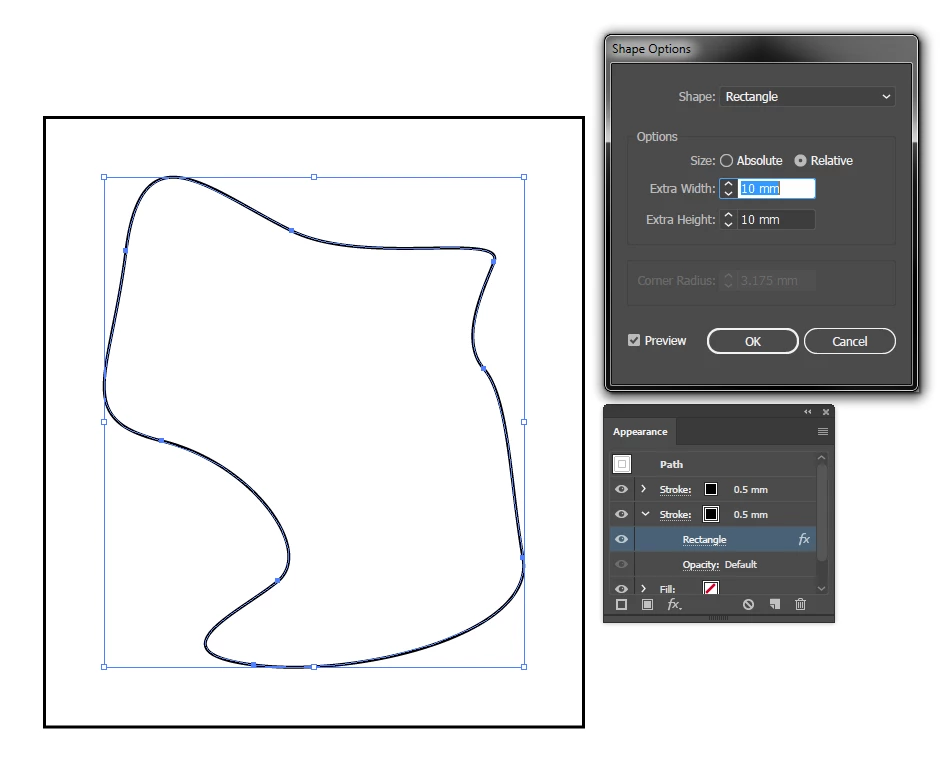

    you could set up an appearance with and extra stroke that uses the Convert to Shape > Rectangle effect, with a relative size of +20mm in each dimension:

    you could then apply this to other shapes via an action if you want. or just save it as a graphic style and click on it.

    if you want it to be a real shape as opposed to an appearance, include object > expand appearance in the action.
