ADDING DESIGNED SYMBOL TO GRAPHICS ON 3D AND MATERIAL

Forum|Forum|11 months ago
August 10, 2025
3 replies
889 views

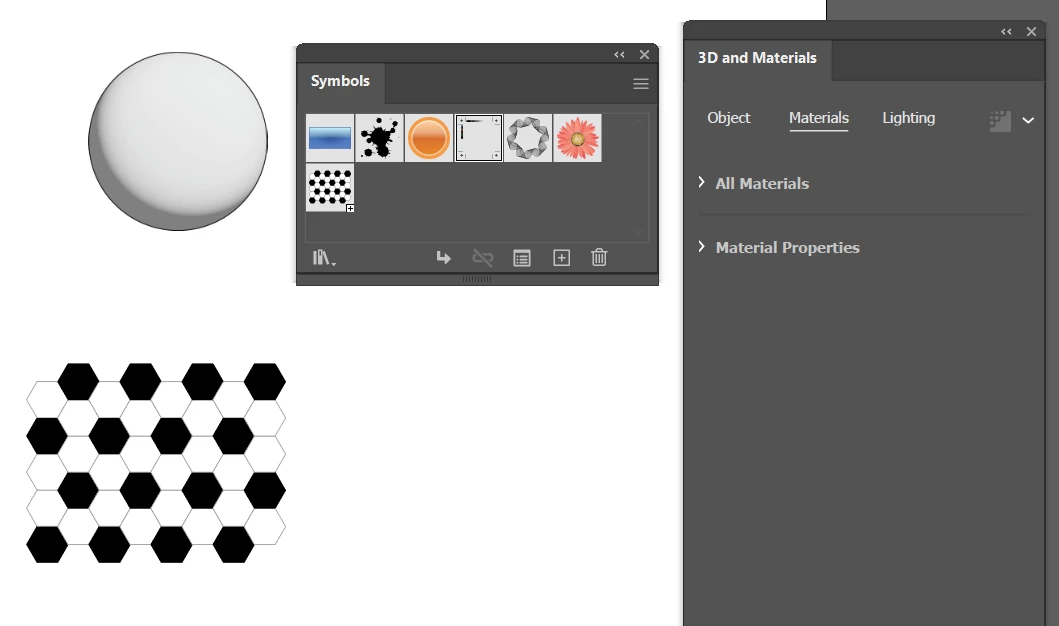

How do i add my newly symbol design to 3D and Materials under graphics using adobe illustrator, when i click on material tab i only find All Material and Material properties i do not see Materia Graphics, where my symbols designs can be added to graphics, i also did not see ad graphics.

Draw and design

Pariah Burke

Community Expert

Damn. I just uninstalled Adobe Illustrator 2022 and 2023 a couple of weeks ago, and there's no way to get them back.

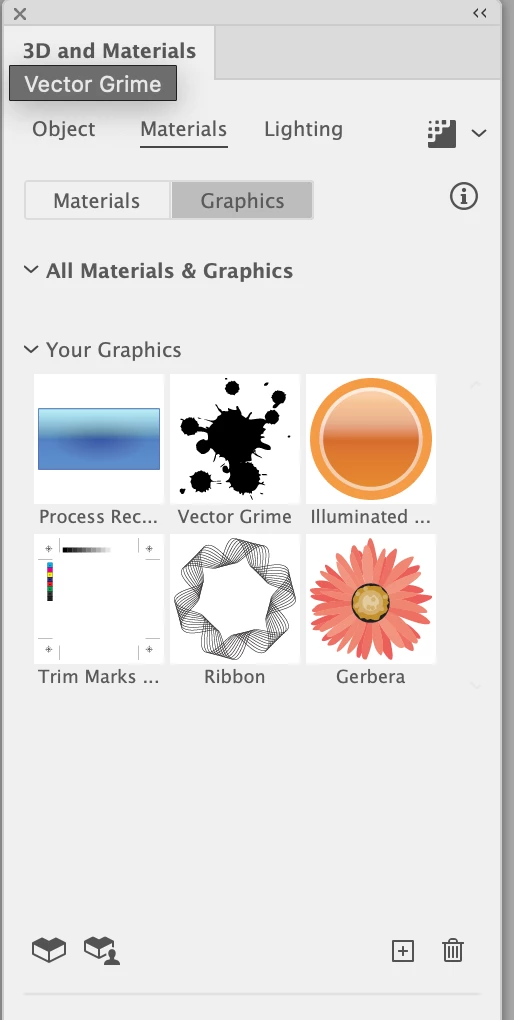

You should have a Graphics sub tab under Materials, but I can't verify that was available in AI '22 as it is in '24 (below) and '25.

The problem could also be document-specific.

Please close all documents
Quit Adobe Illustrator
Restart your computer, leaving all other applications closed
Launch Illustrator
Start a new document using the Web tab "Common" 1366 x 768 px preset.
Create a simple rectangle with default fill and stroke (white and black).
Go to Effect > 3D and Materials > Materials...
If the Graphics sub tab appears, click it; you should see your symbols. If it doesn't, click the plus button at the bottom of the materials list and choose Add as Single Graphic, which should then show your symbols.

If that process doesn't work, you might need to get Illustrator updated, as @Monika Gause suggested.

Monika Gause

Community Expert

I have checked it out in that version and it was available, but I have a rather late version of 2022.

S

SirNattyAuthor

Participating Frequently

Adobe Illustrator 2022, i followed several steps on youtube, i created my footbal design then added the design to symbol, created my circle then inflate, needed to add my design through graphics under 3D and Material but i didnt find graphics beside material under 3D and Material, others have symbol designs added to graphics under 3D and Material beside Material
