Adding new arrowhead style on Stroke control panel

Question

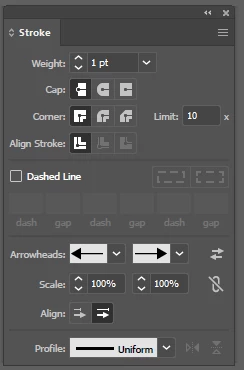

I need to add a new arrowhead style on stroke control panel that currenly let me choose from 39 different arrowstyles.

Would you please be so kind to give me the step by step procedure to do so?

I guessed was sufficient to add new arrow

I'm not the administrator.

Thanks and regards

Doug A Roberts · Accepted Answer

Thank you a lot for your answer , I saw this post but spoke about Mac/Apple version. I tried to follow instructions but nothing happens

stefanogismondi wrote
Thank you a lot for your answer , I saw this post but spoke about Mac/Apple version. I tried to follow instructions but nothing happens

On Windows, the arrowheads files is located at C:\Program Files\Adobe\Adobe Illustrator CC 2019\Support Files\Required\Resources\en_GB

Follow the instructions in it, then save your version of the file at C:\Program Files\Adobe\Adobe Illustrator CC 2019\Plug-ins

Ton Frederiks · Answer

stefanogismondi wroteI'm not the administrator. You need to have Administrator rights.According to the Help file the procedure is like this:https://helpx.adobe.com/illustrator/using/stroke-object.htmlCustomize arrowheadsTo define custom arrowheads, open the Arrowheads.ai file, which is located under ShowPackageContent\Required\Resources\\ (for Mac) and \Support Files\Required\Resources\\ (for Windows). Follow the instructions in the file to create custom arrowheads.Place the updated Arrowheads.ai file at: \Plug-ins\ and avoid replacing the existing Arrowheads.ai file.
