Hi.

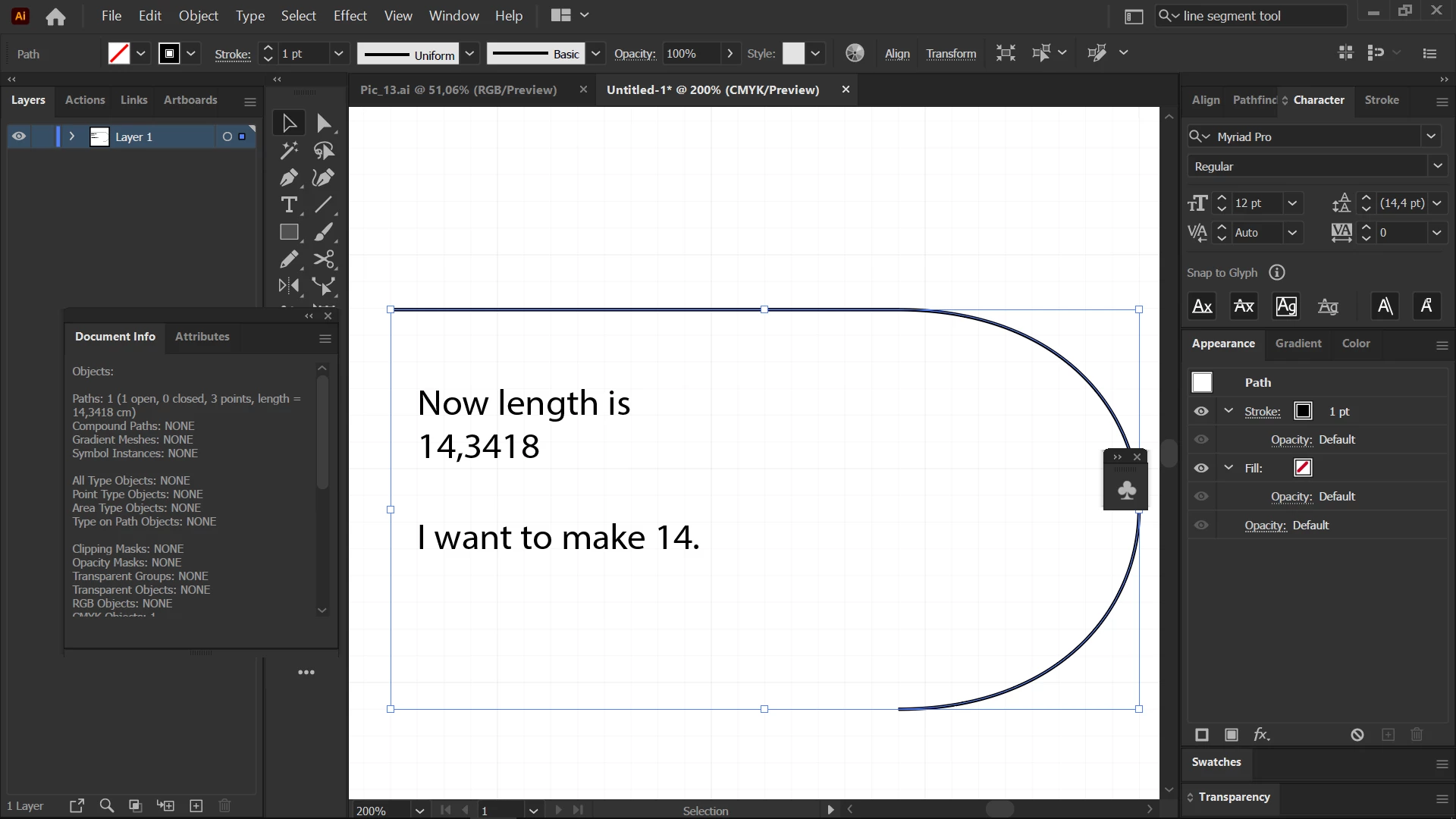

Is there the way to adjustment the length of the curved line.





This topic has been closed for replies.

5 replies

Jacob Bugge
Community Expert
Community Expert
January 13, 2021

Be,



Just replace pt by cm after the number in the Dash box to use that as the unit.



You will get points as the default unit for many things like dashes, gaps, stroke weight, font size; but you can get them in any of the other units by inserting it instead.



Berezin_Illustrator
Known Participant
January 13, 2021

It is amazing idea

Jacob Bugge
Community Expert
Community Expert
January 12, 2021

Be,



It rather depends on how/where you wish to have it shortened, and whether it must be actually shortened rather than appear shortened.



Presumably, this thread would never even be started if you wished a downscaling.



If you wish to shorten at one of the ends and if you just wish it to appear shorter, you can simply apply Dashed Line in the Stroke palette with the (first) Dash set to 14 cm; if needed you can Click the end to be shortened with the Pen Tool to reverse the path direction.





Berezin_Illustrator
Known Participant
January 13, 2021

"you can simply apply Dashed Line in the Stroke palette with the (first) Dash set to 14 cm"



But Dush size in "pt" not "cm"

How I can change it?

Tom Winkelmann
Inspiring
January 12, 2021

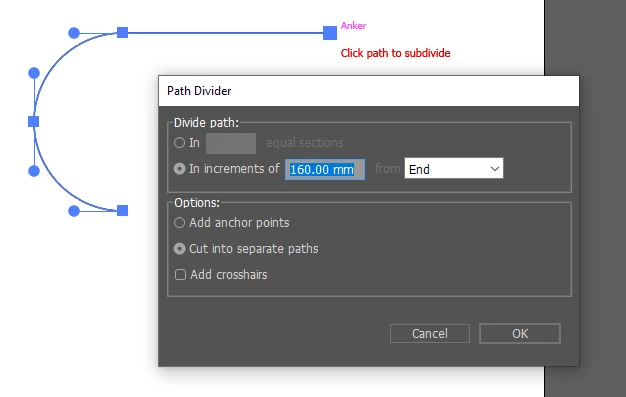

There is also a plugin called "HotDoor CadTools" with a tool called "Path Divider"...

Berezin_Illustrator
Known Participant
January 13, 2021

I will try it. Thanks



Kurt Gold
Community Expert
Community Expert
January 12, 2021

It could be done by creating and applying a Pattern brush or an Art Brush, but that's rather cumbersome and not 100 % precise most of the time.



Doug A Roberts
Community Expert
Community Expert
January 12, 2021

I'm not aware of a way outside of you doing the maths yourself.

Berezin_Illustrator
Known Participant
January 12, 2021

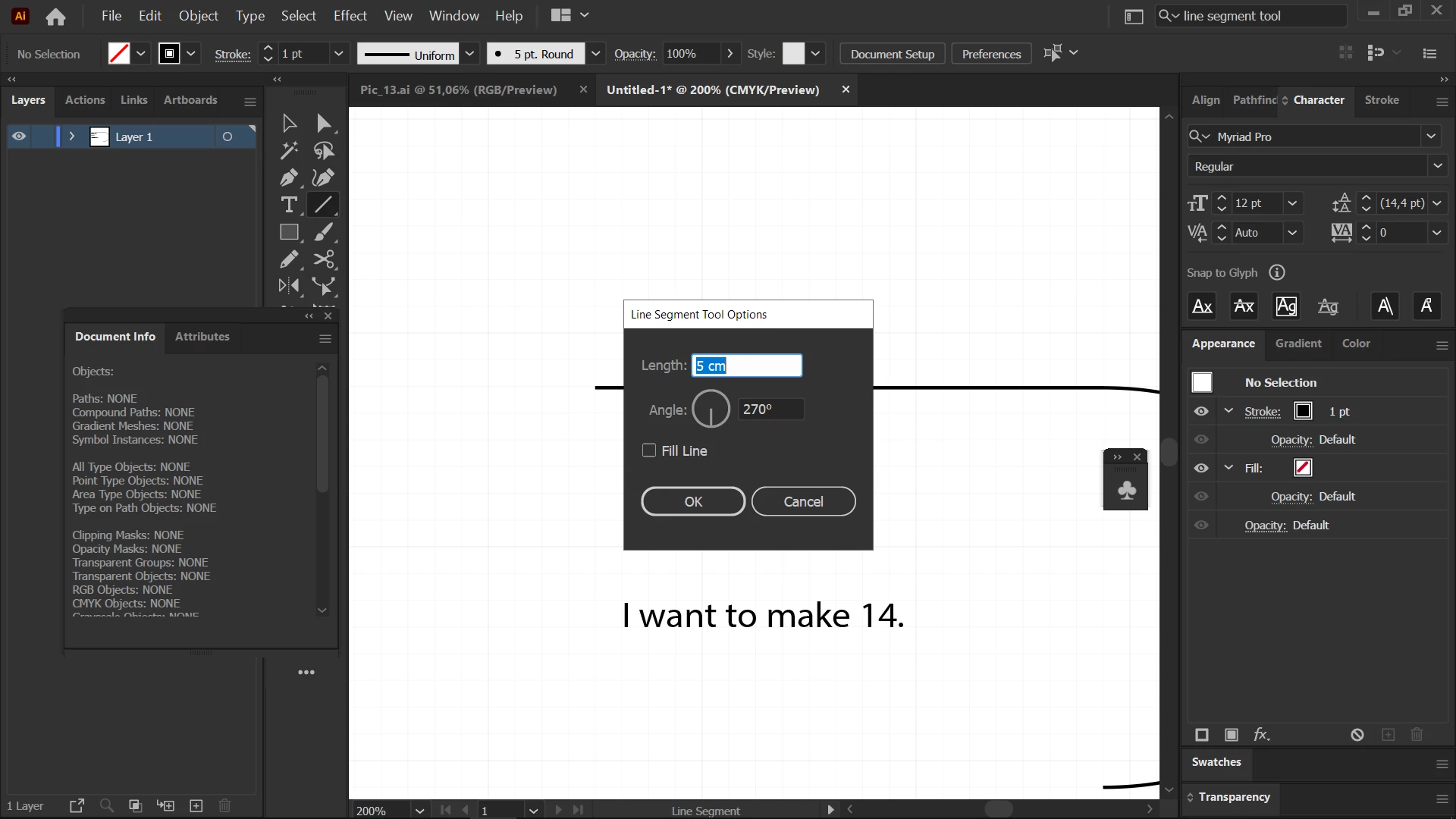

Just it would be good to have something like " Line Segment Tool Option".
