Adobe illustrator新Bug？尺寸两个数值不一样，我究竟以哪一个为准?

  • October 10, 2017
  • 2 replies
  • 1853 views

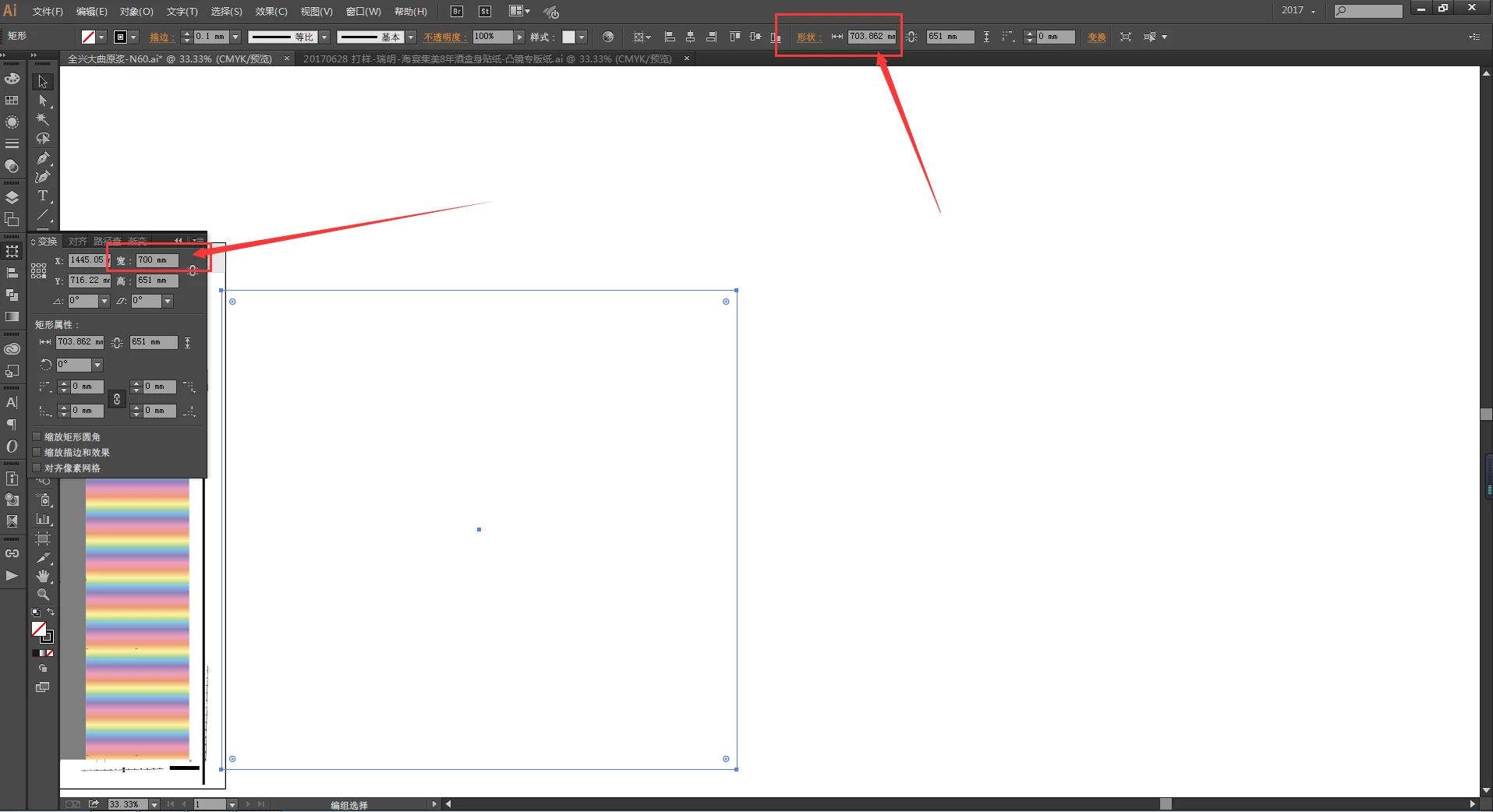

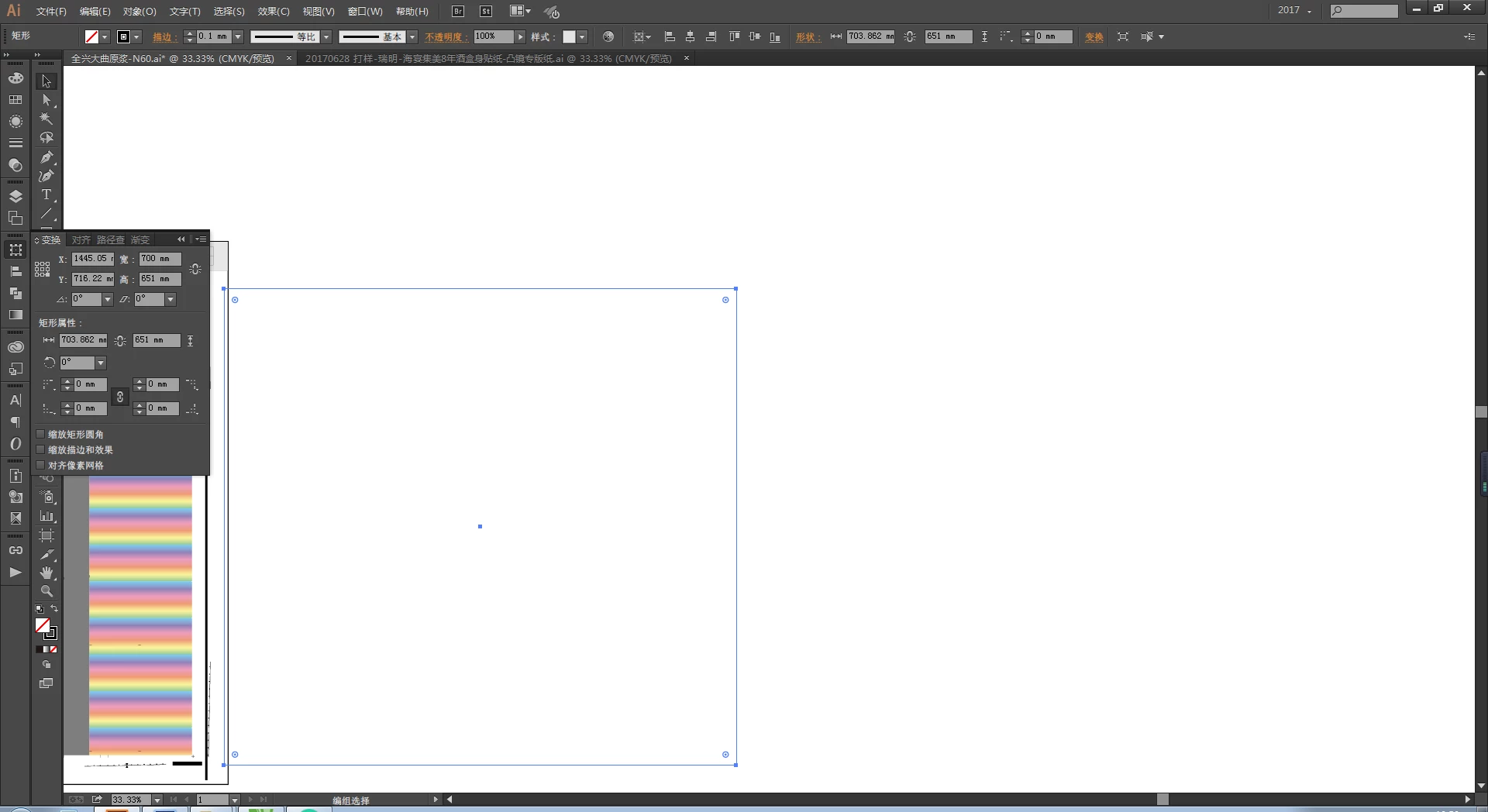

Adobe illustrator 新Bug？尺寸两个数值不一样，我究竟以哪一个为准，AI新BUG反馈

!

This topic has been closed for replies.
Correct answer Monika Gause

Those two are not supposed tobe the same.

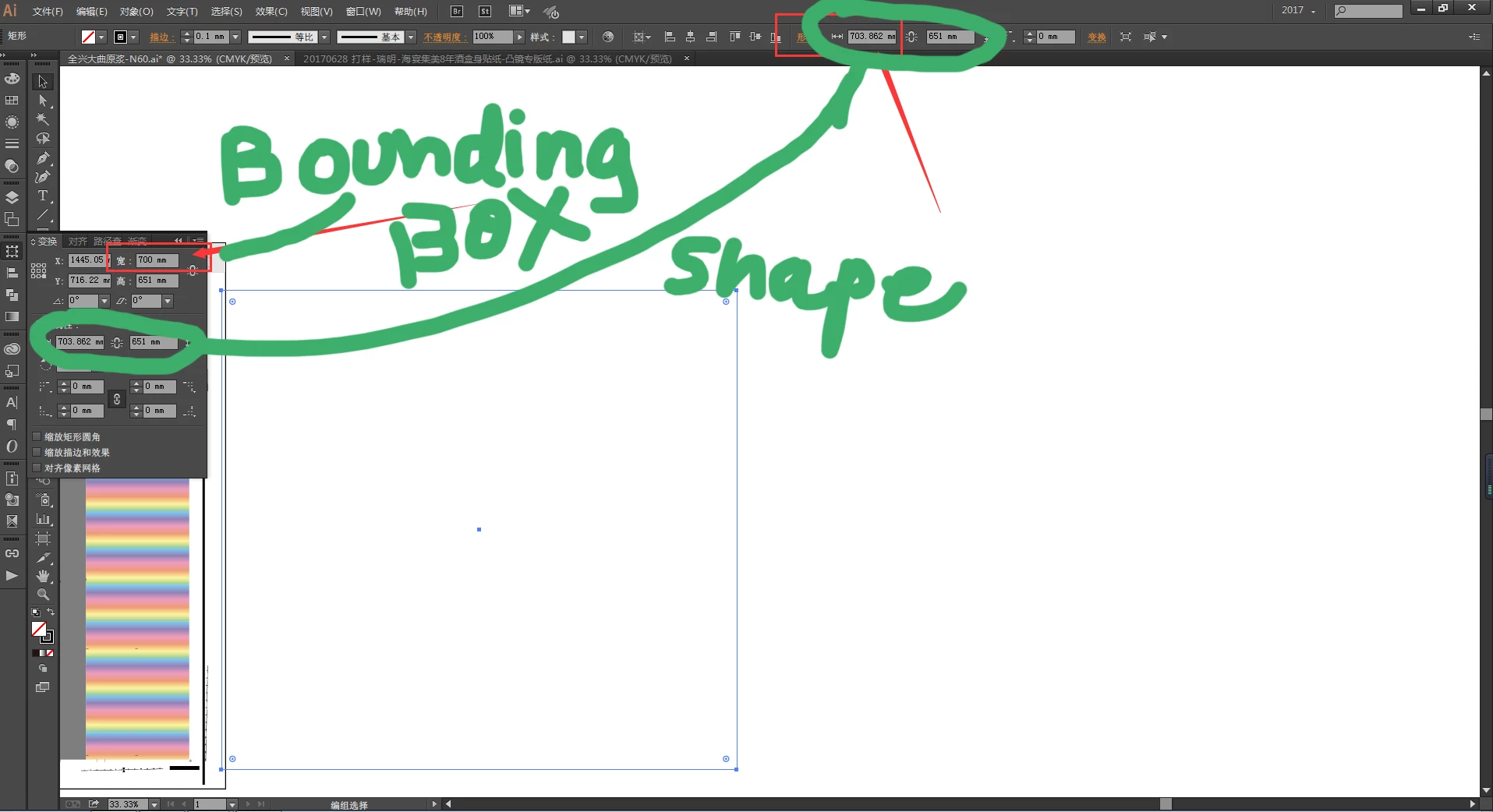

The highlighted one in the transform panel is the bounding box while the other one is the shape property

2 replies

何冠华Knight
何冠华KnightAuthor
Participating Frequently
July 3, 2018

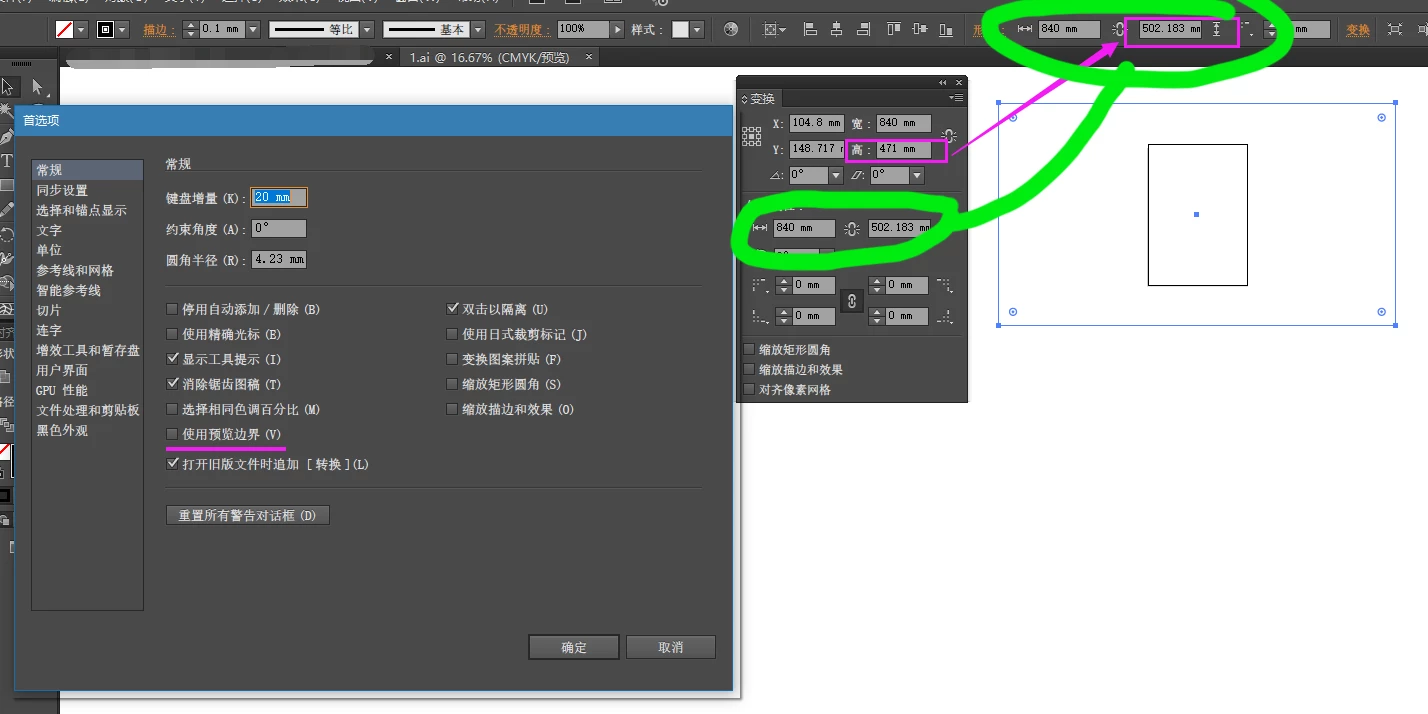

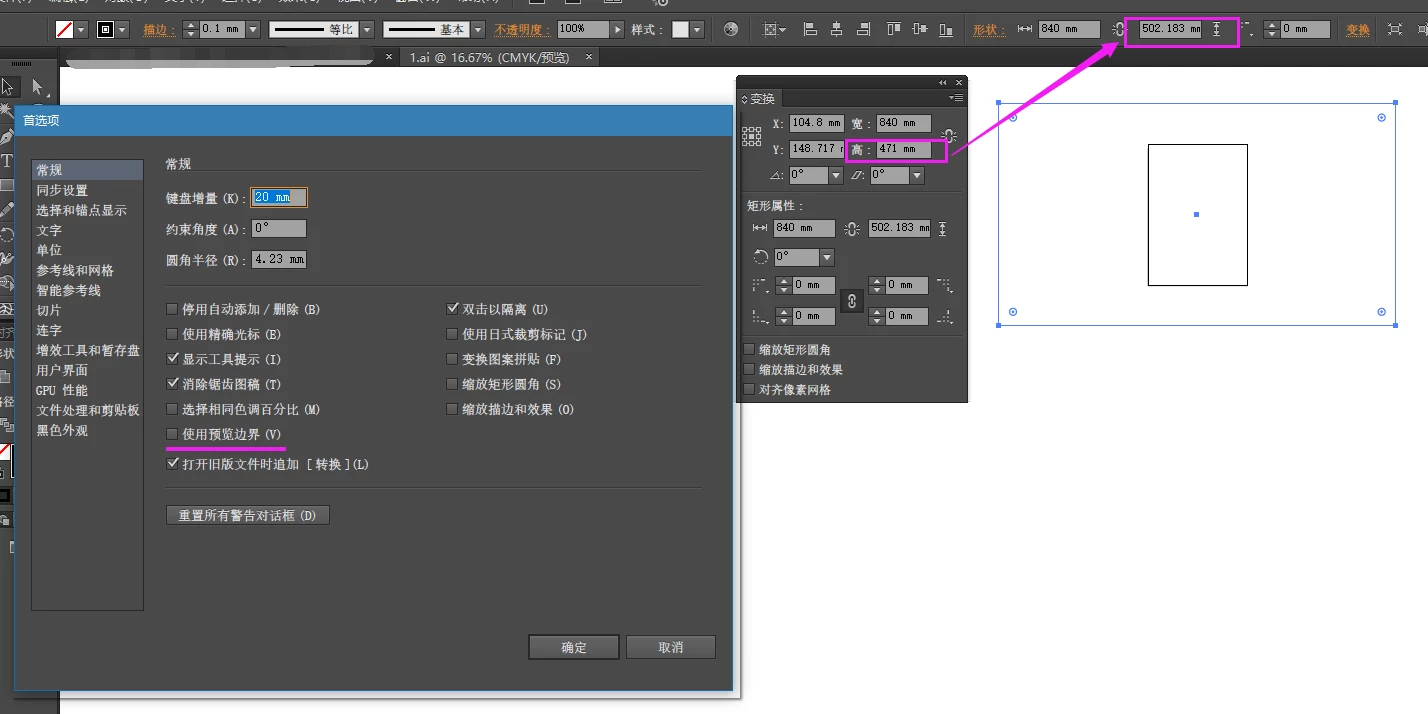

look ithttps://pan.baidu.com/s/1-7ZHSMFv1LHm-19a1HRXpQ

Monika Gause
Community Expert
Monika GauseCommunity Expert
Community Expert
July 3, 2018

何冠华Knight
何冠华KnightAuthor
Participating Frequently
July 4, 2018

But why are the two Numbers different

Monika Gause
Community Expert
Monika GauseCommunity ExpertCorrect answer
Community Expert
October 10, 2017

Those two are not supposed tobe the same.

The highlighted one in the transform panel is the bounding box while the other one is the shape property

何冠华Knight
何冠华KnightAuthor
Participating Frequently
May 22, 2018

But one value is the same, and the other one is different, and if two are different, is that the number that contains the stroke?
但是一个数值是一样的，另一个缺不一样，如果两个都不一样才是包含描边的数值吧？
Sorry, my English is not good, I can only use the translation software to translate English to you.

Monika Gause
Community Expert
Monika GauseCommunity Expert
Community Expert
May 22, 2018

The bounding box may contain:

- strokes

- brushes

- effects

- rotation of the object

Those may cause differences in one direction or both directions. Without knowing details about the object: impossible to tell.

In Preferences > General you can turn off "Use Preview bounds" and then strokes and effects and brushes are excluded from the values.
