Any way to turn off editing with drawing tools?

  • October 25, 2017
  • 4 replies
  • 484 views

Scenario: I draw a rectangle, then switch to the Ellipse tool and hold Option so I can draw from the centre. I want to draw a circle from the centre of one of the corners of the rectangle I just drew. If the rectangle is selected then I end up resizing the rectangle, even though the active tool is the Ellipse tool. I need to hold Command and click to deselect the rectangle before drawing the circle. If I continue to position shapes based on the previously drawn shape I need to constantly deselect the path I just drew, which adds two once unnecessary steps. Illustrator has become harder and less convenient to use (which, let’s face it, we have all come to expect by now).

Is there any way to turn this frustrating feature off?

    This topic has been closed for replies.

    4 replies

    Ton Frederiks
    Community Expert
    Community Expert
    October 26, 2017

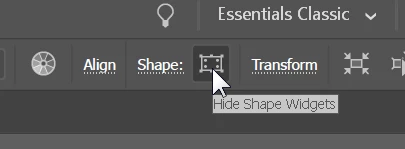

    Hide Bounding Box is another way.

    macpawel
    Participating Frequently
    October 26, 2017

    or you can draw Rectangle  and press CTRL (Cmd) key to temporary choose Selection tool. Them click outside your rectangle to deselect it and release key on your keyboard. Start drawing Elipse from center

    pawe

    Ray Yorkshire
    Participating Frequently
    October 26, 2017

    Maybe

    and/ or

    View > Hide Corner Widget

    I aint sure about the difference is so I just have them both hidden

    Mike_Gondek10189183
    Community Expert
    Community Expert
    October 25, 2017

    Yes that is what happens, best I can do is offer an alternative you might like

    1. Draw rectangle
    2. Switch to elipse tool
    3. Away from rectangle click down and hold, drawing your eclipse to size
    4. add spacebar and move your elipse to snap its center point to rectangle corner
    5. Release mouse button
