Architectural building plan

  • May 2, 2024
  • 3 replies
  • 1373 views

I need to design a club building in the USA well enough to show options.  The plan will print on letter size, but I will present it from laptop onto big-screen tv for the members, so I can show it with different layers of terrain from Google maps.  Need setup instructions so that I have usable scale and so forth; the videos I've found online so far are metric, and we would need feet and inches or the members won't understand.  Further, my plan is to use pre-built commercial buildings, 2 of them to be hauled in (maybe 12'x40' each), then a pole building connecting them to be built later with a roof spanning all three, supported by arched trusses, and the floor by flat trusses, and the whole of about 40' square made weathertight.  A few years ago I did well in an Adobe Illustrator class, but don't have time to completely retrain myself; can fake it if I can get the setup right to start off with (probably... or, I can ask you some more?).  If they like the scheme, we'll take my plan to the portable-building professionals to do up right.  I mainly need to get the proportions correct -- how many tables will fit in the dining area, etc.  And I'd like to do elevations for the persuasive pitch.

This topic has been closed for replies.
Correct answer Monika Gause

Please log in to the forum's web interface and then embed your sketch in a post.



You do not want to display a scale in the drawing right? You want absolute measurements? Then the scale factor is irrelevant. Just draw the thing, put your measurements into it and print it at the desired size.

3 replies

B
Community Expert
Bobby HendersonCommunity Expert
Community Expert
May 3, 2024

Do you have anything like a site plan where the club house would be built? I assume this is going to be something added to an existing property, correct? A site plan would take out a lot of the numerical guess work.



Google Earth has a measuring tool that's reasonably good (and it lists measurements in any unit needed). Those measurements will allow terrain screen shots to be set at an accurate scale. If the property where the club house would be built isn't very large then using screen shots from Google Maps/Earth might be good enough. The overhead imagery from Google Earth and Google Maps isn't perfectly flat, which becomes a problem when trying to stitch together multiple screen shot images for larger/higher resolution terrain images. Bing Maps works better for that. Its imagery is more flat. Plus it's possible to remove graphical lines and labels and just get terrain-only screen shots. The downside with using Bing Maps is the overhead imagery may be older.



I wouldn't recommend drawing the original building plans on a letter size piece of paper. The scale might be really tiny, making it easy to get errors in small details. Illustrator's maximum art board size isn't very big. It's 227" X 227" normally and 2275" X 2275" in large canvas mode. Big things might have to be designed in scales like 1" = 1'. I design signs in my day job; I usually make the original design at full size if possible. Client sketches are just a copy with the art reduced to whatever scale is needed to fit on letter or legal size paper.

J
judy rj29992565Author
Known Participant
May 4, 2024

The club is part of a 700 acre RV membership complex, leased from a Native American tribe.  They're anxious to control the forest environment, and there aren't many spaces large enough that aren't too close to the lake or other watershed.  The former building site cannot be reused, and in the next few weeks we'll find out where the Tribal Environmental official rules that we might rebuild.  That's why I started with minimal dimensions and indicated possible expansion.

I have some Google images with scale indicated, that I plan to put into layers in the Illustrator plan and toggle so the Steering Committee can see during the presentation how the building would fit (some sites are being fiercely defended by other clubs from encroachment).

If all goes well and the Steering Committee likes my proposal, it will be turned over to a real architect anyway.  I want to be able to print out onto Letter size only because that's all the bigger printer we have, for making interim copies.  The Illustrator file artboards can be anything -- I just want the ability to get proper proportions for the furniture, some how, some way.  If somebody can tell me the exact setup to use on my file, I would be very grateful.

I see that in another post in this community I attached the jpeg version meant for the Steering Committee.  Here is the Illustrator file.  Oops, forgot to post this when I finished earlier this afternoon. ... No, needed to revise the file title, so trying to post again.  Huh.  Keep getting error message:  "Correct the highlighted errors and try again" about file extension.  ...But that's what I just saved inside the updated Illustrator software.  Guess I'll put the jpeg version in this post after all.

Thank you for your help.

B
Community Expert
Bobby HendersonCommunity Expert
Community Expert
May 4, 2024

I'm not sure how you can design much of anything specific if you have to wait and see where a tribal government will allow you to build the club house. The property location, lot dimensions, access to utilities, etc are all important details. It sounds like they're making you put the cart ahead of the horse.

Kurt Gold
Community Expert
Kurt GoldCommunity Expert
Community Expert
May 2, 2024

Great plan.



Can you show what you created so far? And can you clarify what exactly you want to know in order to hone your creation?

J
judy rj29992565Author
Known Participant
May 2, 2024

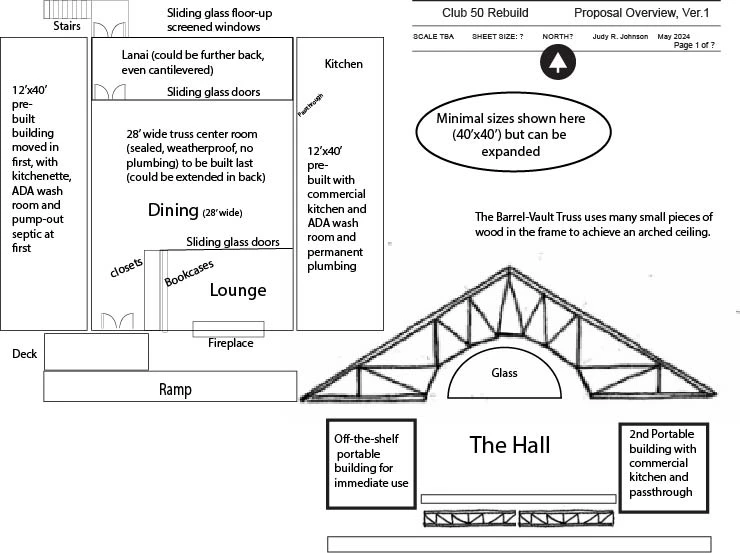

So fast, the replies; many thanks.  I would like to set the scale, et. al so that the 40' x 40' building can be drawn for letter-size printout at a scale that would fit the bldg onto about 1/2 of the artboard, and leave room for comments and dimension indicators.  And when I do a rectangle or resize it, the object measurements must show in feet and inches.  I have to set the grid some way too, I guess.  I have an extremely crude pencil sketch; shall I send that?  Truly amazing how, when you set out on your own and not following the provided files, it becomes so difficult (I got an A, back when).

Monika Gause
Community Expert
Monika GauseCommunity Expert
Community Expert
May 2, 2024

You just need to apply the metric methods to your feet units.

The methods are the same.

J
judy rj29992565Author
Known Participant
May 2, 2024

Thanks, but you give me too much credit.  I need to make 3 or 4 choices in a couple of setup windows, and so far I'm defeated.  BTW, I sent a cell-phone image in an email reply, showing my extremely crude concept sketch.  Hasn't shown up here yet.  Maybe I can get it through iCloud...  Hasn't shown up on iCloud yet.  Maybe my email post sent it; we'll see.

Monika Gause
Community Expert
Monika GauseCommunity ExpertCorrect answer
Community Expert
May 2, 2024

Please log in to the forum's web interface and then embed your sketch in a post.



You do not want to display a scale in the drawing right? You want absolute measurements? Then the scale factor is irrelevant. Just draw the thing, put your measurements into it and print it at the desired size.
