Participant

Question

Artboard Resolution

Forum|Forum|7 years ago
June 24, 2018
6 replies
3506 views

Hi all,

I designed a wedding invitation for a friend and it looks high resolution, the size is correct, everything says 300dpi but when I upload, fuzzy. It says that the Artboard Resolution was set to 375pts wide by 560pts wide. It needs to be 1417px wide by 2185px tall.

Here is the thing. I have Illustrator CS6 and Illustrator CC 2018. I couldn't see the above information but my friend, who I designed the invitation for, could. I could just see that it looked fuzzy when uploaded.

Where do I change this? How do I change this? Help!

This topic has been closed for replies.

barbara_a7746676

Community Expert

Since you are using the term "pixels", I think that when the file was first created it was probably set to the Web or Mobile profile.

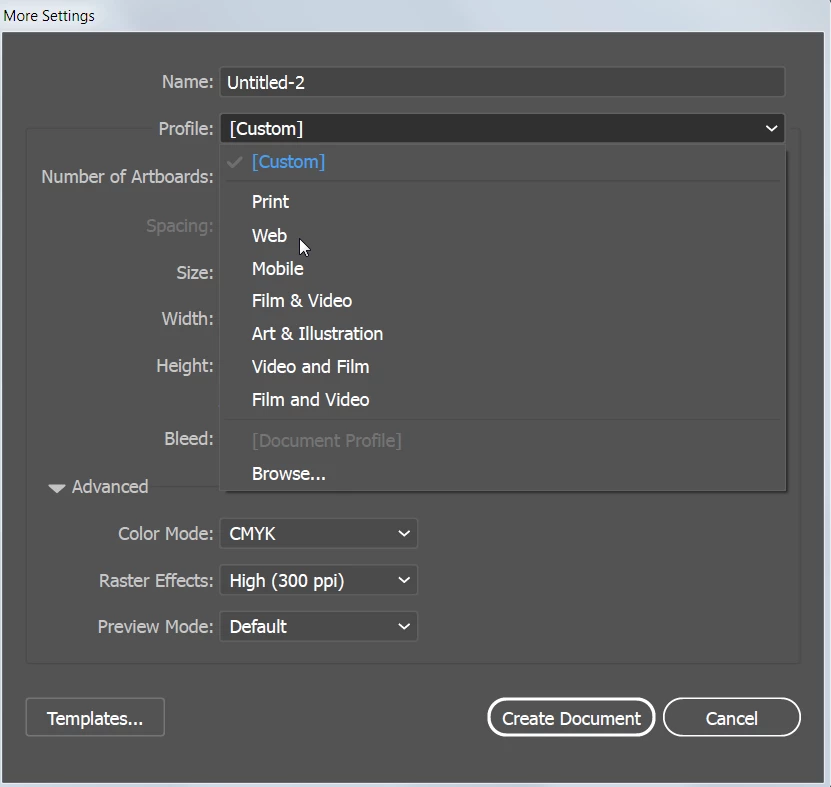

Make sure to choose Print when setting up the document. If you do, then all the default settings will be correct for what most print vendors would want: CMYK color, 300 ppi, etc.

Monika Gause

Community Expert

https://forums.adobe.com/people/Barbara+Ash schrieb
most print vendors

Probably not Vistaprint.

Some of those cheap online printers really want pixel formats.

barbara_a7746676

Community Expert

Good point. Important to follow the instructions from the vendor.

T

Test Screen Name

Legend

If it's for printing make your site in INCHES (or millimetres) not pixels. Pixels are for web work only. Confusing, but an important rule. You know the size in inches; set 300 ppi. Do NOT export PNG or JPEG, but PDF.

Jacob Bugge

Community Expert

Michaela,

Just to throw another spanner into the cogwheel, there is also the Effect>Document Raster Effects Setting.

Apart from that, the figures are mismatched in terms of proportions.

I am printing it through vista print but it is a paper wedding invitation.
Their specs say you have to have 300DPI (which I do) actually, I made it 600 and it is still fuzzy.

Which actual size is it supposed to be on the paper when printed in inches, mm, or points/pixels?

You should be able to just create the Artboard at that size, then Export to the desired raster format at 300PPI resolution.

T

Test Screen Name

Legend

ppi/dpi are one kind of resolution (how much detail when you print, only). Size in pixels (px) are another kind of resolution (how many pixels there are, crucial for web work). Because you mix the two up in your question, be sure you fully understand the difference.

Monika Gause

Community Expert

What did you do step by step?

vector files don't have a resolution.

and if this is going to be printed, then why do you upload a pixel file?

A

AspenYouthCenterAuthor

Participant

Hi,

I found where to change the Artboard size, the auto size was too small. However, it still uploads fuzzy. I went to document raster settings and set PPI to 600 to try to fix it, but it doesn't help.

M

Monika Gause

Community Expert

michaelai85727754 schrieb
Hi,
I found where to change the Artboard size, the auto size was too small. However, it still uploads fuzzy. I went to document raster settings and set PPI to 600 to try to fix it, but it doesn't help.

WHen those services tell you to have your artwork at 300 ppi and at specific pixel dimensions, then these services themselves actually don't fully understand what they're doing.

michaelai85727754 schrieb
It needs to be 1417px wide by 2185px tall.

This is the relevant information. Make it this size in pixels. Resolution actually doesn't matter then and will probably just be discarded anyway upon uploading.

saeedalkarmi

Participating Frequently

Hi,

Is it a web content? you must reduce the resolution. 300dpi is not recommended for web contents.

72, 96 are better..

and don't forget about the color mode "it must be RGB"

Regards

A

AspenYouthCenterAuthor

Participant

It is not for web content. I am printing it through vista print but it is a paper wedding invitation.

Their specs say you have to have 300DPI (which I do) actually, I made it 600 and it is still fuzzy.

Ton Frederiks

Community Expert

michaelai85727754 wrote
It is not for web content. I am printing it through vista print but it is a paper wedding invitation.
Their specs say you have to have 300DPI (which I do) actually, I made it 600 and it is still fuzzy.

What do you send to Vistaprint? An Image?

They accept Illustrator and PDF files in vector format.

Don't worry about the ppi unless you place images or use pixel effects (like a drop shadow).

Send them a pdf and make sure that your artboard is 1417px wide by 2185px tall. As you mentioned in your first post.
