Artboard rulers

Question

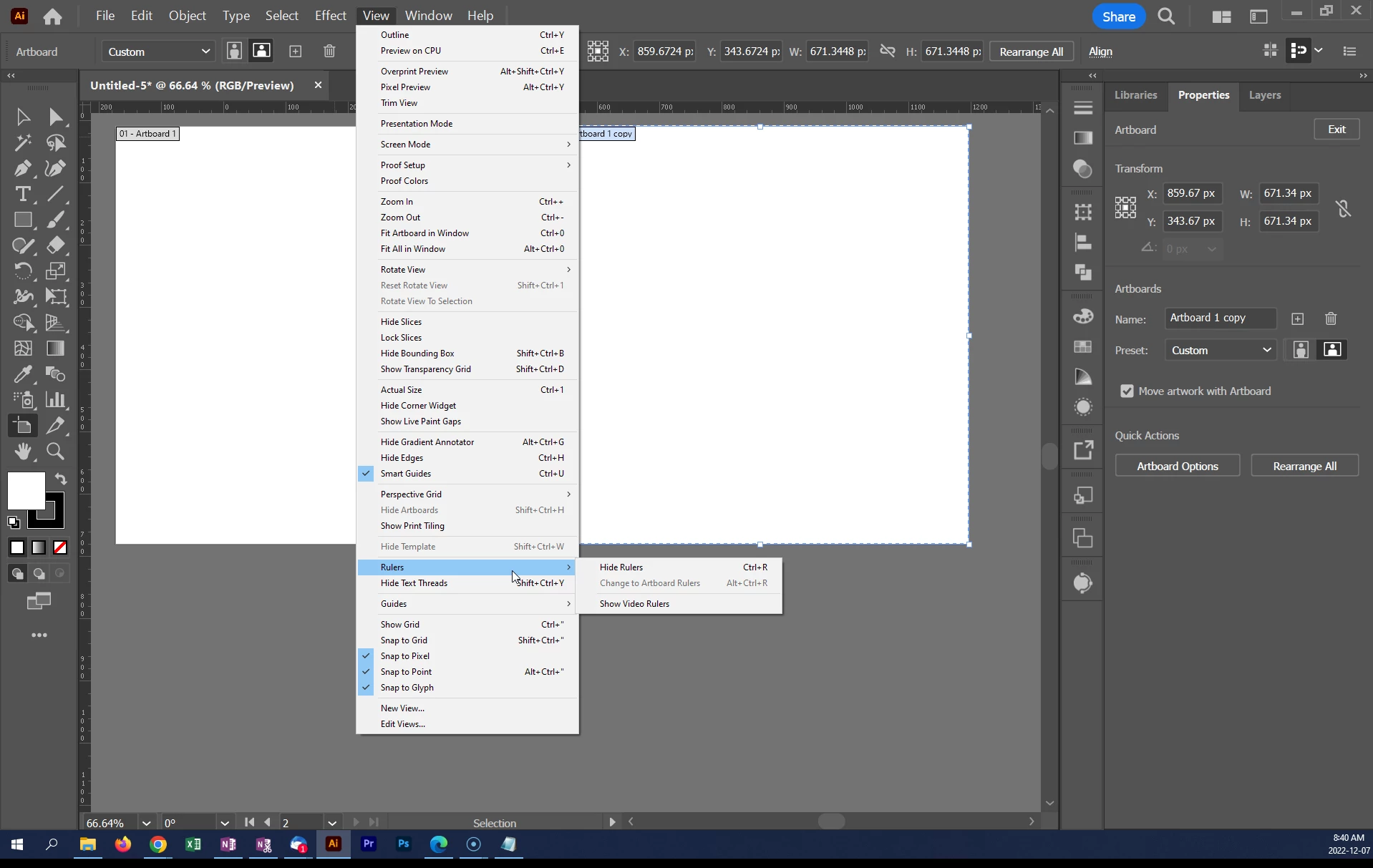

so it may be my memory is faulty but I remember being able to set it so each artboard in a document had a distinct ruler which in my mind would be artboard vs global rulers. From reading the documentation artboard rulers are supposed to be the default and the option is greyed out in my view menu so I am assuming that artboard rulers are enabled but.... I just see the global ruler. If I move the point of origin with one artboard active the point of origin is still shifted when I switch back to the other artboard.

What I want to do is be able to set it so each separate artboard has a ruler with its own independent point of origin. I often make sets of graphics all in one ie 1080px x 1080px for Instagram and 800px X 600px for the blog post image and sometimes a google my business post image size too.

Is mine not working or it how I think this is supposed to work wrong?

Thanks in advance,

Leslie

Ton Frederiks · Accepted Answer

Yes, first get out of Artboard editing mode.If you right click the ruler you can switch. When you use Artboard Rulers, you can see the ruler change when clicking in an artboard.

Ton Frederiks · Answer

I understand that you are using Illustrator for web graphics.

I would recommend using pixels (or points) as units and Global Rulers.

That way you can check if the upper left X/Y artboard coordinates contain fractional numbers (which could cause additional pixels on export).

Artboard rulers can give the false impression that your artboards are aligned to the pixelgrid.
