Blend tool overlapping objects are not seen

  • December 22, 2023
  • 2 replies
  • 376 views

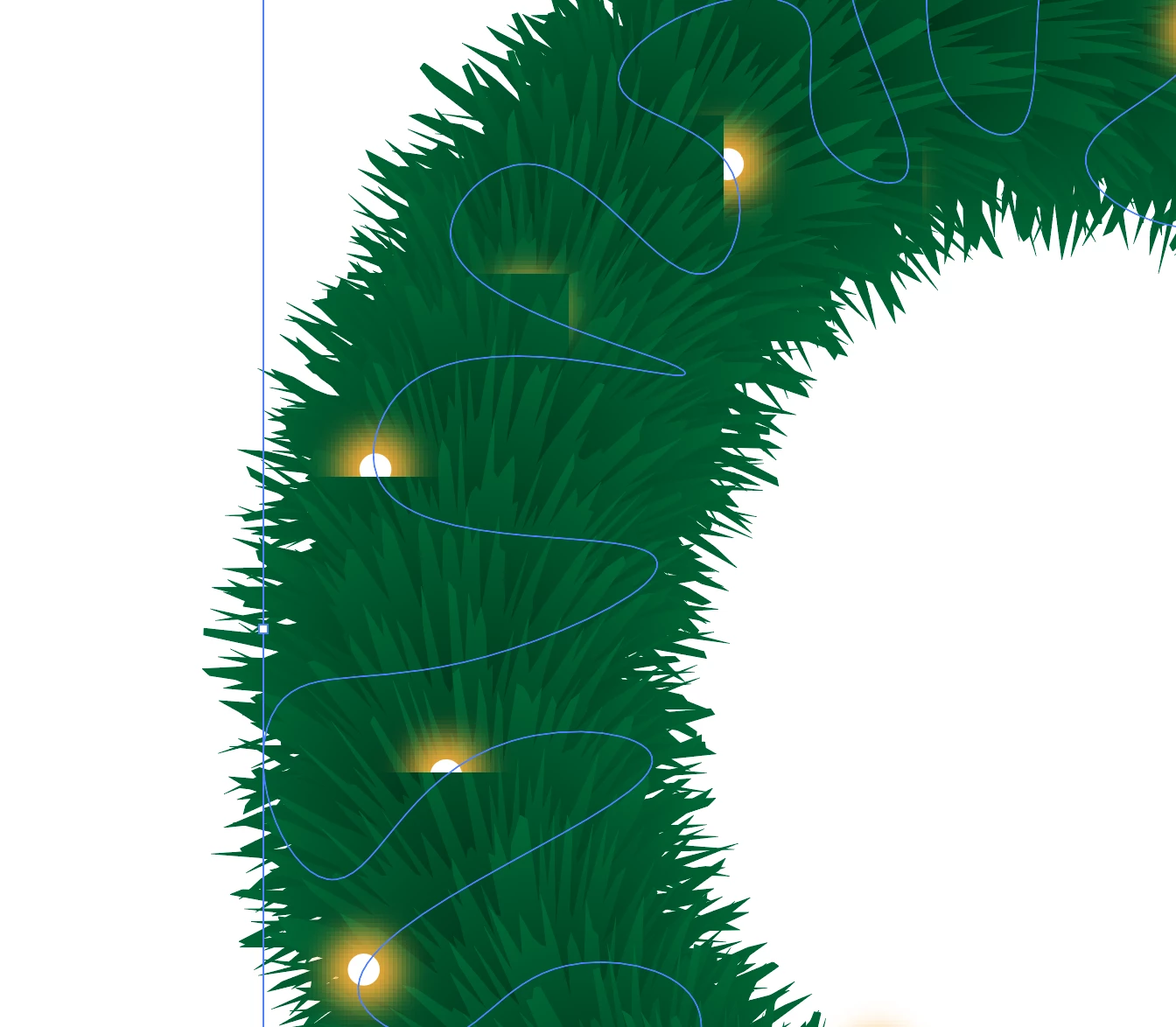

I created a chain of lights using bland tool along a curve line. Altough, mos of the lights are not seen and it seems like some ojects are covering another while been invisible themselves. So what the problem? I'd appreciat some halp.

    This topic has been closed for replies.

    2 replies

    tromboniator
    Community Expert
    tromboniatorCommunity Expert
    Community Expert
    December 22, 2023

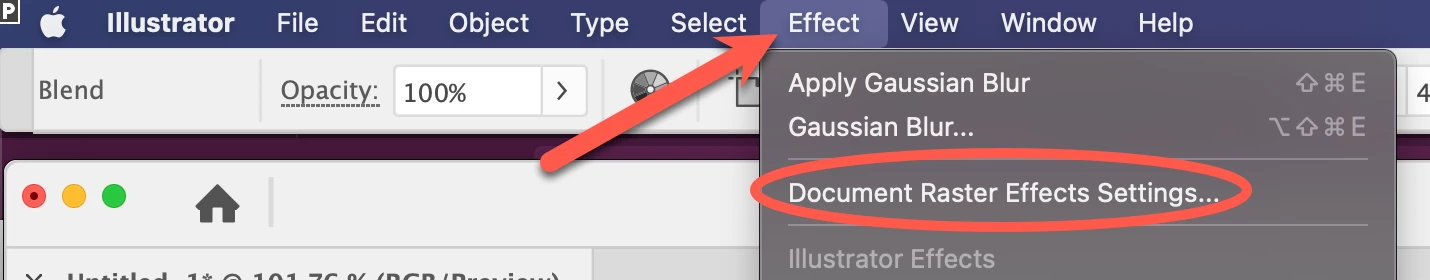

    In the Effect menu click on Document Raster Effects Settings

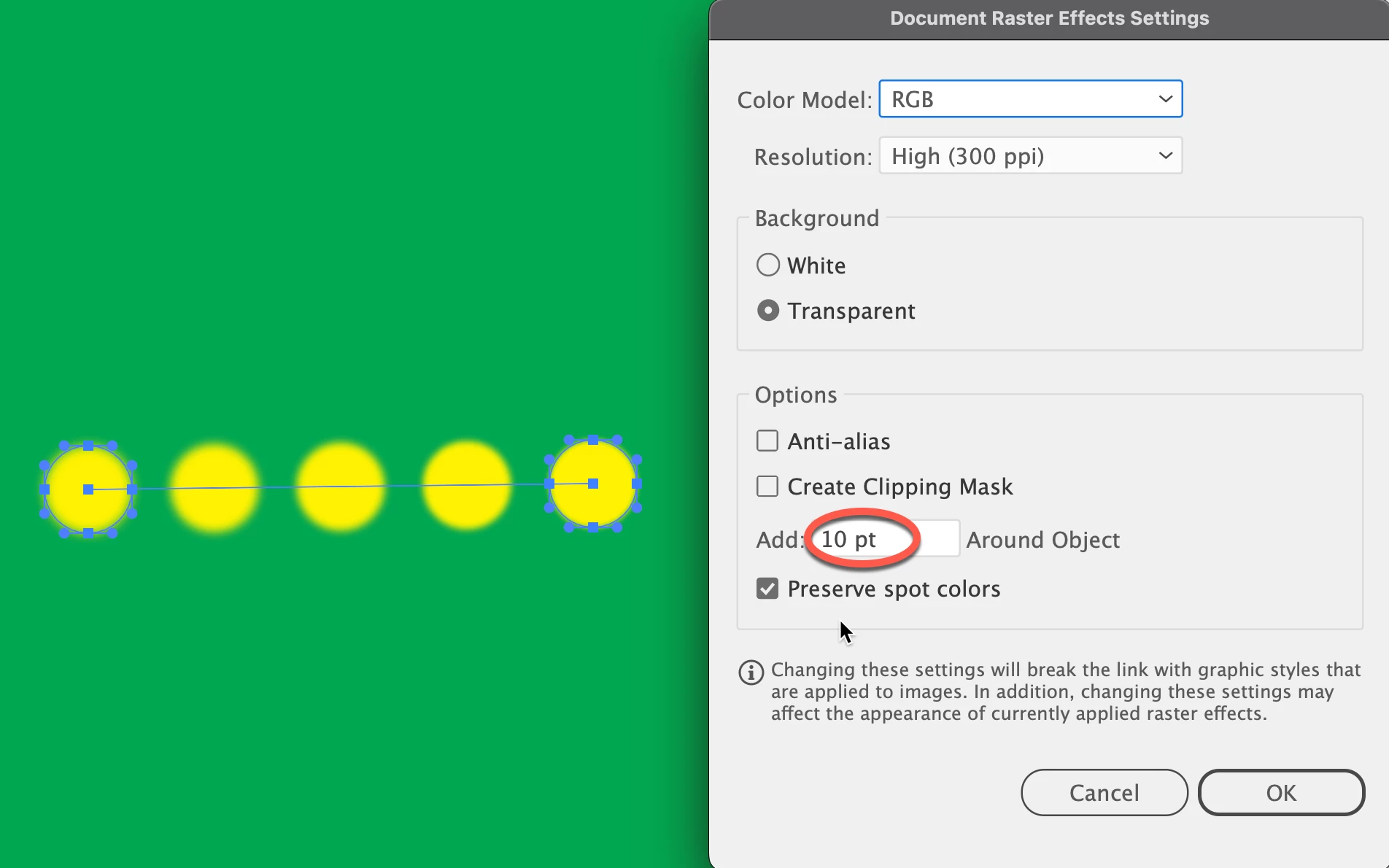

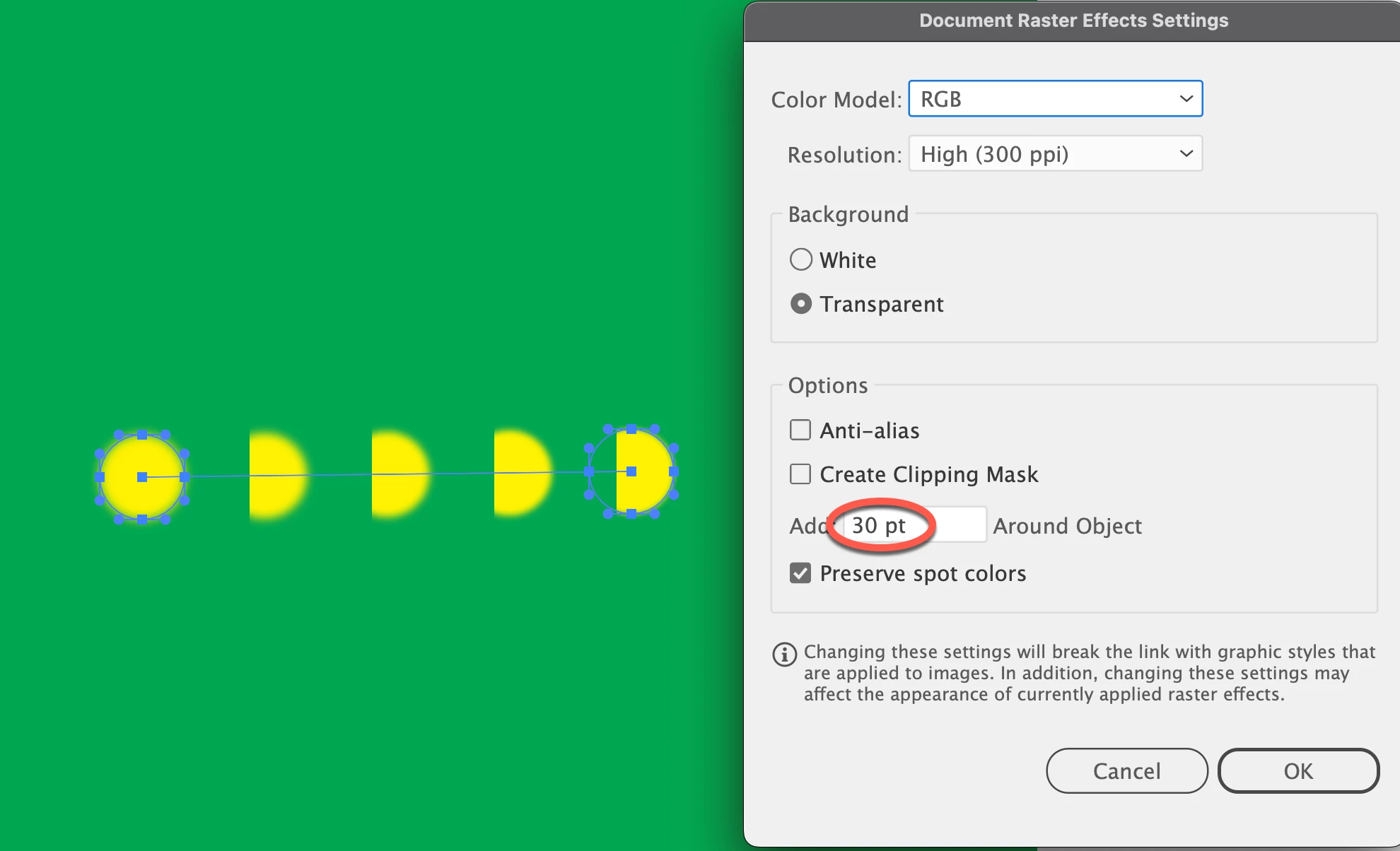

    Adjust the value so that the size of the effect on one object does not overlap another object.

    You may have to select and slightly move the blend for the change to visibly take effect.



    Peter

    A
    Anonymous
    December 22, 2023

    Monika Gause
    Community Expert
    Monika GauseCommunity Expert
    Community Expert
    December 22, 2023

    Select the blend and then in the transparency panel uncheck the option "Knockout group".

    You might need to "Show options" in order to make that option visible.
