Blending Shadows

  • January 25, 2019
  • 4 replies
  • 1050 views

Hi Everyone,

I would like to know how to blend drop shadows from 2 lines when it overlap each other like the corner of an angle?

Thanks!

    This topic has been closed for replies.
    Correct answer Jacob Bugge

    Thanks for your suggestion Jacob, will give it a shot to see how it goes. Will report back.


    You are welcome, Sean.

    To use the palest inner path of the Blend in connexion with a photo, you may:

    1) With the Direct Selection Tool (after deselecting the Blend if selected), Click the inner path, then Ctrl/Cmd+C+F+X+F to bring a copy up on top of the Blend as an independent path;

    2) Change the colour to white, this will give you the photo area in white;

    3) Something like (or similar):

    3a) Place the photo in front, adapt (in size) and align to 2), which will give you the full photo in front of everything, or

    3b) Place the photo in back, adapt (in size), ShiftClick 2) and Ctrl/Cmd+7 to use 2) as a Clipping Path for a Clipping Mask with you photo, which you can move about to align with 2) for the desired part to be shown (within the frame),

    3c) Select both 2) and the Blend and in the Transparency palette (flyout) click (Make) Opacity Mask with Clip unticked and Invert Mask ticked, this will give you an empty frame to place the photo in if it fits within the outer path of the frame, also for photo insertion on a website or similar;

    3d) If you wish to have it ready for placing a photo extending past the frame on a website or similar, you may get away with almost the same as in 3c), only starting by creating a background rectangle or something with the general background colour, which may be used to hide the outer parts of the photo.

    4 replies

    Jeff Witchel, ACI
    Community Expert
    Community Expert
    January 27, 2019

    I don't know if this will help, but this kind of Matted Frame look is much easier to create in InDesign using an Inner Shadow.

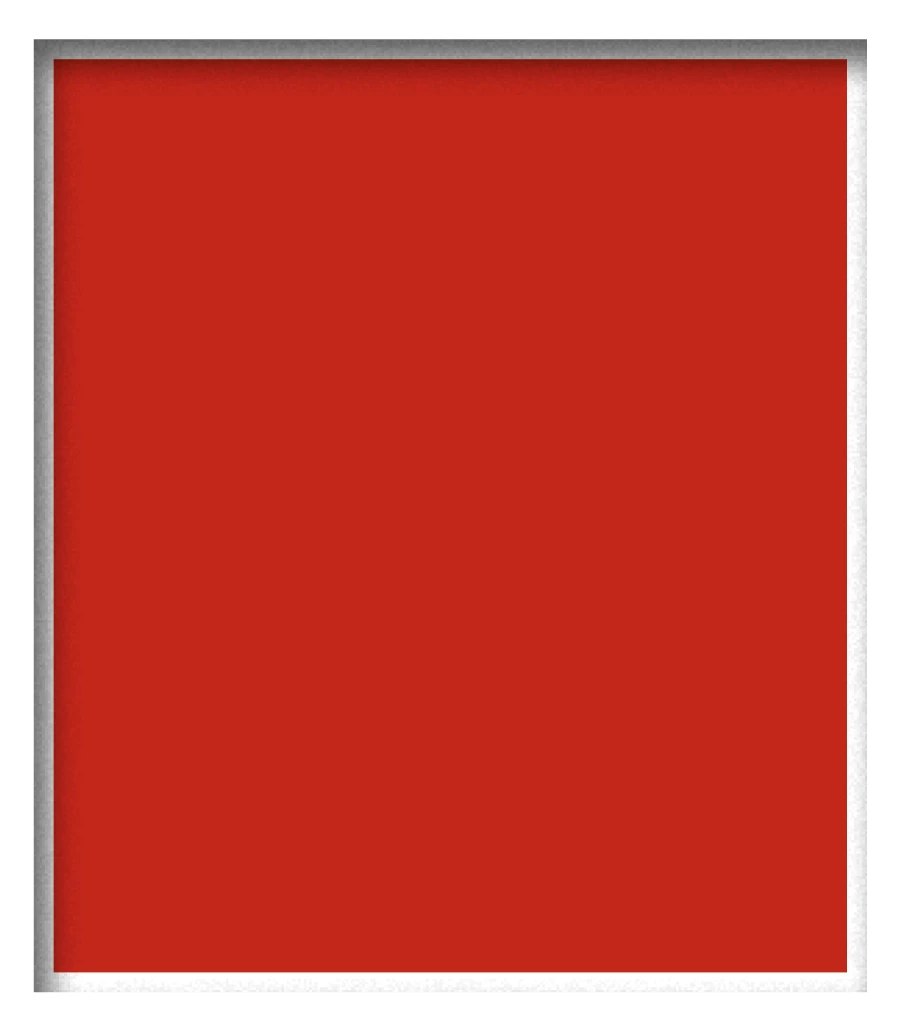

    The following was created by applying an Inner Shadow to a whole object with a white Stroke and a red Fill.

    Hope this helps!

    Ton Frederiks
    Community Expert
    Community Expert
    January 27, 2019

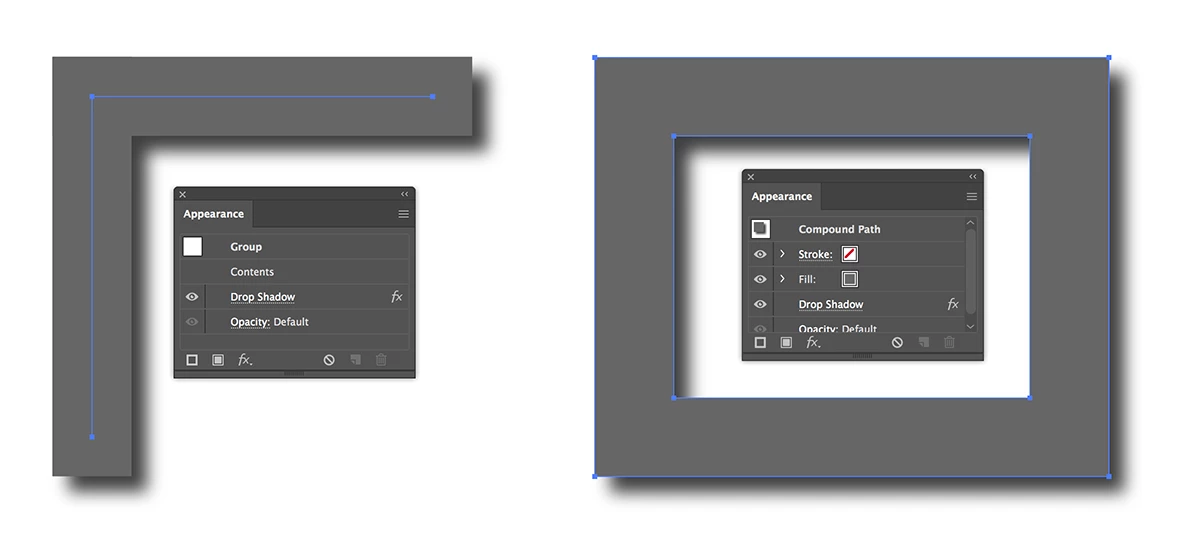

    Why not apply a single drop shadow instead of blending multiple dropshadows? No need to use a blend.

    You can group objects and apply the dropshadow to the group or make a compound path of 2 rectangles and apply the dropshadow to the compound path.

    Jacob Bugge
    Community Expert
    Community Expert
    January 25, 2019

    Sean,

    How about just joining them (Ctrl/Cmd+J)?

    Daniel E Lane
    Inspiring
    January 25, 2019

    need a little more information about what kind of drop shadow? How are the lines? are they a vertex, just passing by each other?

    Seanify89
    Seanify89Author
    Participating Frequently
    January 26, 2019

    Hi Daniel, it's paths just created by line segment tool. I manged to fix it with Jacob Bugge's comment but the drop shadow doesn't seem to be thick enough by using the Stylize -> drop shadow method.

    I tried another new method which is using 2 gradients shapes to combine, is it possible to merge the gradients together at the corner?

    Thank you.

    tromboniator
    Community Expert
    Community Expert
    January 26, 2019

    It's not clear to me what you're after. Could you please post screenshots or sketches to show what you have and where you're trying to get?

    Thanks,

    Peter
