Closing the gaps between 2 shapes

Forum|Forum|6 years ago
May 3, 2019
5 replies
8389 views

HI All,

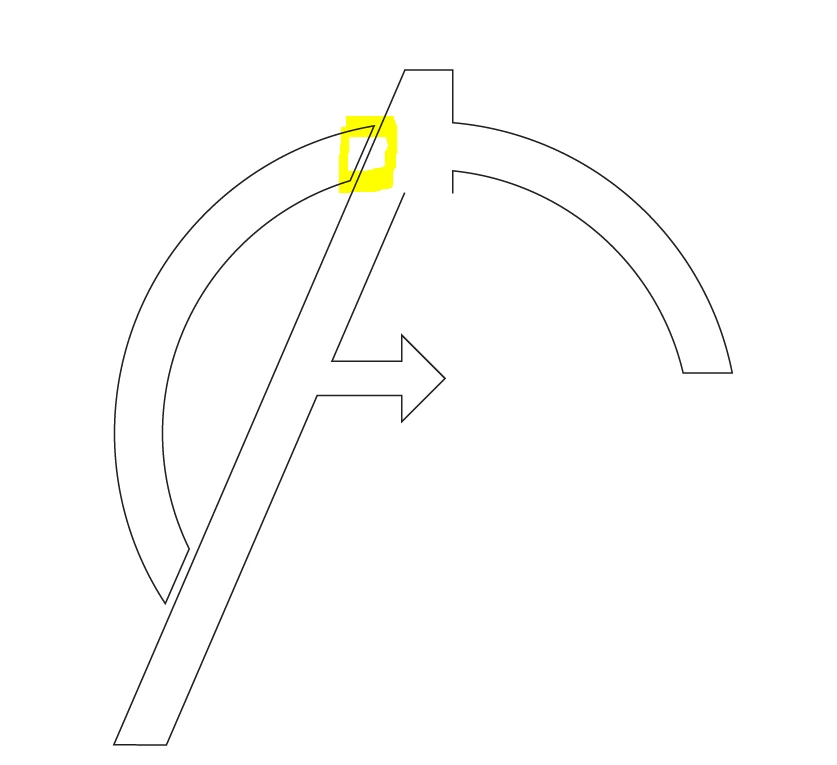

What is the neatest way to close the gap between 2 shapes and removing the path inbetween? I am trying to close this gap below to form a complete compound shape. I tried dragging the shape next to the path and unite but failed. Plus the paths inbetween still exists.

This topic has been closed for replies.

Correct answer pixxxelschubser

In that special case:

At first close the path.
give a fill color and remove stroke color
use Offset path to close the gaps.
pathfinder unit
offset path (with the same value, but negative)
restore fill and stroke

The result is your logo with closed gaps. Remove the other resulting elements.

Have fun

Ares Hovhannesyan

Community Expert

Did you try to use Shape Builders?

KShinabery212

Community Expert

Are you trying to do this so you can use Live Paint or ?

I tend to cheat and create invisible lines sometimes with no fill.

So I have the original line art in black or color or whatever. I make sure everything is expanded. Then I create a copy of the expanded artwork in a new layer... I then draw in new lines to close shapes. I expand those as well in that layer. Then I turn that layer completely invisible with no fills and no strokes. Then I make it Live Paint... and bam I do whatever I want. So then it looks like the black lines are not closed in the final piece.

Let's connect on LinkedIn. https://www.linkedin.com/in/kshinabery/

pixxxelschubser

Correct answer

Community Expert

In that special case:

At first close the path.
give a fill color and remove stroke color
use Offset path to close the gaps.
pathfinder unit
offset path (with the same value, but negative)
restore fill and stroke

The result is your logo with closed gaps. Remove the other resulting elements.

Have fun

Jacob Bugge

Community Expert

Another exquisite way, Hans-Jürgen

Jacob Bugge

Community Expert

Ken,

Presuming you wish to keep the right straight segment in its current place and stretch the left object, in addition (or alternative) to the exquisite suggestion by Megan, you may, after deselecting, Smart Guides being your friends:

1) With the Direct Selection Tool Click the upper corner Anchor Point to also reveal the Handle pointing left, then with the Line Segment Tool ClickDrag from the Handle into the Anchor Point to create a helpline, then ClickDrag it by its leftmost end to snap to the Anchor Point and intersect the straight segment, then with the Scissors Tool Click at the intersection (or go a wee bit further) and delete the rightmost part;

2) Depending on preference:

2A) Copy the helpline and move it to snap to the lower end Anchor Point, then Join the two to form the overlapping shape;

2B) After deselecting, ShiftClick both end Anchor Points of the left object, then ClickDrag the upper one to snap to the end of the helpline at the intersection, which hopefully brings the lower Anchor Point at least to reach the straight segment;

3) Select all/both paths and Pathfinder>Unite.

The slight difference between the two ways is between stretching of curved segments and small straight end bits.

meganchi

Legend

Can you zoom out and show a screen shot of both elements in the entirety?

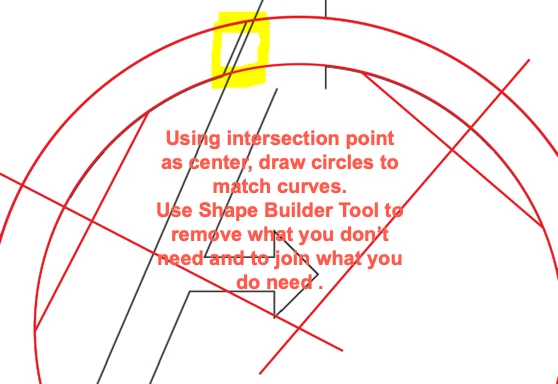

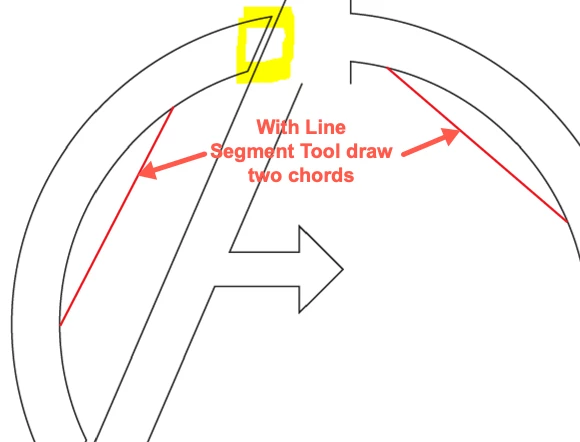

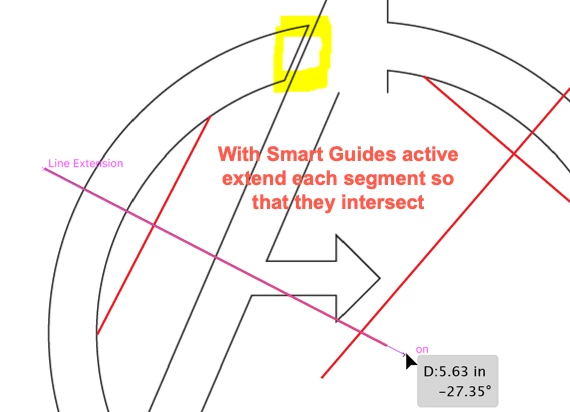

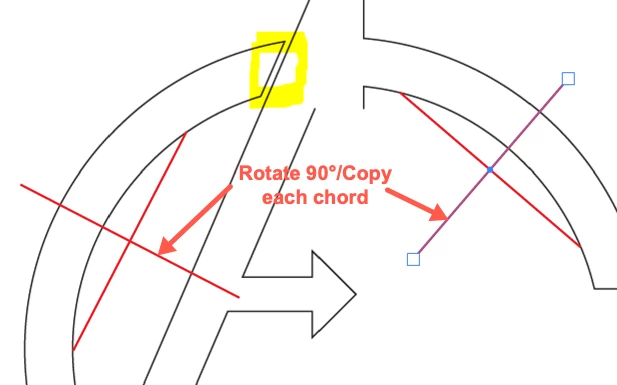

Otherwise from the minimal parts we are seeing, I would use the pen tool and draw four points to create a slightly overlapping shape that connects both of the left and right shapes, and then use the unite pathfinder option to connect all 3 shapes together.
