Question

Como deixar forma atrás do texto ?

  • October 3, 2024
  • 2 replies
  • 621 views

Olá,estou com uma dúvida nesta arte,gostaria de saber como deixo essa forma atrás do texto ? Eu tentei utilizar o traçado no Illustrator,mas a mesma não fica reto como está nesta imagem,já utilizei as opções do traçado e não obtive sucesso.

This topic has been closed for replies.

2 replies

Jacob Bugge
Community Expert
Community Expert
October 3, 2024

Jorge,



Edited, now as an extended instruction with the addition of step 0).



For outlined Type you can do it with an Offset Path with a positive offset sufficient to close all the gaps followed by a negative offset to reach the desired final offset. You may need a few attempts to get it right, so Undo is your friend.



You can do it as follows:



0) With the text created and outlined, Ungroup and turn all the (Compound) Paths into one single Compound Path;

1) Copy the text Compound Path behind itself and change the colour of the copy to a preliminary colour, then apply Object>Path>Offset Path with a positive offset sufficient to close all the gaps; you may need to try a few times until you succeed in closing all the gaps without overdoing it;

2) Apply Object>Path>Offset Path again with a negative offset to reach the desired final offset, and change the colour to the desired background colour to be able to see the resulting shape;

Delete the path with the preliminary colour.



The negative offset is simply the difference between the desired offset (width of the band where it is closest to the letters) and the offset needed to close all the gaps.





In some cases, depending on the typeface and distances between the letters, you can also do it with live Type, probably possible in the case shown.

Jacob Bugge
Community Expert
Community Expert
October 3, 2024

Jorge,



Specifically, you can try with live Type as follows:



1) With the live Type created, in the Appearance palette (flyout) Add New Fill and drag it down beneath the characters, then select it and change its colour to the desired background colour;

2) With the new fill still selected apply Effect>Path>Offset Path with a positive offset sufficient to close all the gaps; you may need to try a few times until you succeed in closing all the gaps without overdoing it;

3) Reapply Effect>Path>Offset Path (confirm when asked) with a negative offset to reach the desired final offset.



The negative offset is simply the difference between the desired offset (width of the band where it is closest to the letters) and the offset needed to close all the gaps.



Inspiring
October 3, 2024

Olá,consegue fazer um vídeo do passo a passo ? Eu tentei mas não está dando certo.

creative explorer
Community Expert
Community Expert
October 3, 2024

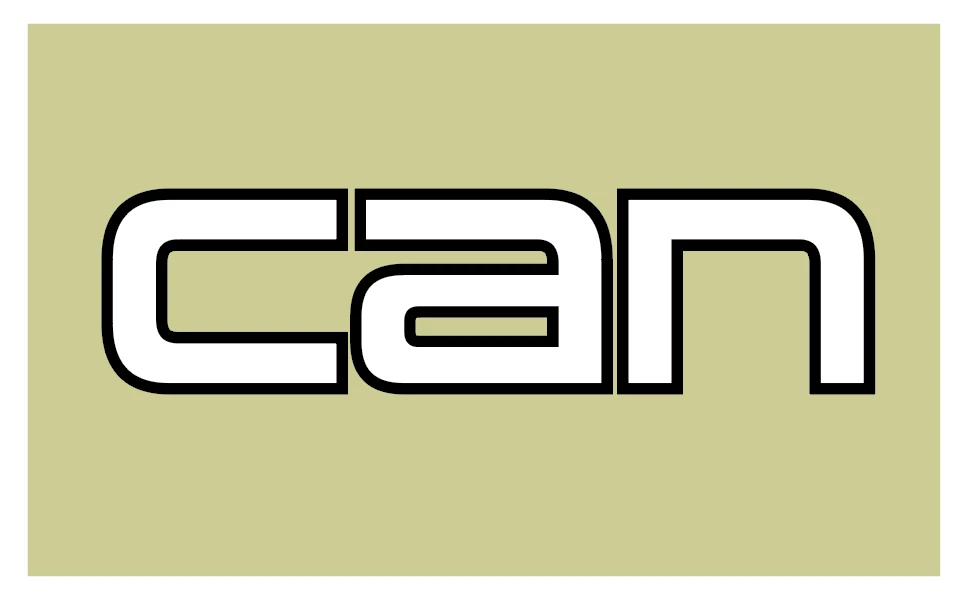

@Jorge Gossain Neto trying to figure what exactly you are trying to accomplish here. Are you trying to do this:

or is there a reference of an image that you want to replicate?
