Completely delete/crop/cut everything that doesn't fall within a clipping mask

  • October 20, 2017
  • 3 replies
  • 1314 views

A novice question.

I need to crop and delete all the artwork that doesn't fall within a clipping mask. Please, don't suggest Command+7, since it just hides artwork that doesn't fall within the mask.

What I need - crop and delete everything that is outside. Then, save to another vector file (not necessarily .ai, .svg may work too).

All my artwork is just lines, no raster. I need this for laser cutting.

The only thing I can find on the internet is Cmd+7 which does not work for my case (laser reads all the layers and all the artwork lines).

Thanks,

This topic has been closed for replies.
Correct answer Mylenium

There is no automated crop. You have to slice it up with Pathfinder operations and manually delete any excess.

Mylenium

3 replies

Monika Gause
Community Expert
Community Expert
October 20, 2017

Please show your artwork.

The pathfinder Crop might not work, since it creates shapes.

petrg46406670
Participant
October 29, 2017

It seems that my case is a little different.

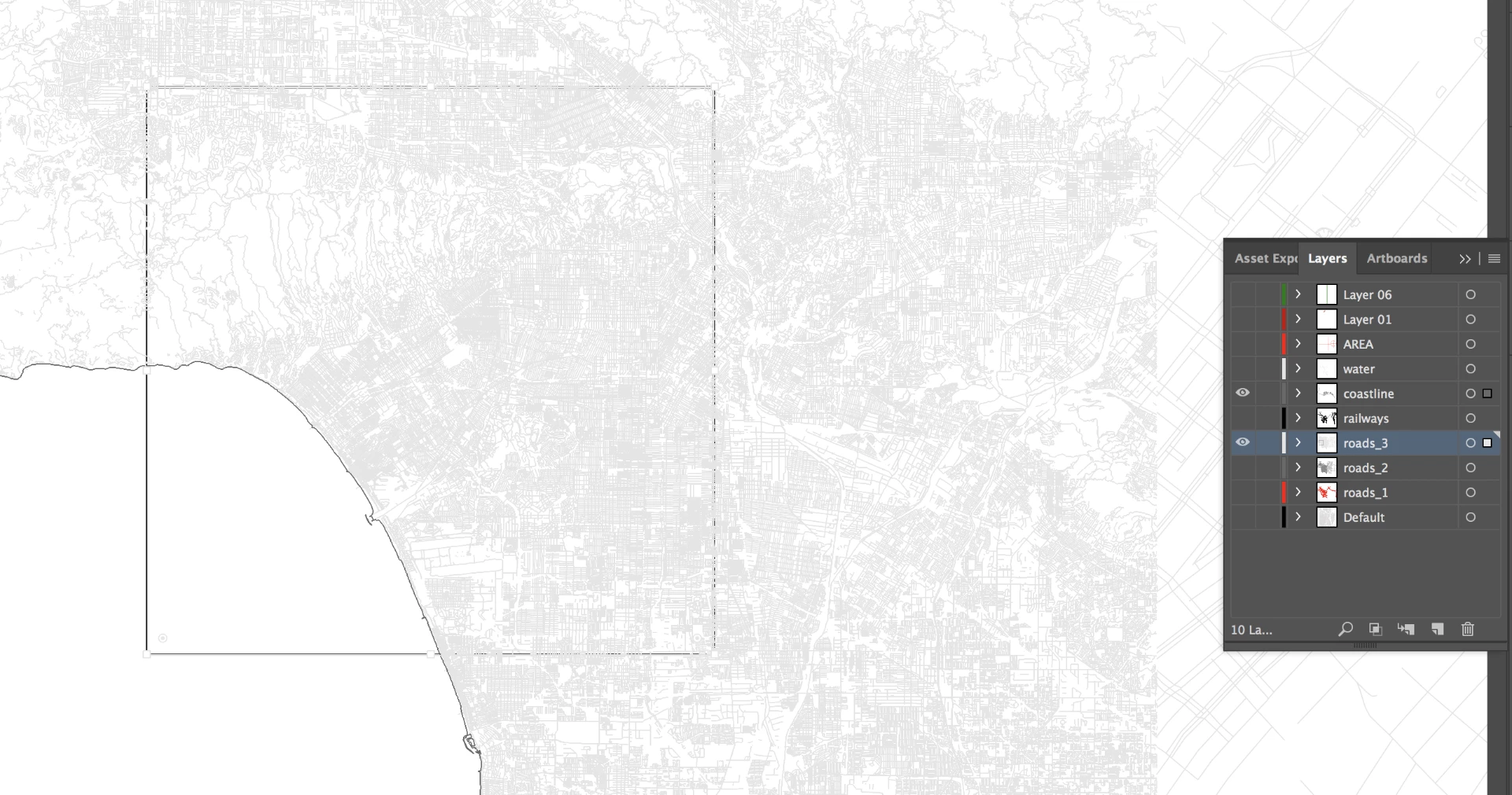

Please see the picture attached. Pathfinder cropping had no effect.

My artwork is a myriad of lines representing a city map. I need just a small part of the city.

Monika Gause
Community Expert
Community Expert
October 29, 2017

See Mylenium's answer.

Inspiring
October 20, 2017

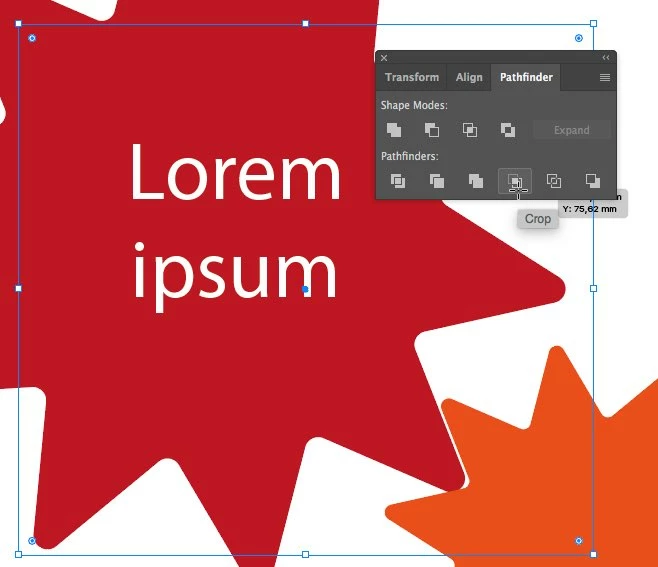

The Pathfinder will provide you with a solution.

1. Make an empty frame above everything.

2. Select everything, then go to pathfinder and find crop.

3. It will erase everything outside the box you've drawn.

Mylenium
MyleniumCorrect answer
Legend
October 20, 2017

There is no automated crop. You have to slice it up with Pathfinder operations and manually delete any excess.

Mylenium
