Compound Paths

  • March 9, 2024
  • 3 replies
  • 500 views

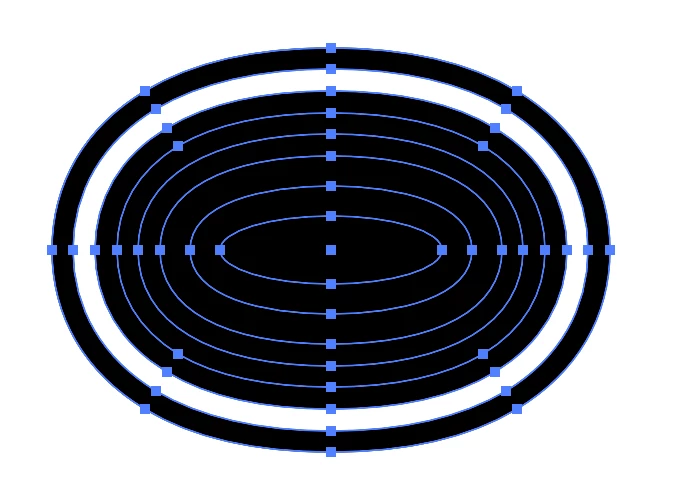

This series of concentric ovals were all ungrouped, all given a black fill and no outlines, Compound Paths released. I wanted to create alternating black and clear shapes like a target. I selected all of the shapes and clicked Command+8 to Make Compound. Only the first inner ring turned clear as seen in the screen grab.



I do not fully understand when this works this way, while others do what I expected. I know I can use the shape builder to knock out the desired rings.



What's going on?



Thanks,

MJackson

This topic has been closed for replies.
Correct answer mjackson8300235139681

Monika,

This is THE answer I was looking for. Even-Odd was unchecked.

Thanks!



3 replies

Monika Gause
Community Expert
Community Expert
March 9, 2024

Open the Attributes panel.

Show options via the menu

In the right 2 buttons click on Even-Odd

mjackson8300235139681AuthorCorrect answer
Inspiring
March 9, 2024

Monika,

This is THE answer I was looking for. Even-Odd was unchecked.

Thanks!



Monika Gause
Community Expert
Community Expert
March 9, 2024

You're welcome.

Non-Zero will work as well, but you would need to change direction of at least some of the paths.

Ton Frederiks
Community Expert
Community Expert
March 9, 2024

With all selected, you can click Exclude in the Pathfinder Panel.

Jacob Bugge
Community Expert
Community Expert
March 9, 2024

mjackson,



Just select pairs to form the rings and use Cmd+8 on each pair, first the two outer most ones, then the next sets, ending with the middle ellipse alone.
