I'm attempting to reproduce a simple graphic comprised of numerous lines of equal length. The lines are laid out at various angles equidistant from each other for every specific angle.

What would be a method to copy and paste lines that always places them the same predetermined space from eachother?

Appreciatively,

Luca

How to

This topic has been closed for replies.

Jacob Bugge

Community Expert

W

Wade_Zimmerman1

Inspiring

Am I correct you already have the art work as existing art? If so:

Select All and copy then paste or drag a marquis with the selection tools to highlight the art of your choice or use the lasso tool, then copy and paste

Depending on platform

Command A or Control A (Select All)

Command C or Control C (Copy)

Command V or Control V (Paste)

You can also use the Edit menu to select all and Copy and Paste.

If from a different program to illustrator there should be a way to select the art and copy then in Illustrator paste.

Steve Fairbairn

Inspiring

I think Wade reckons that not everybody knows how to copy/paste but if Pete understood the question right, what you have to do is this:

Draw a (horizontal) line.

Cmd+Shift+M to call up the Move dialogue.

Enter a (vertical) increment and Copy.

Then Cmd-D to do it again, and again, and again ...

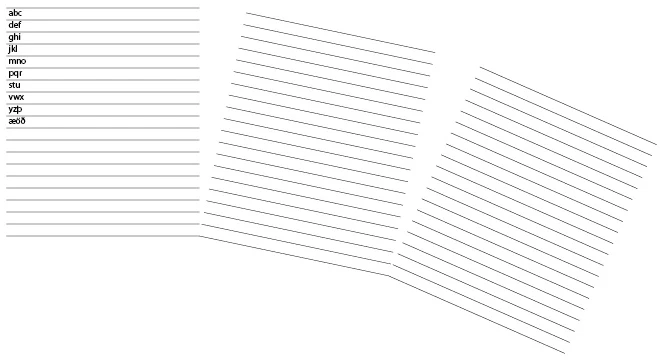

until you've got something like this:

Here I entered a 12pt increment to fit 9/12pt type.

If you want to rotate the lines just select all of them and R ...

tromboniator

Community Expert

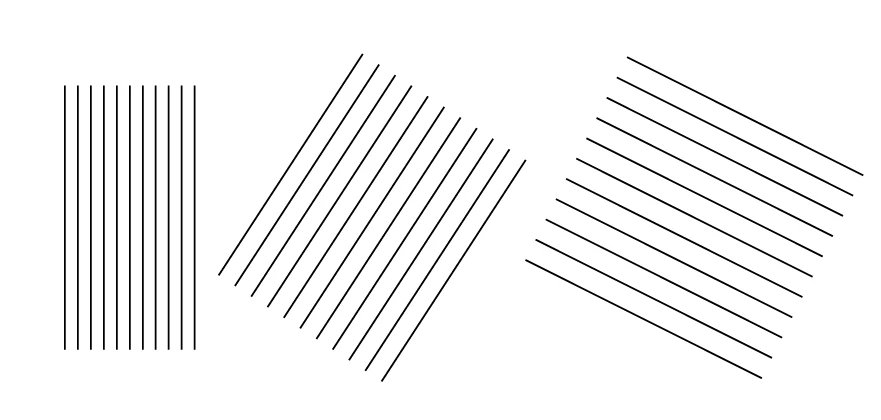

Interesting. I really love English. I interpreted the OP to mean:

Peter

Steve Fairbairn

Inspiring

Hmmm, d'you reckon? Maybe.

The guy said, "... numerous lines of equal length. The lines are laid out at various angles equidistant from each other for every specific angle."

Equidistant meaning parallel if it refers to the lines. If so he should have said so. If it's the angles that are equidistant from each other (strange terminology though) then you get a sort of fan-shaped thingummy like mine.

Which reminds me af why the word flammable is used in the US instead of UK inflammmable.

Italian immigrants handling aviation fuel misunderstood the in part as being a negation.

"Da's alrighta, ees eenflammabile, ee wonna burna, le's avva smoka." BUMFF. Exeunt Italian immigrants. Hence the new word.

tromboniator

Community Expert

steve fairbairn wrote:
flammable is used in the US instead of UK inflammmable.

My throat was flamed and I felt horrible, but now that it's inflamed I feel much better.

Last looked, both flammable and inflammable were in use in the US, though flammable may have official backing.

Peter

Steve Fairbairn

Inspiring

This is the method I most often use:

Start off by making a pair of ruler guides. The place where they cross is the centre of rotation.

Draw a line along one of the guides and select it.

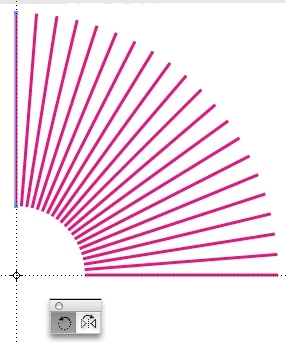

Option-click with the Rotate tool on the centre of rotation. Up comes the dialogue box.

Enter the angle (in this case 4.5° = 90° divided by 20).

And then Cmd+D to repeat. as often as you need. (I could've gone whole circle with this one.)

Jacob Bugge

Community Expert

Luca,

Assuming the same rotation between lines, rather than different rotations (maybe even with different signs).

It may be noted that the Move and Rotate transformations, whether applied through the Object or the Effect options, will do just that: first move then rotate. If you start with a horizontal line, the first slanting line will have its centre at the same X value.

This means that the resulting lines will not point towards the same centre. Depending on the amounts, this non centredness may be visible, and the lines may even cross.

If you want them pointing towards a common centre, you will have to do it in some other way.

One simple way could be to create a nostroke nofill path end to end with the original path, the intended centre of rotation being the centre of the two paths put together, and then just rotate them (this can also be done through the Object or the Effect options). After rotation (and Object>Expand Appearance if you use Effect and want separate paths), you may delete the nostroke nofill paths.
