Corner Widgets not visible on every corner

  • July 18, 2022
  • 1 reply
  • 991 views

Once again I am having to stop my workflow and post to the community because something isn't working in the program.

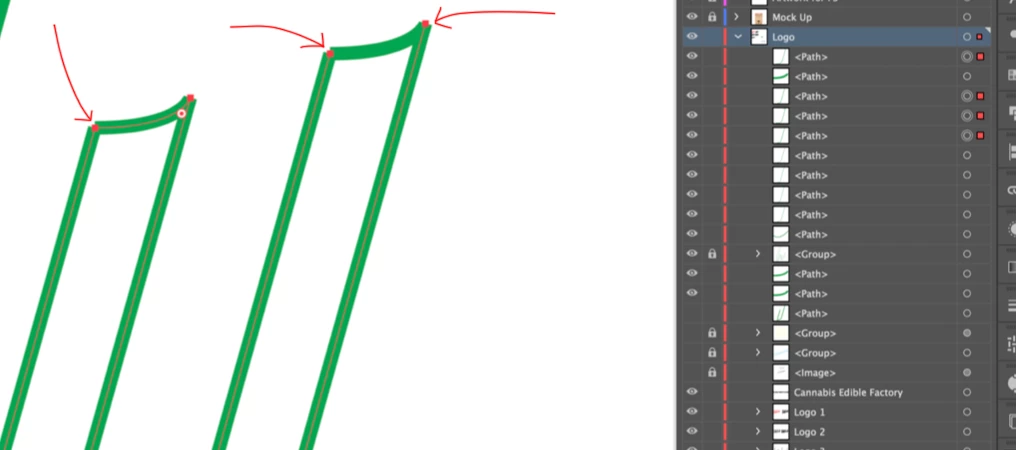

I'm designing a logo and on the last letter the corner widgets are not appearing like they have been throughout the entire shape. I have edges visible and corner widgets.



Please advise.

This topic has been closed for replies.
Correct answer Jacob Bugge

I'm aware the top is not joined (I tried joining the entire shape after this post which did not solve the problem).



I'm specifically talking about the corners at the bottom of the shapes. There are 2 identical shapes next to eachother, there are widgets on the bottom of the shape on the left and no widgets on the botom of the shape on the right.


esthedik,



"There are 2 identical shapes next to eachother,"



The two (sets of) are not identical: on the one to th e right, the rightmost corner missing a widget is placed higher, and there is an extra Anchor Point in the lower curved part.



What happens if you delete the set to the right, then move a copy of the one to the left into place and take it from there?



Before that, you may wish to Join the the parts of the shape to the left as mentioned by S.



1 reply

esthedik
esthedikAuthor
Participating Frequently
July 18, 2022

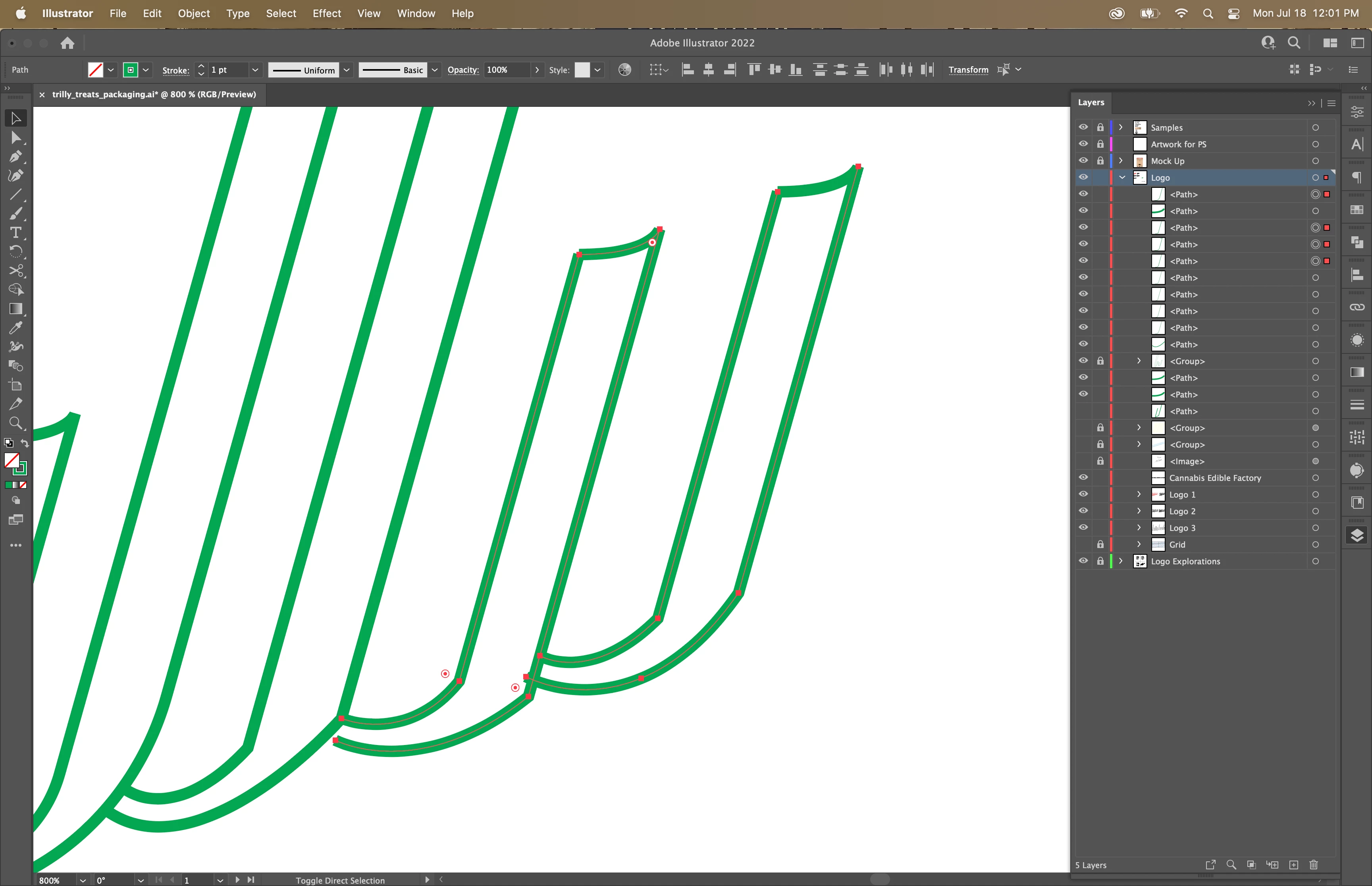

*UPDATED SCREENSHOT*

S
SJRiegel
Legend
July 18, 2022

There are no corner widgets in these places because they are not really corners from Illustrator's point of view. In these three places, the end points of two different strokes are close together (or maybe even on top of each other). To get your widget, join the two strokes at those points.

esthedik
esthedikAuthor
Participating Frequently
July 18, 2022

I'm aware the top is not joined (I tried joining the entire shape after this post which did not solve the problem).



I'm specifically talking about the corners at the bottom of the shapes. There are 2 identical shapes next to eachother, there are widgets on the bottom of the shape on the left and no widgets on the botom of the shape on the right.
