Creating a clipping mask on a complex image trace

Forum|Forum|7 years ago
January 23, 2019
3 replies
5992 views

I’be image traced handwritten text and am trying to create a clipping mask to give it an effect. The effect is made up of the square and circle tool.

I got it to work once, but after clipping the mask, the gaps in letters like “p” and “g” were filled. Some I could select and delete; others I couldn’t.

Is there an order sequence that I’m getting wrong here?

I also get mixed results when I try to compound the paths in the traced text: either the text disappears, or one letter has the effect from the clipping mask.

Can anyone shed some light on this? (I’ve also tried using a traced image to clip onto my traced text but that didn’t work either! What’s the deal with traced images?)

This topic has been closed for replies.

Correct answer jane-e

jadeaj58 wrote
I can make a compound path but when I add the clipping mask, either the traced image disappears or it disappears and the mask clips the shapes, leaving fragments of the ellipse behind.

Hi Jade,

The function of a clipping mask is that the top shape "clips" everything underneath it and you can only see the part that is inside that top shape.

More specifically, if you select multiple shapes and choose: Object > Clipping Path > Make, the top shape hides everything outside its boundaries. Use Isolation mode and the Layers panel to make edits. Spin open your Layers panel so we can see the top shape. That is what it will clip to.

If it's a Layer Clipping Mask, it goes to the top shape in the layer. Everything on the layer is clipped to that top shape. The top shape does not have to stay on top anymore — if you put other things on the layer, they will be clipped.

Draw Inside is another way of an Object Clipping path.

An opacity mask has been suggested, and I agree. But check the stacking order in the Layers panel first.

~ Jane

B

Bobby Henderson

Community Expert

If you have letters that are disappearing or other odd things happening when you apply the "Make Compound" to your lettering it points to a couple possible problems.

First, it's possible you might have a stray duplicate object or multiple duplicate objects. Check your paths for that. The easiest way is deleting the path to see if another just like it is hiding underneath. Ctrl-Z to undo if the path disappears. Dupe objects can be a big problem with imported PDF artwork.

Next, if a certain object won't "knock out" and become a hole when combined with another path it's a good sign the path direction is reversed. That's another thing I sometimes see with imported artwork. Sometimes it happens with auto-traced art too. Last time I checked Illustrator doesn't have a stock "reverse path direction" command or tool. I have to use something like Astute Graphics' PathScribe plug-in for that function. CorelDRAW has it built-in. If you can't reverse the path direction you can still use it with the Pathfinder tools to cut a hole through the target object. That usually works.

Jacob Bugge

Community Expert

Jade,

As I (mis)understand it, you may be doing things the wrong way round.

If the image trace part (are made to) form a Compound Path, what happens if you place that in front of the rectangle/ellipse (which you may Group), select everything, and Ctrl/Cmd+7 to form the Clipping Mask?

jadeaj58Author

Participant

Hi,

Thanks for your help!

I can make a compound path but when I add the clipping mask, either the traced image disappears or it disappears and the mask clips the shapes, leaving fragments of the ellipse behind. Removing the outer glow on the ellipse fixed the g in my initial file, which is great, but I copied the same image and shapes into another file which is where the clipping mask is failing.

Something must have gotten fudged along the way but I can't figure out what.

Monika Gause

Community Expert

jadeaj58 schrieb
Hi,
Thanks for your help!
I can make a compound path but when I add the clipping mask, either the traced image disappears or it disappears and the mask clips the shapes, leaving fragments of the ellipse behind. Removing the outer glow on the ellipse fixed the g in my initial file, which is great, but I copied the same image and shapes into another file which is where the clipping mask is failing.
Something must have gotten fudged along the way but I can't figure out what.

So before you apply the outer glow everything is OK?

You apply the outer glow to the mask?

That might not work anyway, because clipping masks don't accept any kind of effect you apply to them.

You might want to read the documentation about compound paths, clipping masks, opacity masks. It will help you understand what everyone says.

tromboniator

Community Expert

Could you please explain exactly what you did and what you hope to accomplish, preferably with some screenshots including the fully open Layers panel? It's okay if it gets long. I'm just having a hard time picturing your problem, and "that didn't work either!" doesn't give us much to go on.

Peter

jadeaj58Author

Participant

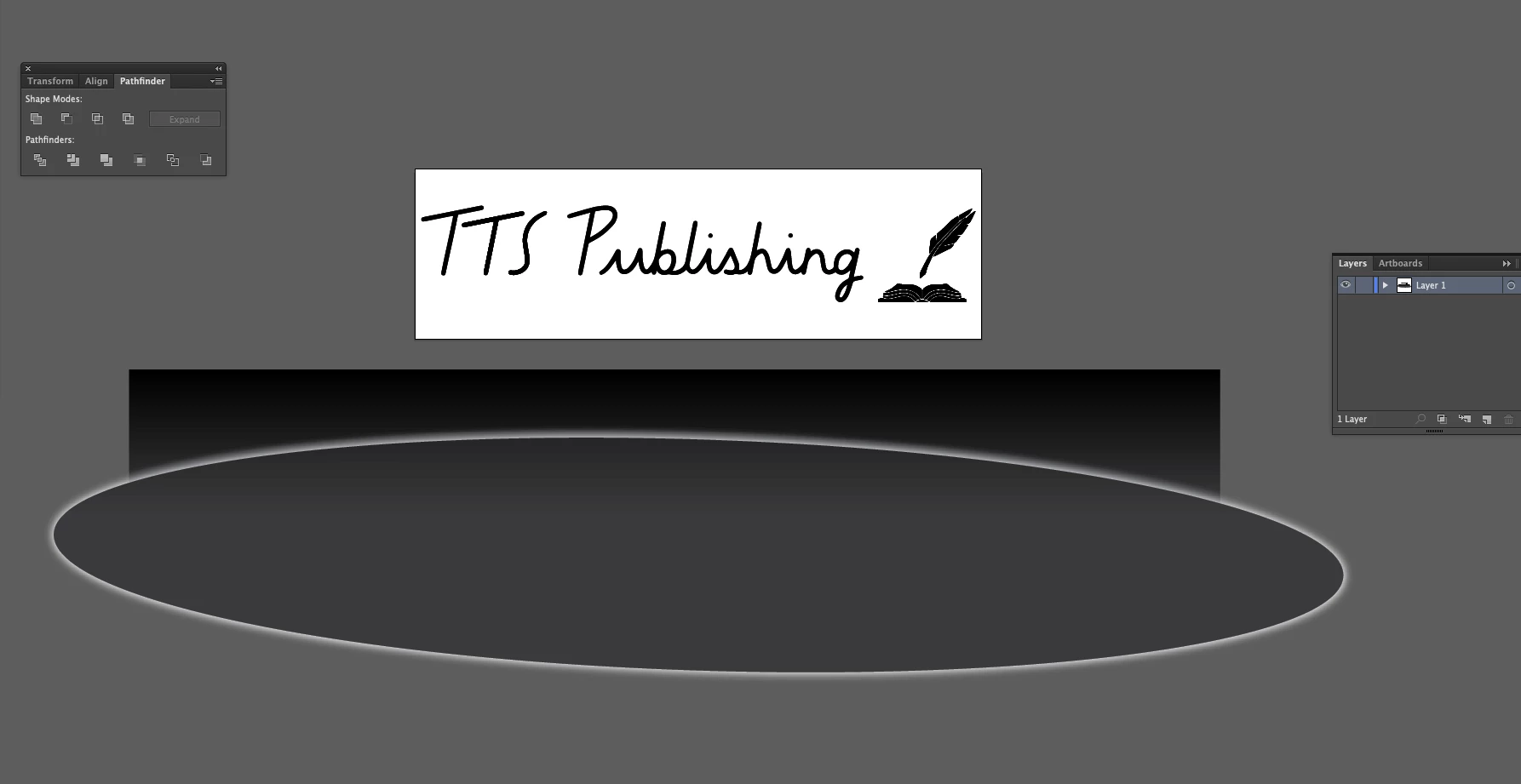

Thanks for your speedy response! This is what my artboard currently looks like:

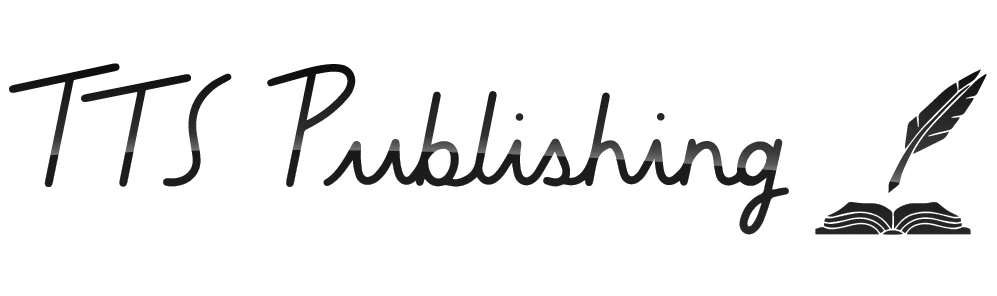

The effect is just an ellipse with a white outer glow over a triangle, both with black to gray gradients. I'm trying to use these shapes as a clipping mask over the text, which is a traced image. I got the mask to work once, which looked like this:

It looks fine on a white background, but at a closer look, there's remnants of the rectangle's gradient in the g:

I can't seem to get the clipping mask to work, or the gradients to stop appearing in the letter gaps. Any ideas?

Monika Gause

Community Expert

Please show the ontents of the layers panel.

What's inside the layers is important for us.

If this wordmark is done properly then all you would need to do is make a compound path and apply it as a mask.
