Curvature Tool Path, one corner isn't sharp

Forum|Forum|5 years ago
September 10, 2020
1 reply
792 views

Hi,

I've drawn a path using the curvature tool and made some sharp corners, however for some reason one corner isn't sharp, its flat, even though it has all the same settings as the others

I've tried changing the stroke corner and caps, and different size stroke but nothing works.

Any ideas? 🙂

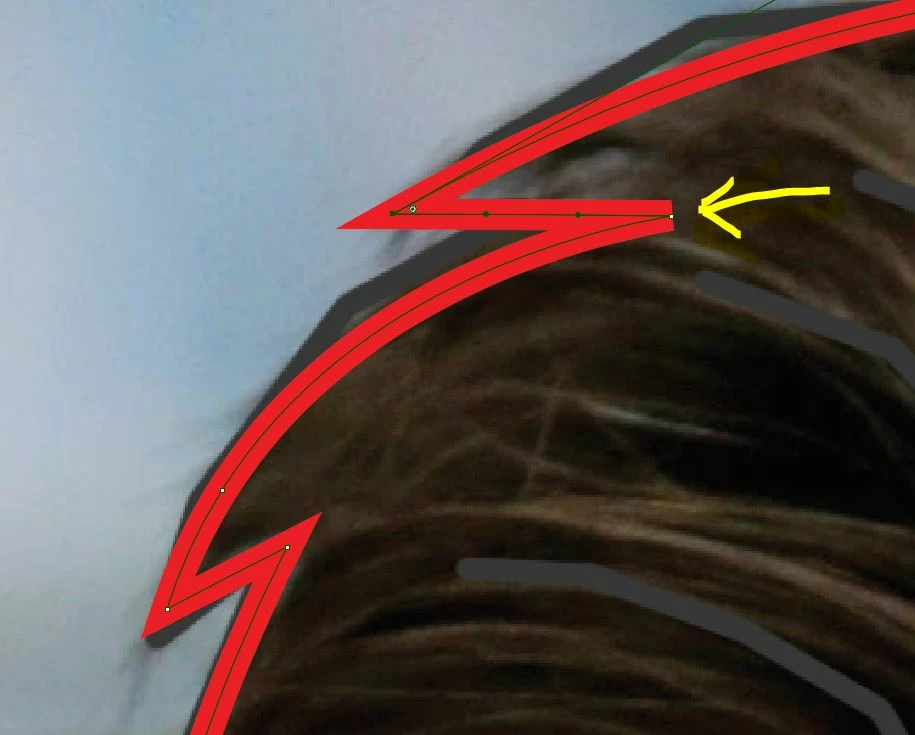

I've attached pic.

Thanks

This topic has been closed for replies.

Correct answer Doug A Roberts

The mitre limit is too low. In the Stroke panel, increase it until you see the point.

Doug A Roberts

Correct answer

Community Expert

The mitre limit is too low. In the Stroke panel, increase it until you see the point.

R

Ryo23Author

Participating Frequently

Ohh, very cool, thanks 😄

Why would that happen, is it because its more of a narrow angle compared to the others?

Doug A Roberts

Community Expert

Yes; the mitre limit means that a stroke's corner is 'mitred' off when the limit is reached.

The default is 10: this means that the corner is mitred when the point would be more than 10 times the stroke width.

The limit as a setting exists because with very narrow corners and no mitre limit, corners might extend off the entire canvas area (or be otherwise absurdly/undersirably long).
