Cutting apart a striped ball shape in sep shapes

  • September 30, 2018
  • 2 replies
  • 703 views

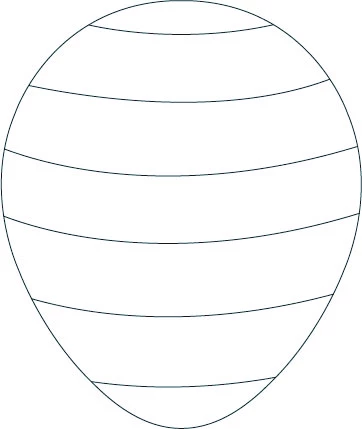

Hey there. Can someone please help me with how to cut apart a striped ball or balloon shape into separate shapes.  I've attached a sample file.  This is being sent to a laser cutter and I need to adjust for kerf, so I need the 7 curved shapes to be on their own.  I can't use the knife tool to create this because I need the curves the way I need them, not my wonky knife curve, so I had to create it with the outside balloon shape then put in the curved lines.  Is my only option to copy and paste the curved lines on top of each other, then cut the balloon wall where they intersect, join the paths, then do the same for the next shape down?

Thanks.

This topic has been closed for replies.
Correct answer tromboniator

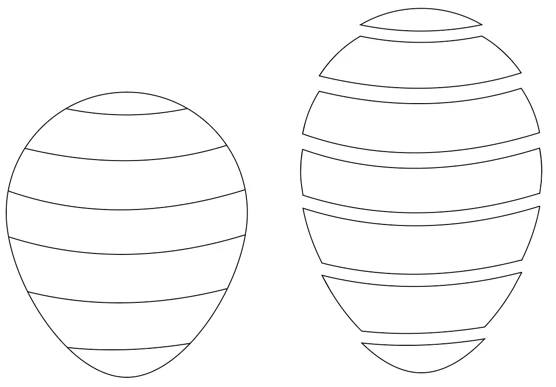

Is this the sort of thing you're looking for?

Select it all and click inside each segment with the Shape Builder Tool. Don't drag through them, or it'll just join them all.

Edit:

Shape Builder icon, in Tools panel/

Peter

2 replies

Ton Frederiks
Community Expert
Community Expert
September 30, 2018

Pathfinder > Divide ?

Suzanne23Author
Participating Frequently
September 30, 2018

Thank you, but the first answer was perfect.  Just what I needed.

tromboniator
Community Expert
tromboniatorCommunity ExpertCorrect answer
Community Expert
September 30, 2018

Is this the sort of thing you're looking for?

Select it all and click inside each segment with the Shape Builder Tool. Don't drag through them, or it'll just join them all.

Edit:

Shape Builder icon, in Tools panel/

Peter

Suzanne23Author
Participating Frequently
September 30, 2018

Oh my!  That is EXACTLY what I needed!  I have been searching for days and have not found this answer.  Thank you thank you thank you!

Sue

tromboniator
Community Expert
Community Expert
September 30, 2018

You're welcome, Sue. Ton's answer is probably better, at least faster, but I've been using the Shape Builder Tool today and have it on the brain. I'm glad you have something that works.

Peter
