discard white over print in output

  • May 11, 2018
  • 3 replies
  • 15617 views

In my AI document discard white over print in output option enabled but it's not discard white text over print after converting pdf, so can you please help me how to solve this issue

    This topic has been closed for replies.

    3 replies

    Stephen Marsh
    Community Expert
    Community Expert
    May 16, 2018

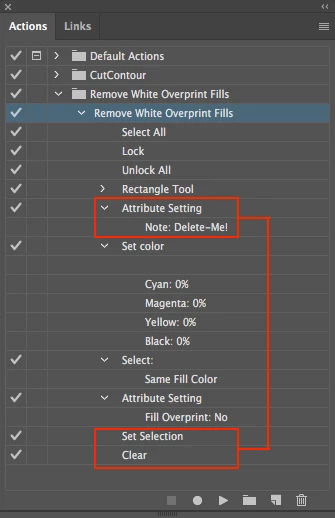

    Here is an example action that removes the overprint setting for any fill that contains white. Strokes would be handled in a similar fashion. This would not account for blend modes such as multiply.

    The action basically adds a new temporary object marked with a note, sets it to white, then selects all objects with the same white colour and then removes the overprint setting – then it will select only the temporary object marked with the note and deletes it.

    I have not put it through exhaustive testing, however preliminary tests appear to work as expected.

    NOTE: Global process CMYK white swatches with a name other than “White” will not be selected in this action! The Edit > Edit Colors > Overprint Black command does not have this limitation, however it can’t be recorded into an action.

    Mario Arizmendi
    Legend
    May 16, 2018

    Stephen

    then it will select only the temporary object marked with the note and deletes it.

    I am wondering how to reselect only that temporary rectangle with the note, i cant find any option under the select /same or Select/Object menu to do that. (i have Ai 2017)

    Can you show please

    Monika Gause
    Community Expert
    Community Expert
    May 16, 2018

    It's in the Action panel menu.

    Stephen Marsh
    Community Expert
    Community Expert
    May 14, 2018

    White Overprint | Illustrator CC

    When printing, the knock out was not previewed in the print window preview… but the actual output was indeed knockout and not overprint.

    Switching between GPU preview and Overprint Preview can help to identify this visually.

    This also works with a Save As - PDF, which was not clear from the link to the Adobe page.

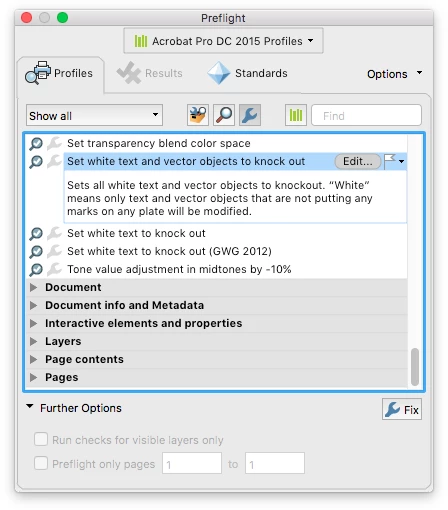

    If your file is a PDF file, then Acrobat Pro has a Print Production Preflight Fixup for this:

    Participating Frequently
    May 15, 2018

    Hi,

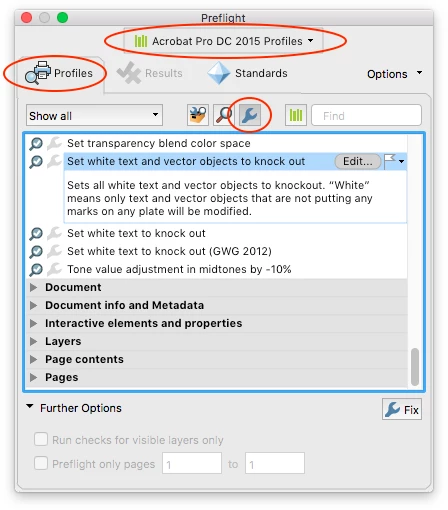

    Where can i get below Preflight dialog box, in my Adobe CC PC version not showing the same.

    So please help regarding this asap

    Stephen Marsh
    Community Expert
    Community Expert
    May 15, 2018

    Keep in mind that this will not affect the Illustrator portion of a PDF saved with Illustrator compatibility/include AI file in the PDF…

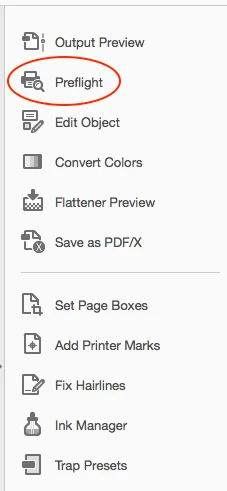

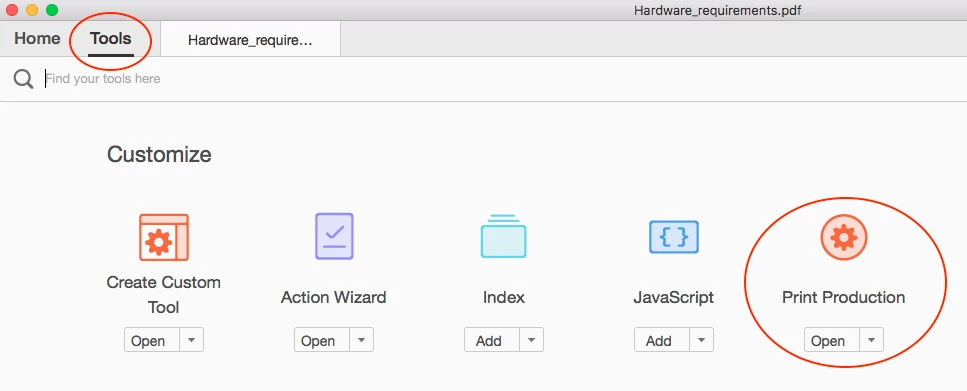

    Tools > Print Production > Preflight (Profiles/Fixup)

    Monika Gause
    Community Expert
    Community Expert
    May 11, 2018

    it's always best to completely delete white overprint instead of relying on automatisms.

    Since you didn't post any details on the exact nature of your objects: you will need to use the appearance panel and the attributes panel.

    Participating Frequently
    May 11, 2018

    Hi,

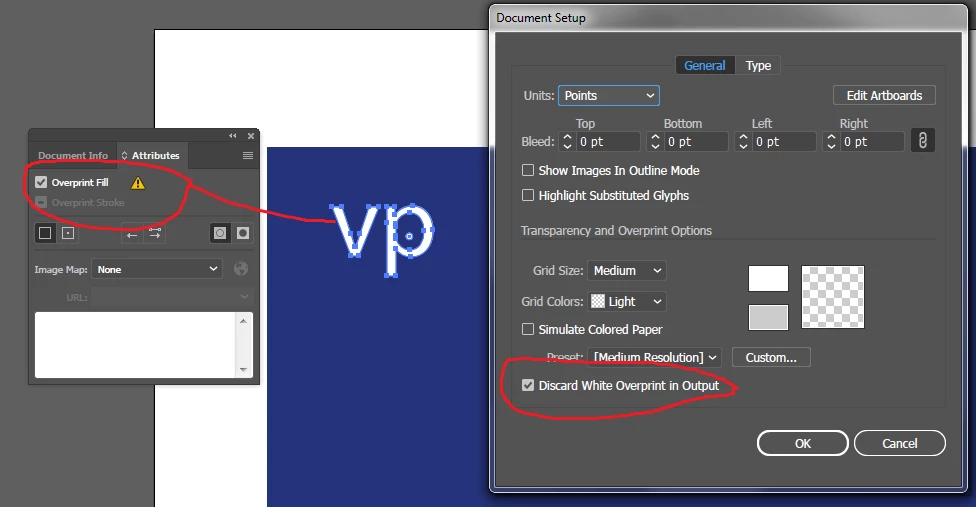

    My problem is i have received one AI file from my customer, so in that file customer used some white text elements used as over print which is technically wrong, so while outputting my file (pdf) white over print text was not coming in my output file, so in now AI version in document setup there is option discard white option (pls ref below image) so i have used the same but after converting pdf with same option still white over print text not discard, so how to solve this issue.

    Monika Gause
    Community Expert
    Community Expert
    May 11, 2018

    Would need the file to test this.

    The easiest solution would be to set the white to not overprint in the file.
