double sided linear gradient

Forum|Forum|8 years ago
May 8, 2018
4 replies
4700 views

Hello,

I need to reproduce this effect.

It seems very simple, but I can't find how to do it. The blend tool didn't give me a satisfying result.

The result should be a vector, so I try to avoid effects.

Ideally I should have a gradient on both sides, but it should be a rectangle shape, so I can't use radial.

What am I missing?

gradient

This topic has been closed for replies.

Mario Arizmendi

Legend

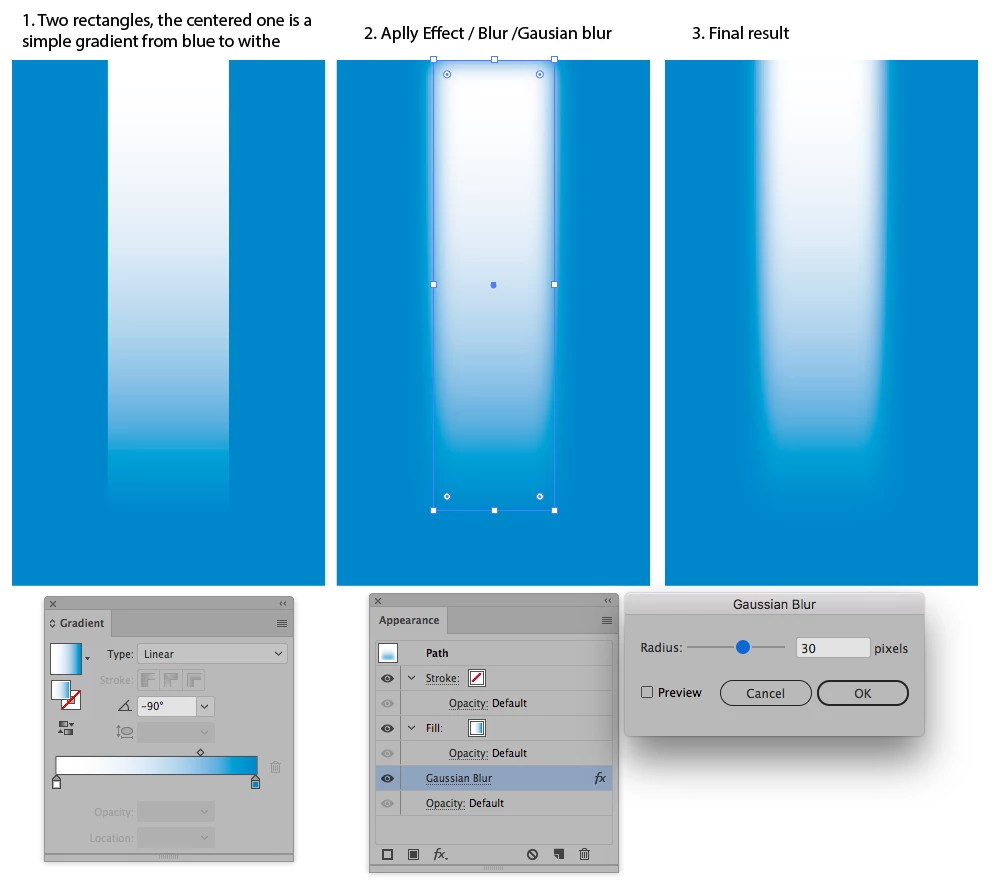

Here is another way to do it

JETalmage

Inspiring

Mario, you're using a raster-based effect, which carolined38383620 expressly is trying to avoid.

JET

JETalmage

Inspiring

In the Appearance palette, simply apply two grad fills to the object. Set the opacity of one of the stops of the topmost fill to 0.

Complex gradients always get rasterized one way or another, so insisting on vector-ishness is pretty much a moot point.

Not so. In a very generic sense, everything destined for print eventually becomes rasterized before ink hits paper. But vector-based grads have been a normal Postscript construct since the beginning, transparency support was added later, and Mesh grads after that. Even Mesh grads remain vector objects up to the RIP.

All you have to do is try it. Create the two-fill object as explained above. Save a Copy as a PDF (without Illustrator editing retained). Open the resulting PDF in Illustrator and tear it apart. There will be no raster objects.

JET

PCreater

Known Participant

I can't understand how you did this with gradients only. Will you please explain more.

L

Lhemz0527

Participating Frequently

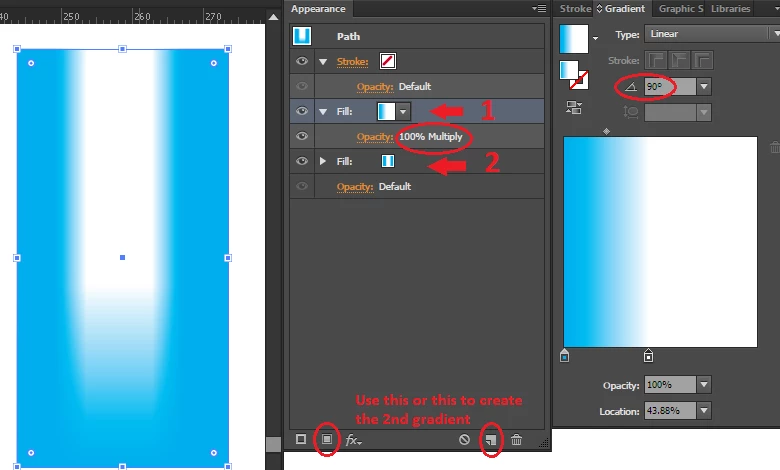

Go to the appearance panel.

Select Fill and setup the first gradient colors.

Then create a new one or duplicate the 1st gradient.

Change the gradient settings including the rotation and transparency blending mode (Multiply).

ShakeN93

Inspiring

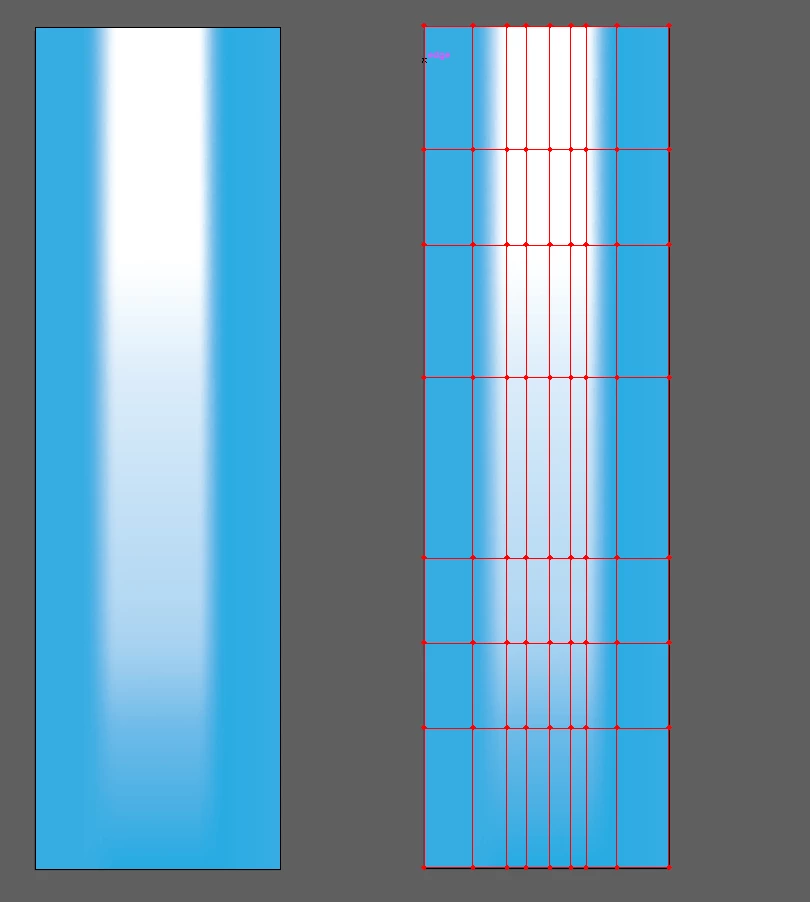

Maked with Mesh Tool :

carolined38383620Author

Participant

Thank you so much!

jane-e

Community Expert

Hi Caroline,

Illustrator?

Photoshop?

InDesign?

Something else?

carolined38383620Author

Participant

Hi,

I need to do this in Illustrator.

Mylenium

Legend

Complex gradients always get rasterized one way or another, so insisting on vector-ishness is pretty much a moot point. As soon as e.g. it gets turned into a PDF it will be pixel data. Anyway, if you insist, a simple horizontal gradient combined with a vertical gradient e.g. in a knockout group might do the trick. Otherwise a simple gradient mesh would work just as well.

Mylenium
