Question

DXF Import Misaligned

  • July 9, 2020
  • 1 reply
  • 337 views

I'm trying to help one of my colleagues out with the below issue.

My version of Illustrator CC 22.1 is actually importing these files perfectly, however hers is not. For some reason whenever she opens these files, the text in the DXF is mis-aligned.

Note I also open these files on my iPhone using DWG FastView and they also always display perfectly, so it appears to me to be an issue unique to her Illustraor setup?



We've also tried other similar DXF files which display correctly in my Illustrator setup but not in hers.



See attached:

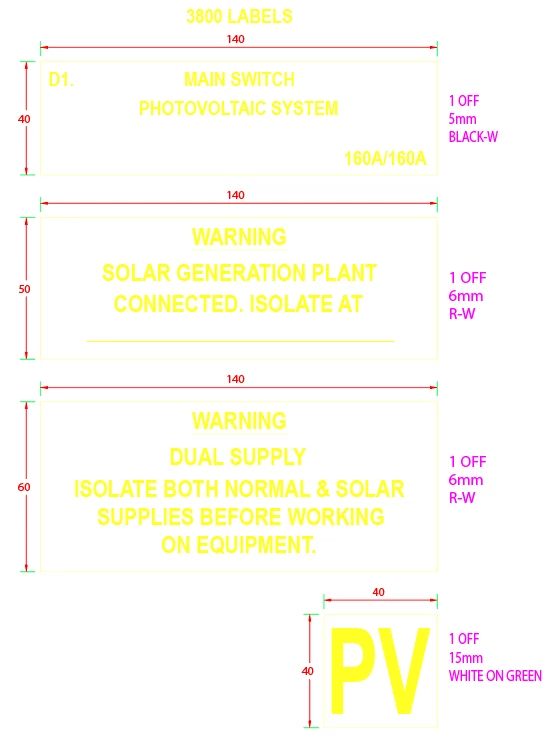

1) Screenshot of how it is displayed perfectly in my version of Illustrator (white background)

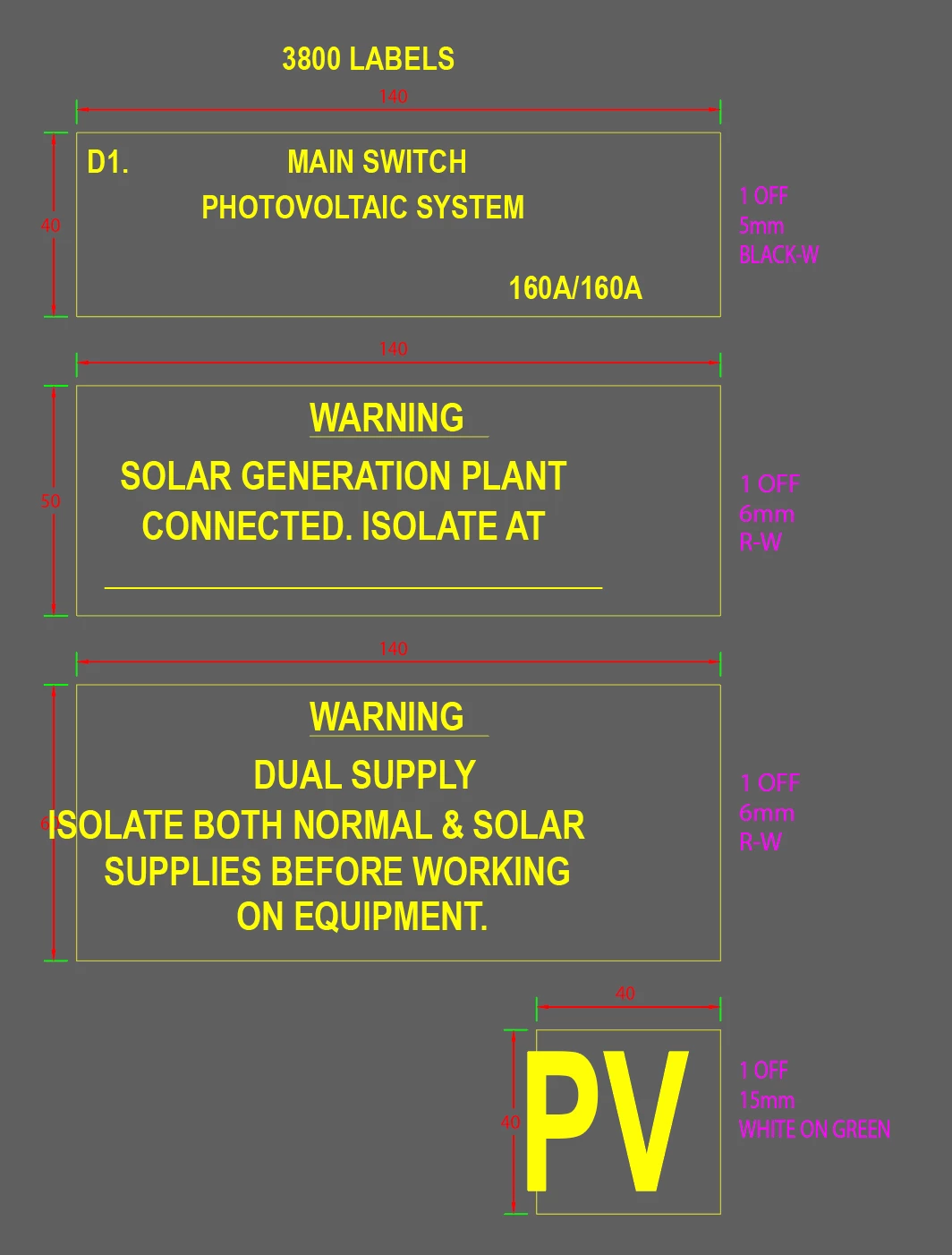

2) Screenshot of how it is displayed when she opens it up in her version of Illustrator (grey background)



I tried to attach the DXF as well but the forum wouldn't allow me to do this.



Any tips would be appreciated.

This topic has been closed for replies.

1 reply

Kurt Gold
Community Expert
Community Expert
July 9, 2020

Which version of Illustrator is your colleague using?



You could share the .dxf file by using a file sharing provider (Google Drive etc.)

July 10, 2020

My colleague is using 24.2 with June 2020 updates. She had also tried 23 from early 2019 but gets the same results.

See below link to the DXF in question via Google Drive:

https://drive.google.com/file/d/1u7X151-zWMMUU7_yUm-hK_sTPj_Lpgmf/view?usp=drivesdk
