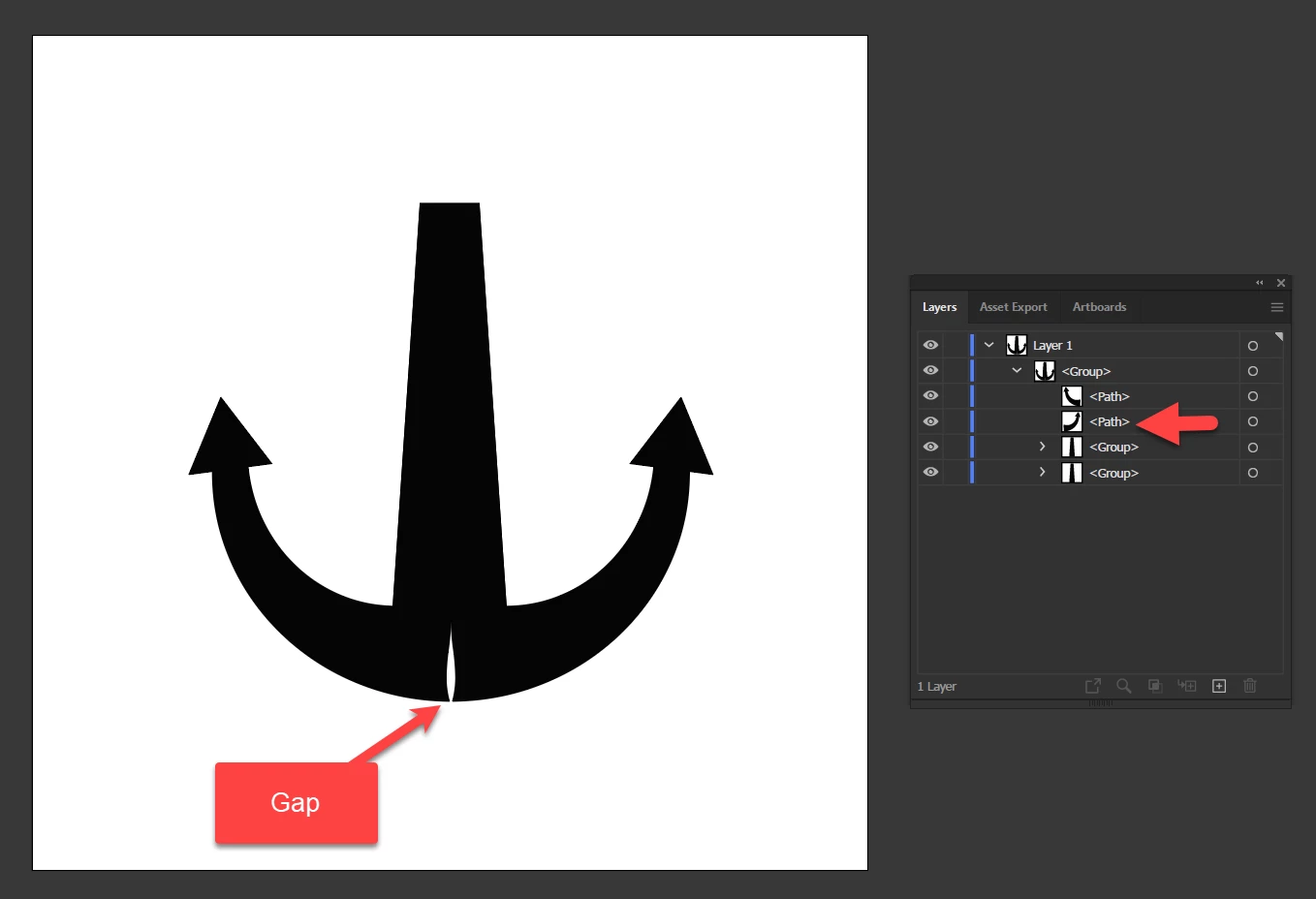

Editing Issue

Hi @MahaB82A

@Monika Gause has already told you the three best ways.

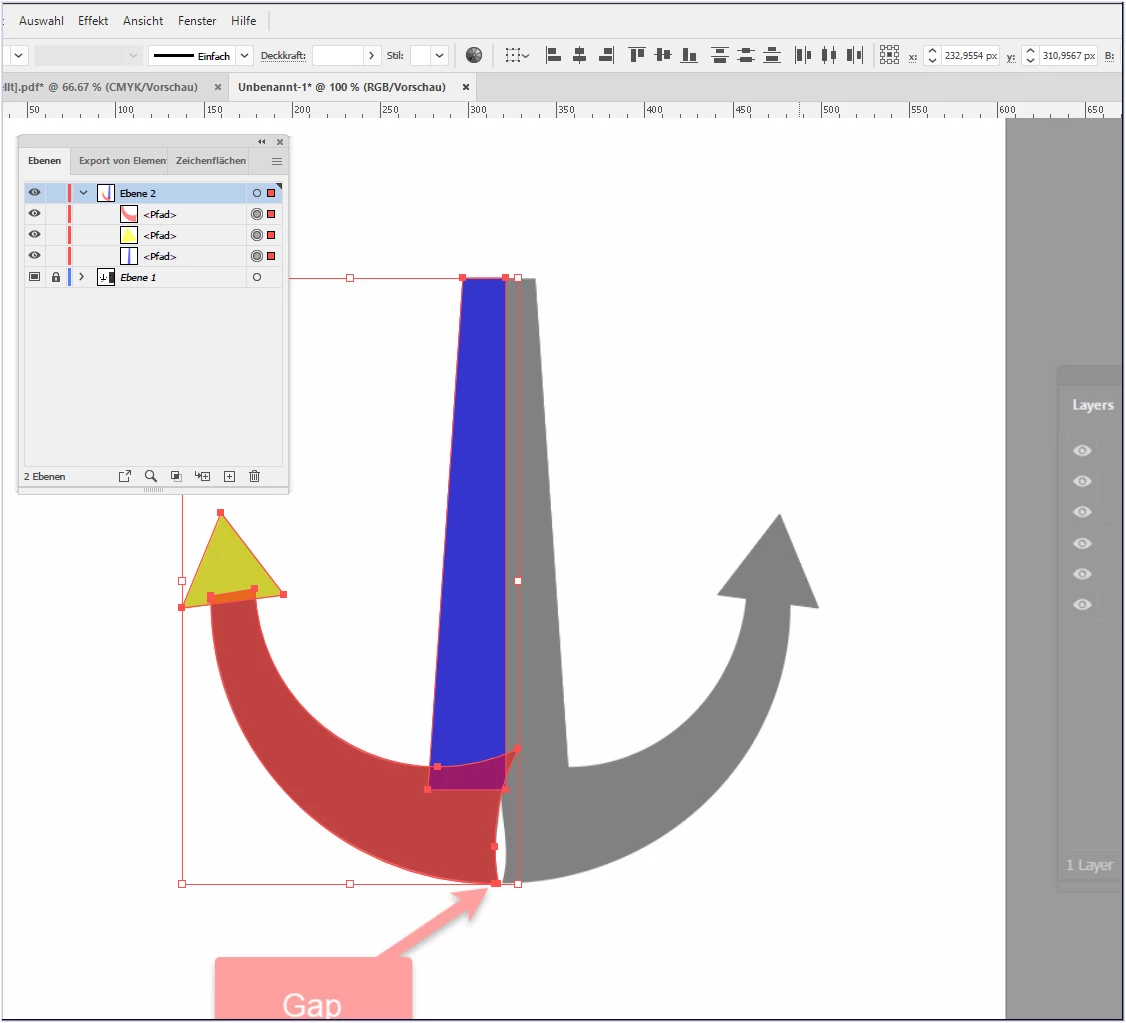

Here is the "Effect-Way"

• draw all your elements on the left side

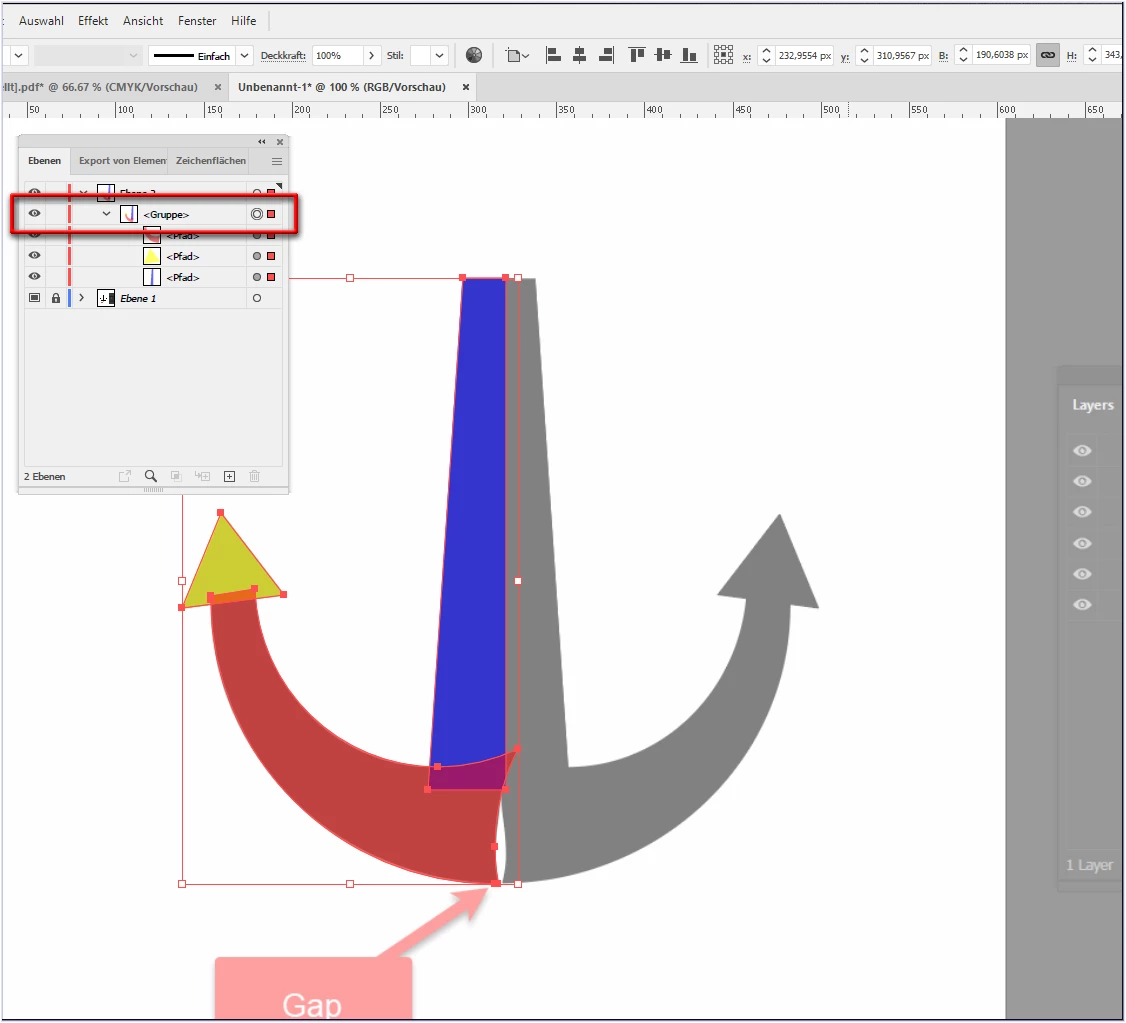

• group these elements

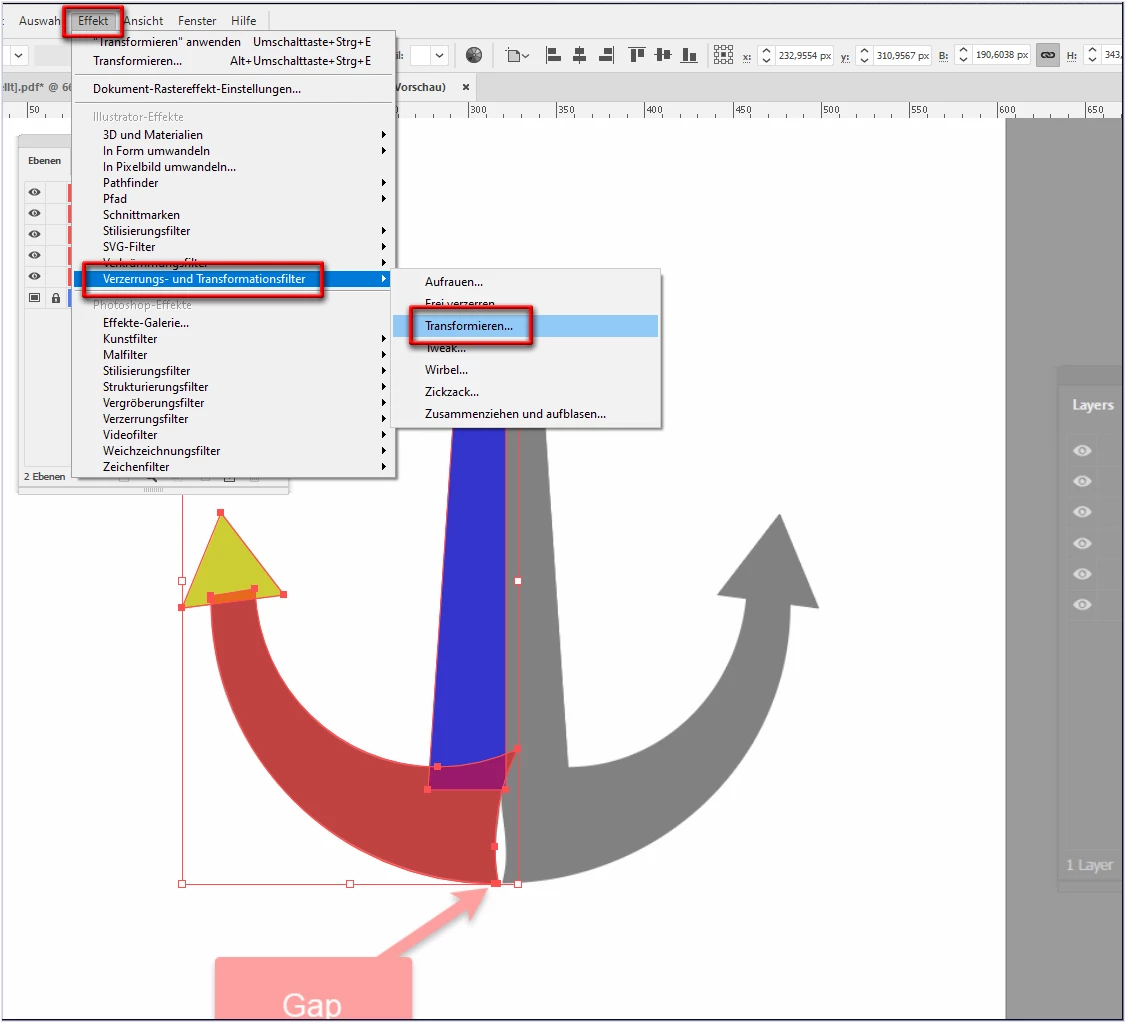

• menu:  Effect --> Transformation filter --> Transform

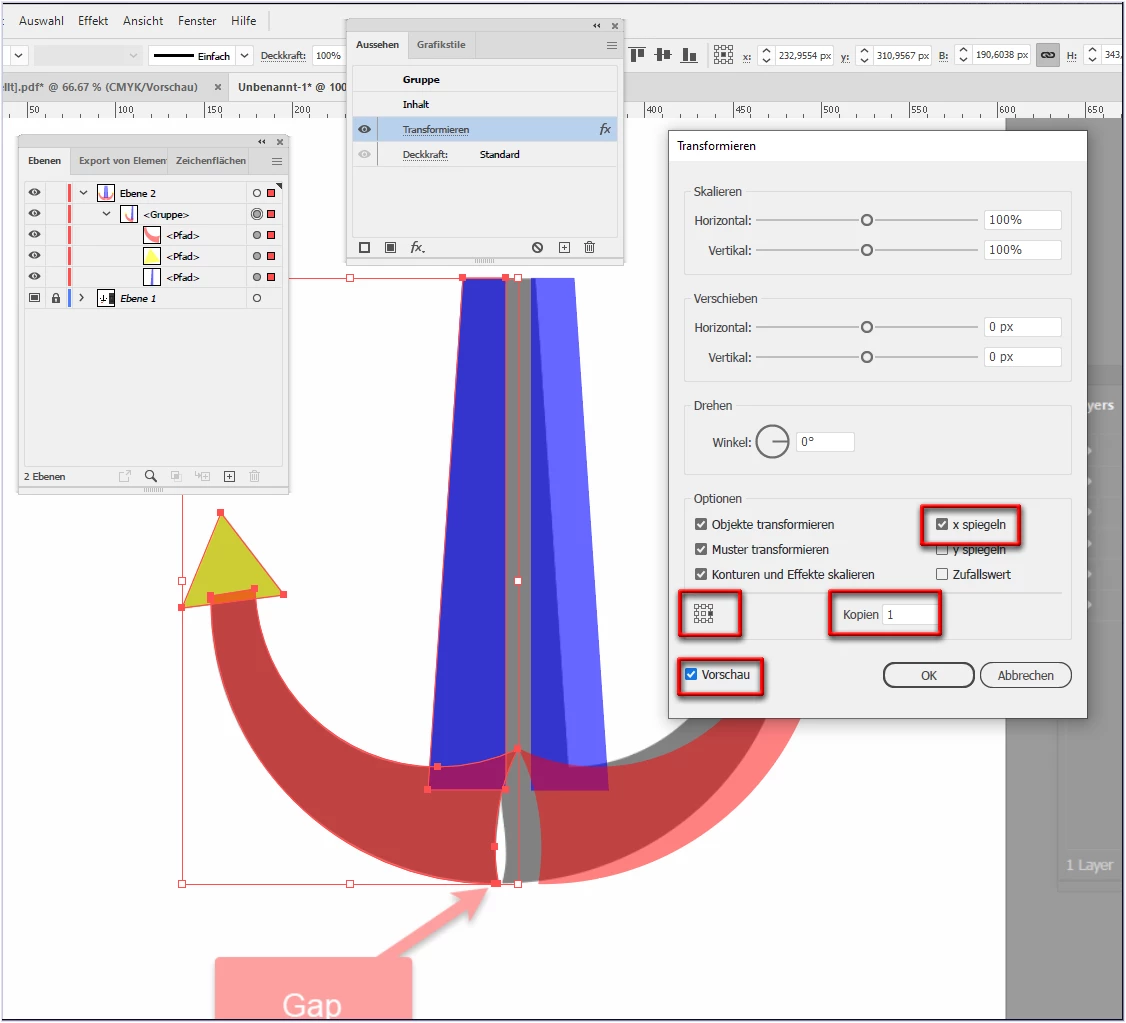

• note the settings: Reference point centre right | one copy | mirror in "X" and still tick the preview

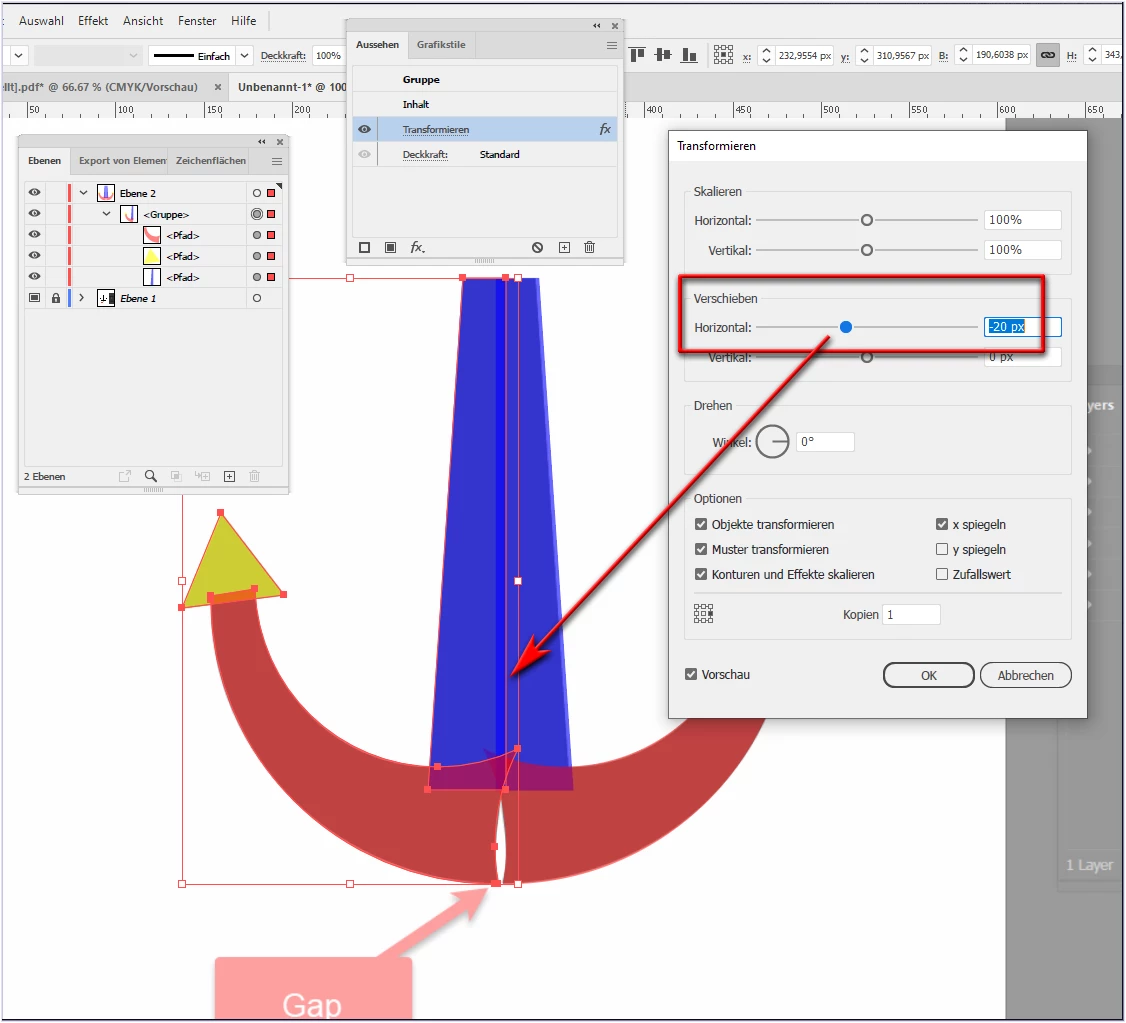

• now move the right "Live" page horizontally with the slider as desired

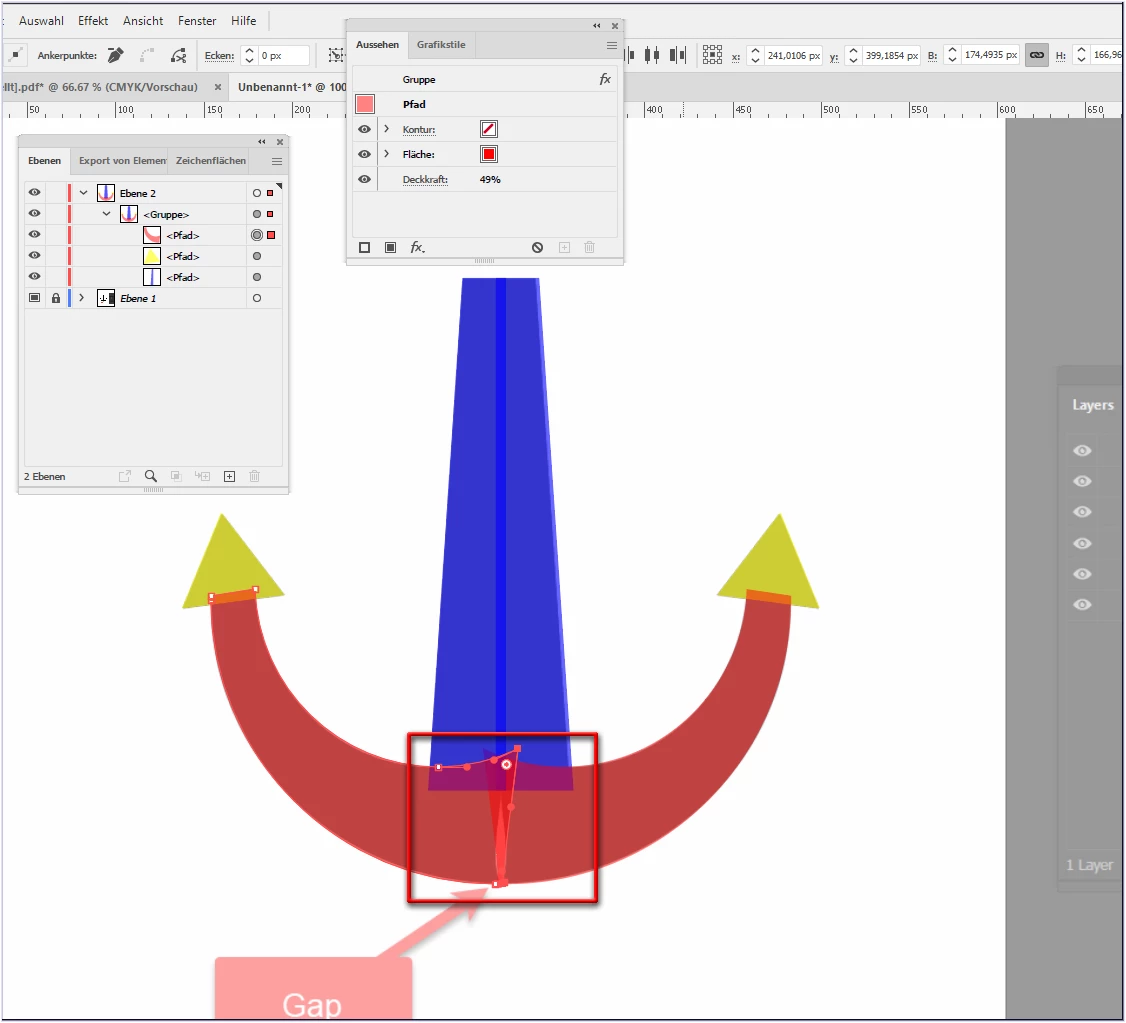

• a horizontal shift of the lower anchor point (and a change on its "grip line") closes the gap
  Always be careful with the rightmost anchor point - this is where the mirror axis is.

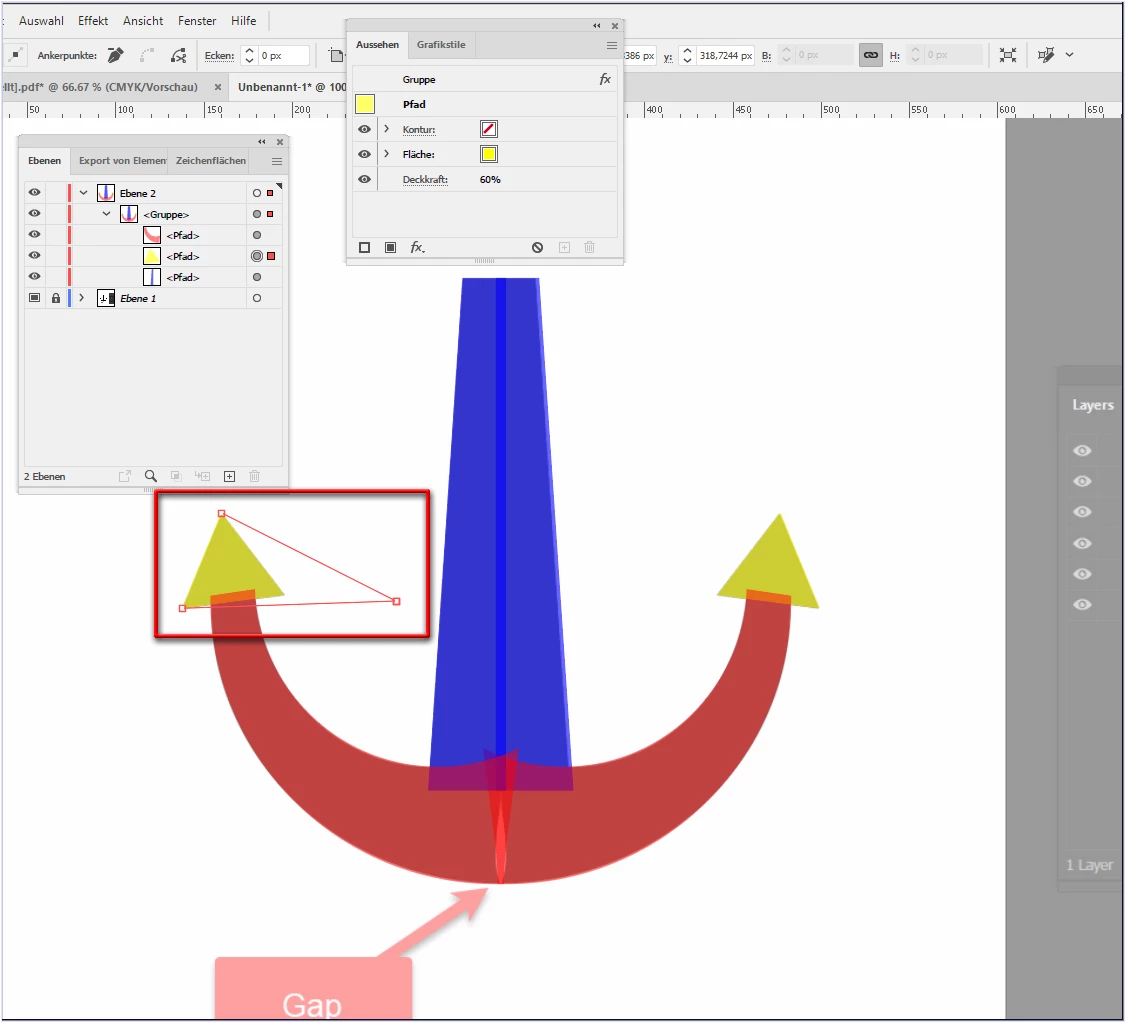

• as soon as you change something on the left side ...

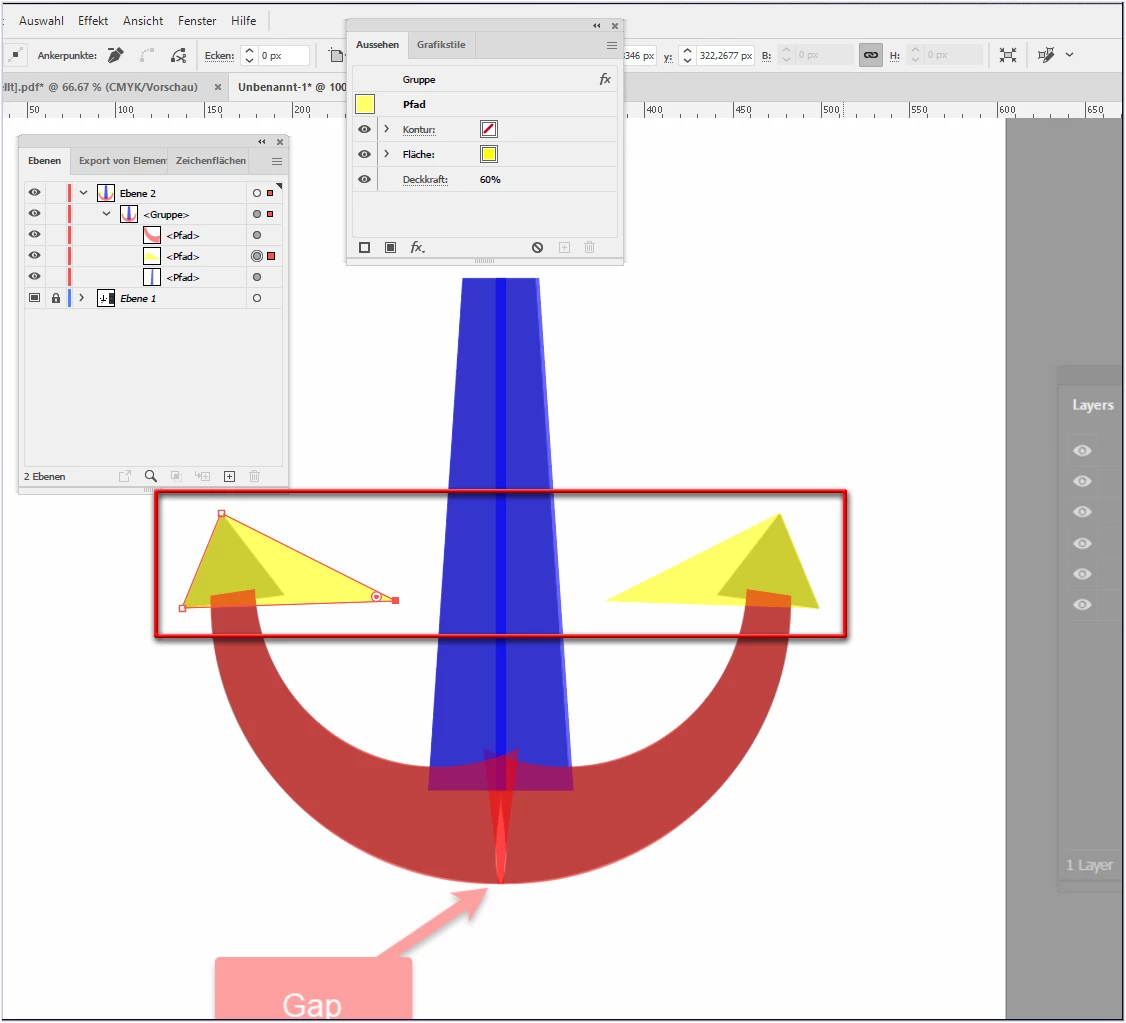

• the right side always follows all changings on the left side

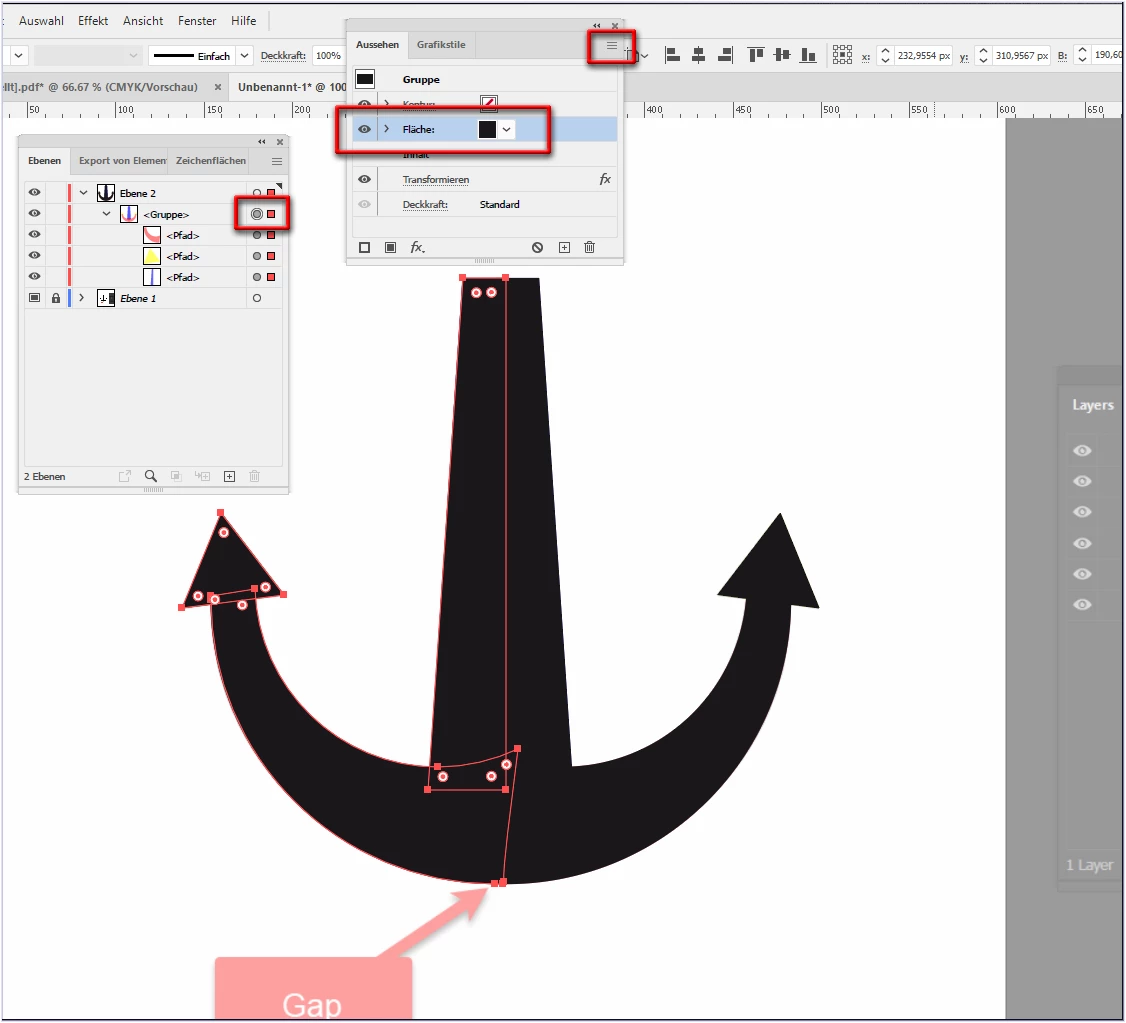

• simple add a new fill for the whole group in the options in the Appearance Panel and colored black

• still single paths and full editable

If that works for you
have fun

😉

Hello @MahaB82A,

Thanks for reaching out. I hope the suggestions shared by Monika helped answer your queries.

Feel free to update this thread if you need further assistance. We'd be happy to help.

Thanks,

Anubhav

You have copied that path, so what you want, is not possible.

It would be possible, if you either:

- create symbols and then work with them. So each of your branches would be a symbol, then you edit the symbol and the instances update

- use the Repeat function for the mirroring

- use the transform effect (with copies turned on) for the mirroring
