Elements are not exporting properly when exported to SVG in Illustrator

  • September 2, 2021
  • 2 replies
  • 2475 views

Hey!

I have an issue with built-in export feature, and was trying different ways to resolve it.



There is AI file with artboards, each of them has building plan (from AutoCAD).

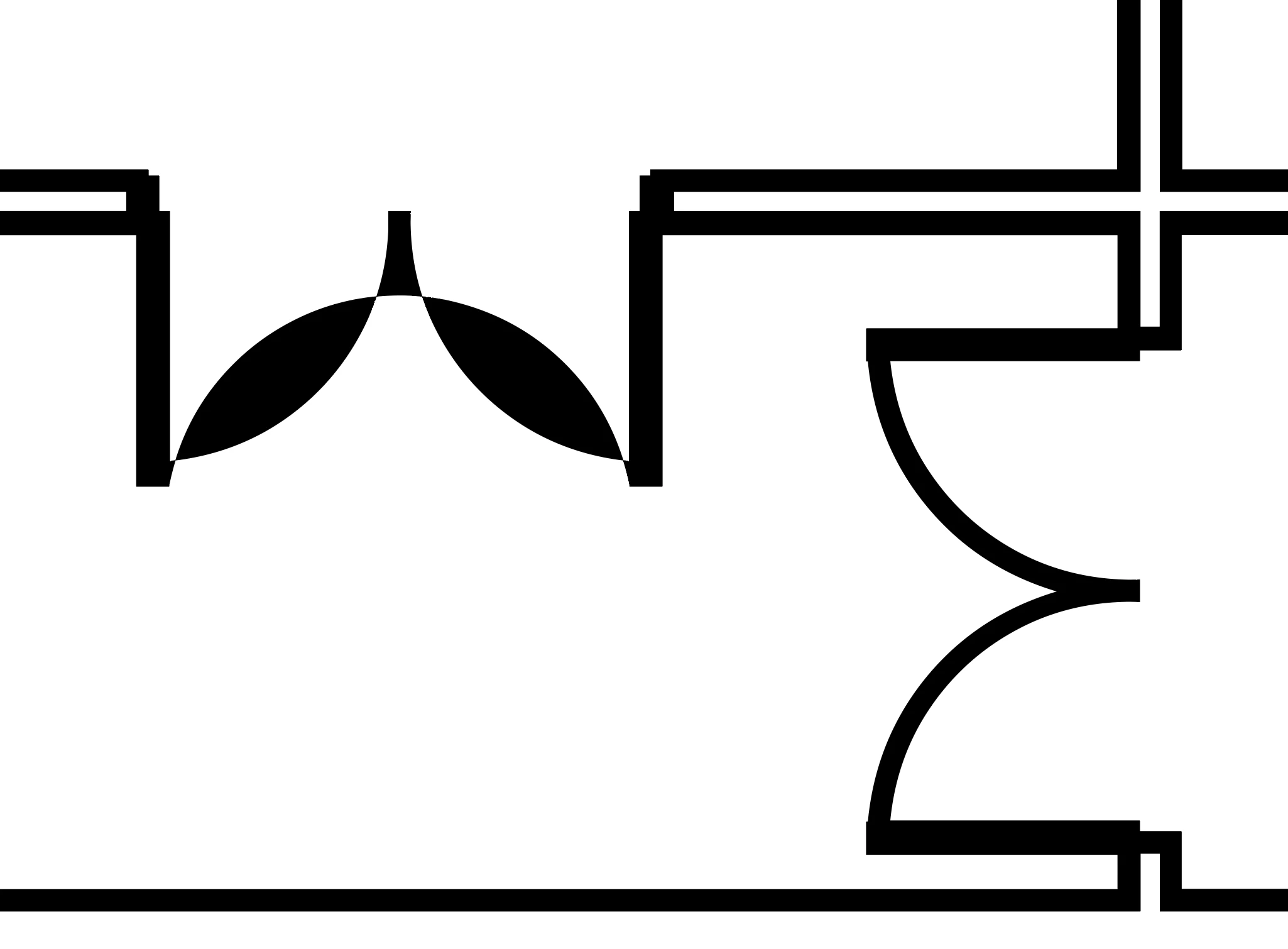

When I export specific artboard as SVG, some elements (doors) are broken.













Original -> After Export

Also you can notice, that not every element breaks.



According to:
https://community.adobe.com/t5/illustrator-discussions/trouble-exporting-shape-with-points-to-svg/td-p/10720325

I checked SVG end-file, there is no <ellipse> tag. This is what happens if I add extra point.





{Renamed by MOD}

This topic has been closed for replies.

2 replies

Anshul_Saini
Community Manager
Anshul_SainiCommunity Manager
Community Manager
September 2, 2021

Hi there,



Sorry to hear about the trouble you are facing. I would like to know if the steps suggested above by @Ares Hovhannesyan worked for you? If not, I would request you to share a few more details like:

  • Exact OS & version of Illustrator
  • Is the issue related to a specific document? If yes, could you please share the document with us? You can upload it to the Creative Cloud (https://helpx.adobe.com/in/creative-cloud/help/share.html) and share the download link.
  • Are there any recent changes made to your system? For example, any antivirus, system updates, or web extensions installed recently.



Also, after you have expanded appearance, ungroup all the objects and check there are only compound paths or try moving all elements to another layer.



I'll be looking forward to hearing from you.



Thanks & Regards,

Anshul Saini

    M
    Max KvachevskyAuthor
    Participant
    September 3, 2021

    macOS Catalina 10.15.5

    Illustrator 25.4.1 (this issue was on previous version(s) too)

    No significant changes in system were made, especially recently.

    https://shared-assets.adobe.com/link/cb50f522-c457-43c5-658d-956454e43695 You can test export on this file.

    Thanks!



    Anshul_Saini
    Community Manager
    Anshul_SainiCommunity Manager
    Community Manager
    September 4, 2021

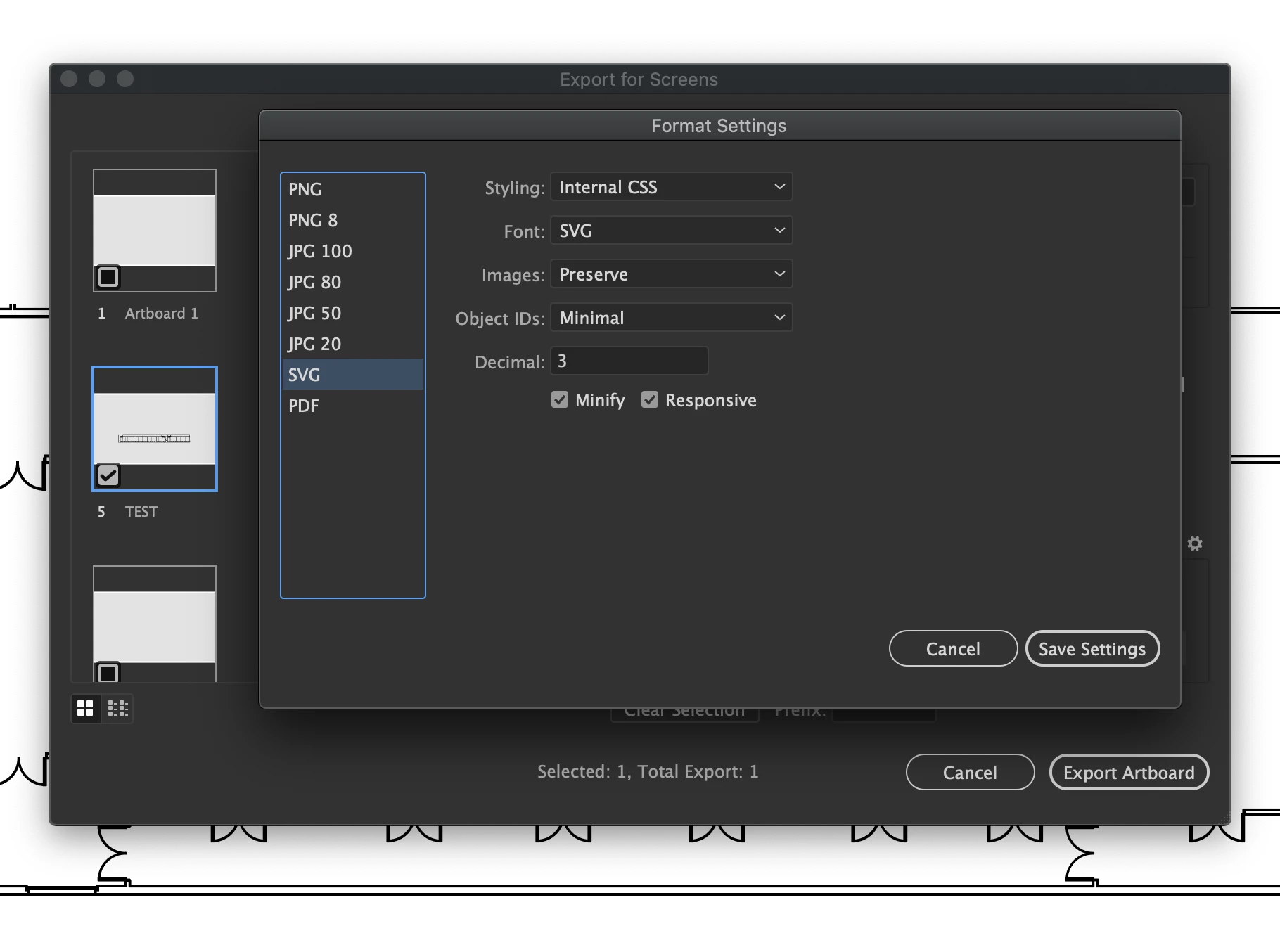

    Thank you for sharing the details and sharing the file. I tried your export setting, and I am able to replicate the issue. But if I do Collect for export as a Single Asset, I am unable to replicate this. Any particular reason you are using these export settings? Here is the exported SVG file (https://shared-assets.adobe.com/link/af72c5d0-7373-49ee-5d29-aff156f7d1fc); I tested it on different computers, viewers, and browsers. Let us know if this resolution works for you.



    Regards,

    Anshul Saini

      Ares Hovhannesyan
      Community Expert
      Ares HovhannesyanCommunity Expert
      Community Expert
      September 2, 2021

      Please try to Expand Appearance of the  objects in Ai before exporting or Outline Path of critical objects  for simplify code for SVG.

      M
      Max KvachevskyAuthor
      Participant
      September 2, 2021

      Thanks for replying. It was already expanded.
