Exporting an Illustrator file as a DXF file for quilting machine?

Question

I an trying to export a simple line drawing from Illustrator as a DXF file to use in my quilting machine's software ( Gammill's Creative Studio ) I can import other DXF files into the Gammill software easily, even some very old ones, but nothing I create in Illustrator will import. Is there a trick?

Steve Mitchel · Accepted Answer

To successfully export a DXF file from Adobe Illustrator for use in Gammill's Creative Studio, follow these steps:

Check your paths: Ensure all your lines and shapes in Illustrator are outlined paths (no strokes or fills).
- Select your artwork, go to `Object` > `Path` > `Outline Stroke`.
Save as DXF:

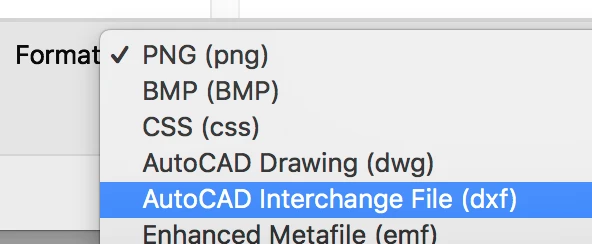

- Go to `File` > `Export` > `Export As`.
- Choose `DXF` as the file format and click `Export`.

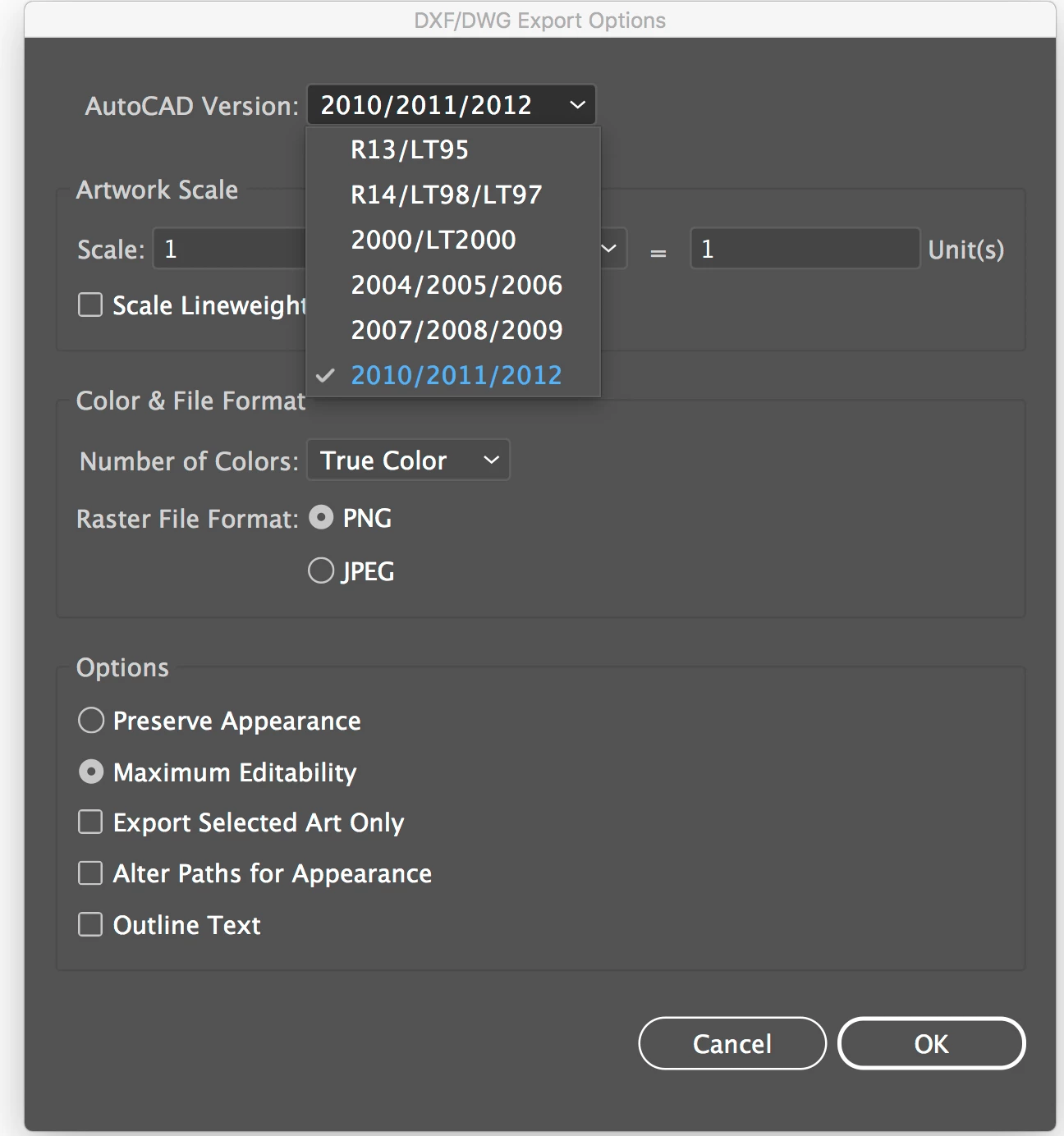

DXF Options:
- In the DXF Export Options dialog box, set the following options:
- Version: Choose `AutoCAD 2000/LT2000`.
- Options: Check `Export Selected Art Only`.
- Units: Choose `Millimeters` (or the unit you prefer).
Simplify the file:
- Before exporting, simplify your artwork by removing any unnecessary points or elements. Use the `Simplify` tool under `Object` > `Path` > `Simplify`.
Test with different settings: If the above doesn't work, try exporting with different DXF version settings (like AutoCAD R14) in the DXF Options dialog.
Import into Gammill's Creative Studio: Now, try importing the DXF file into your quilting software.

Following these steps should help ensure that your Illustrator-created DXF files are compatible with Gammill's Creative Studio.

Art Rider 63 · Answer

So did you every have any luck with this? I've been able to successfully create blocks, but finding creating pantographs tricky. the pattern works but the import function seems to need to add a "trim line" that is preventing the file from joining correctly. We're using "Quiltmagine" from the Grace company. I know they have an upgrade that will allow us to create/edit the file, but it's a $2000 upgrade.... ouch.

If anyone has any tips or tricks, I'd love to hear them.....
