Filling "Complex" vector with background image

  • January 17, 2023
  • 1 reply
  • 933 views

I have a line image drawing that I would like to fill with a camouflage type pattern that I currently have in .png. I understand that by using clipping mask on a simple vector I can fill a simple vector path with my pattern, so by applying that concept I converted my line drawing to a vector, which is now a combination of multiple paths by using image trace, ignoring white to get rid of the bound box. I then make a compound path, selecting place to add my pattern to the tab, send my pattern to the back using arrange, and then selecting both layers with my vector in front I apply clipping mask. Instead of the inside of the vector being filled with the pattern, it turns the lines that were black into the camo pattern. I must be missing something obvious, but I'm fairly new to illustrator so any help is much appreciated!

This topic has been closed for replies.
Correct answer SJRiegel

Instead of Select All, make a copy of the outer stroke only, and use it for your clipping path. The clipped pattern can then sit below your black outlined art.

1 reply

Monika Gause
Community Expert
Community Expert
January 17, 2023

Please post a screenshot of this. Preview as well as outline mode (View > Outline) Please use the forum's web interface for posting the images.

ThomasJ88Author
Participant
January 17, 2023

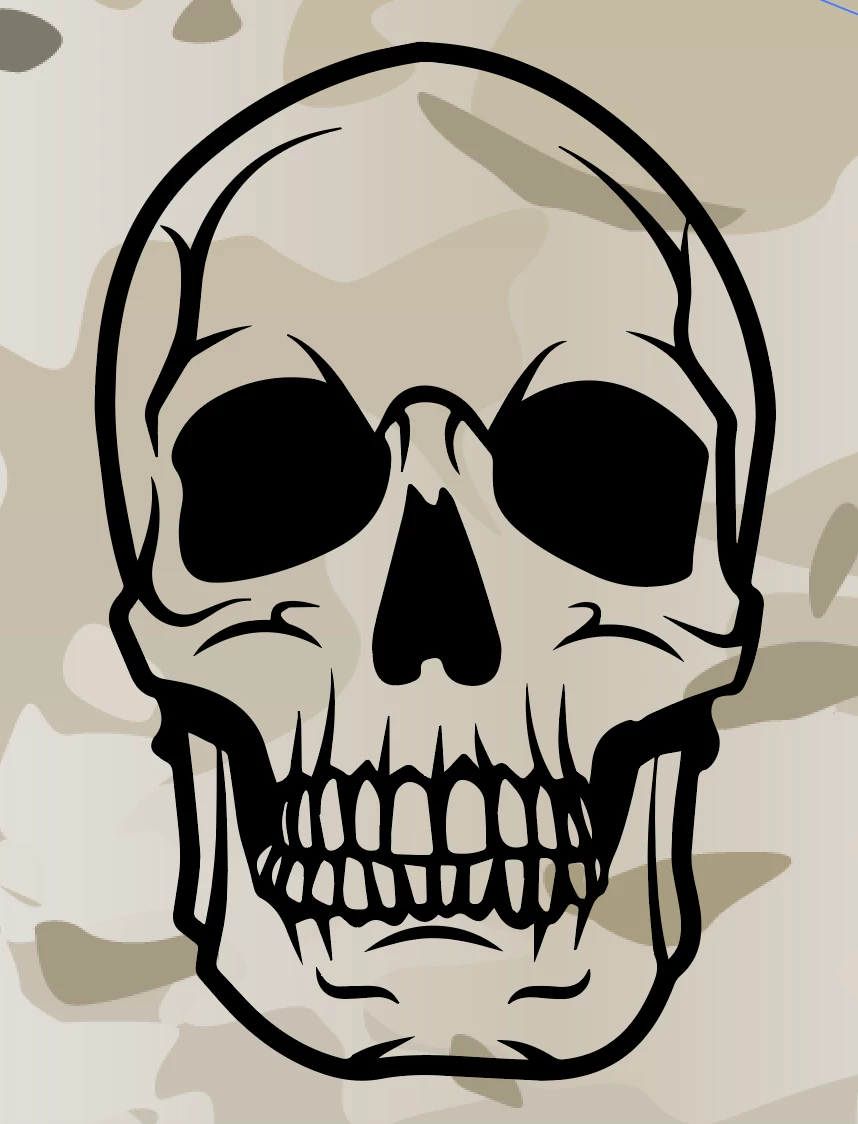

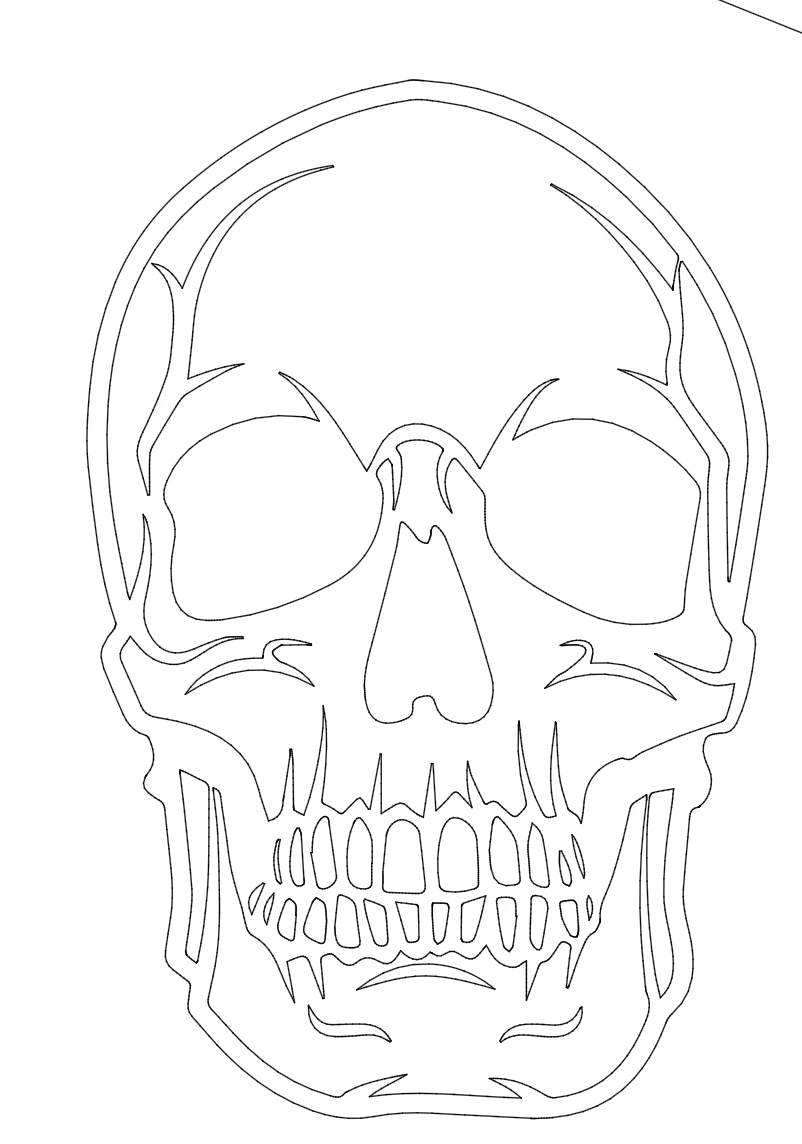

Pictured are the final results in preview and outline. The image is originally a black line drawing. I am looking to fill what the white in this with the tan camouflauge background that has now replaced the black line, and retain the black line drawing. The last attachment is what I am refering to, but I do not want the background extending past the line drawing.

michelew83603738
Community Expert
Community Expert
January 17, 2023

I would select all, convert to live paint and then the white part (which I believe is what you want to put the camo in) you could select with the live paint selection tool and then fill with the camo.
