Flower of life pattern based on hexagonal grid

Forum|Forum|2 years ago
January 5, 2024
4 replies
749 views

Hi , i am creating flower of life pattern based on hexagonal grid. It needs to be precise but there are certain problems.

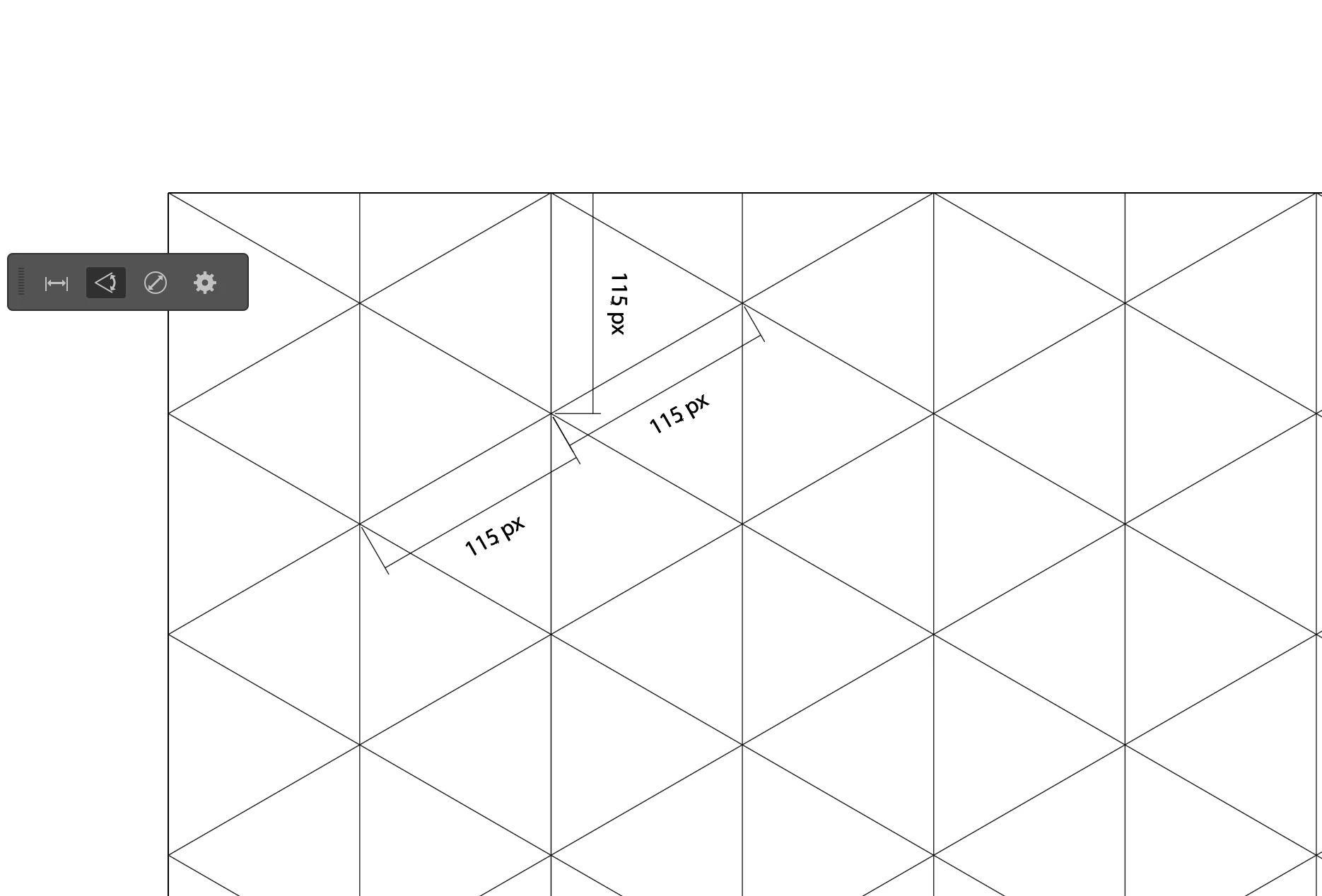

I created 60 degree angles 2 grids, then created vertical lines grid.

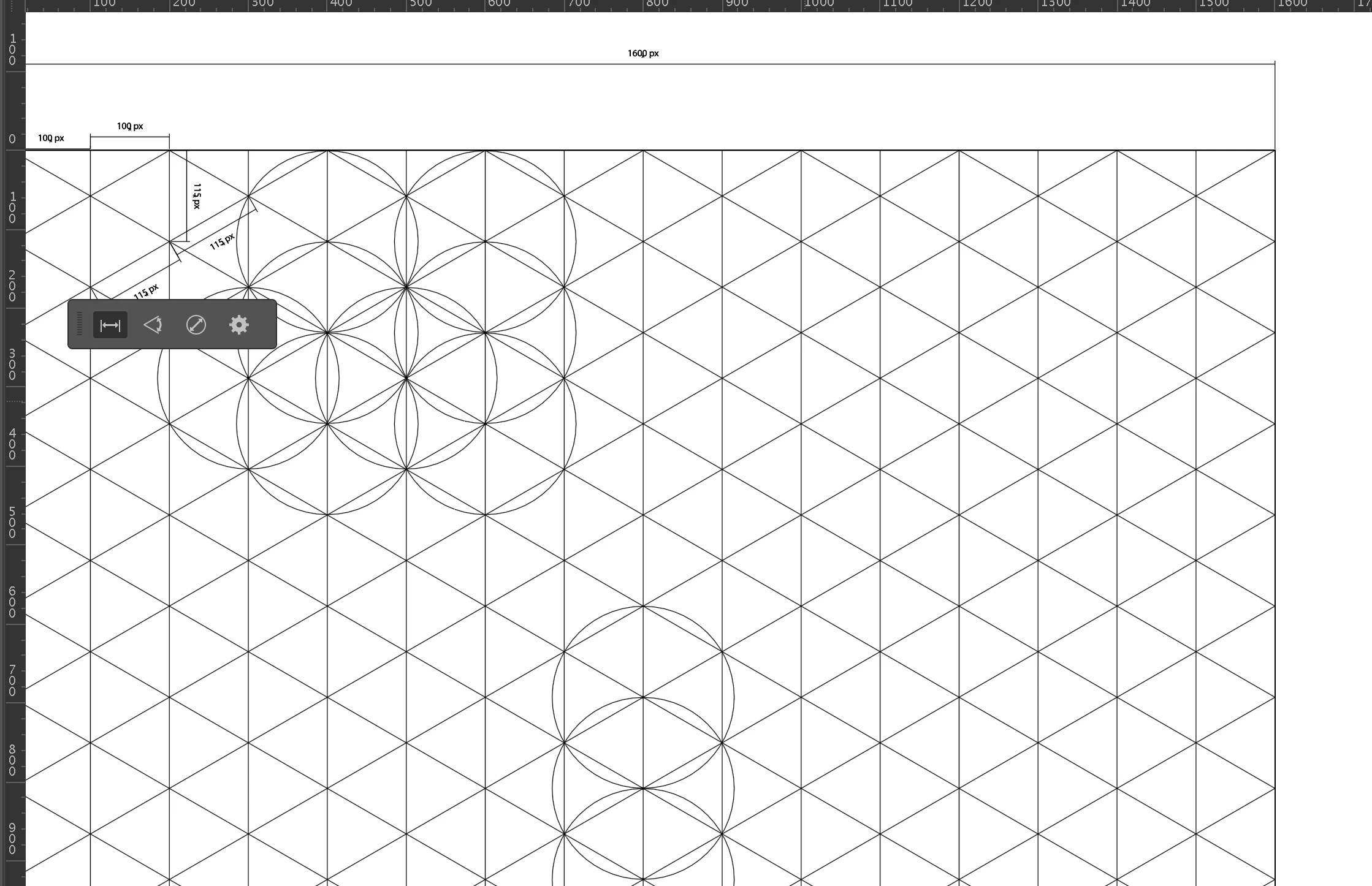

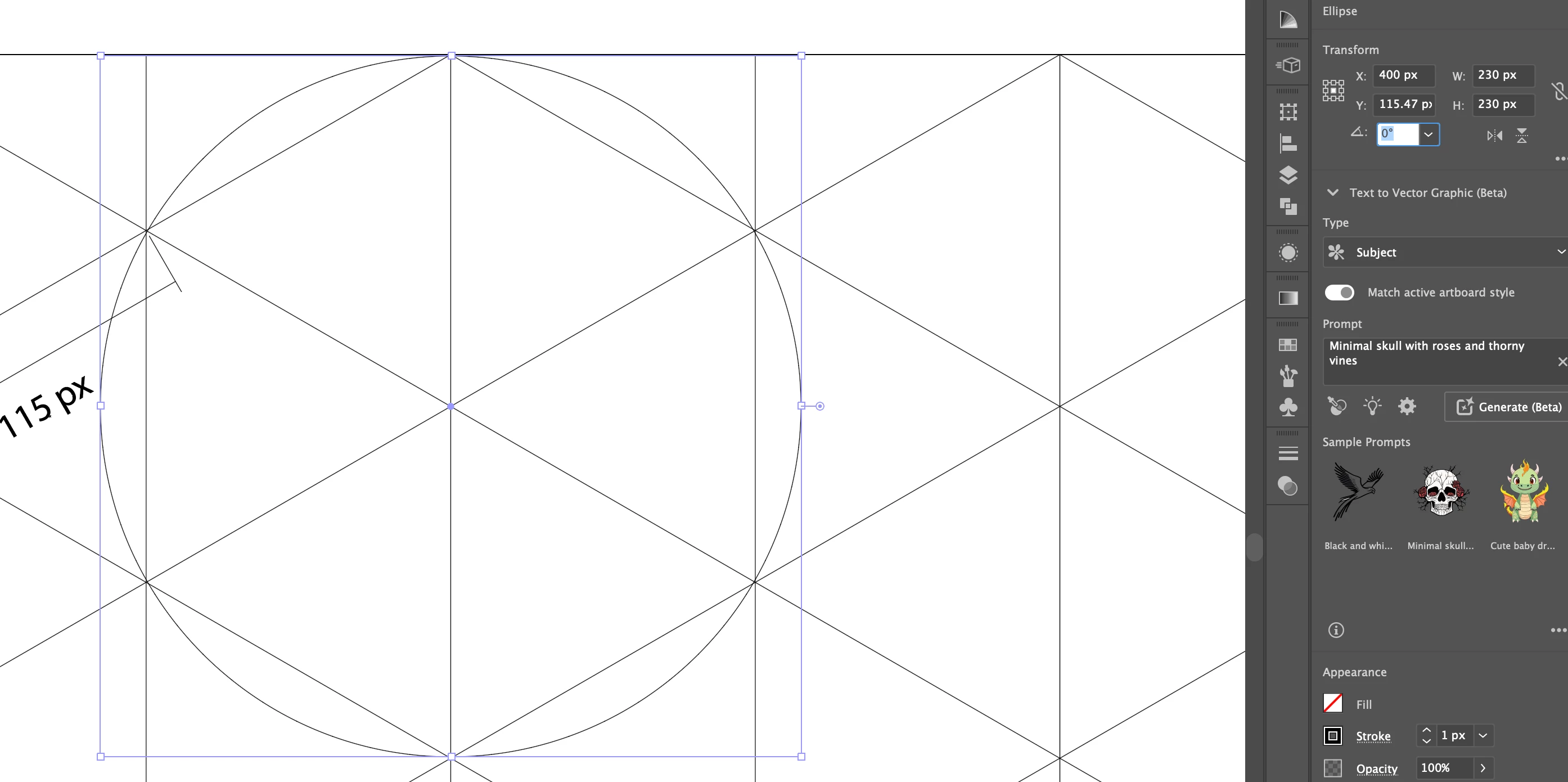

115 px is a radius of my circles which equals to 230 px of hight of width. When I draw a circle 230 px from the centre of the hexagon it does not touch the corners of the hexagon, please check pictures below.

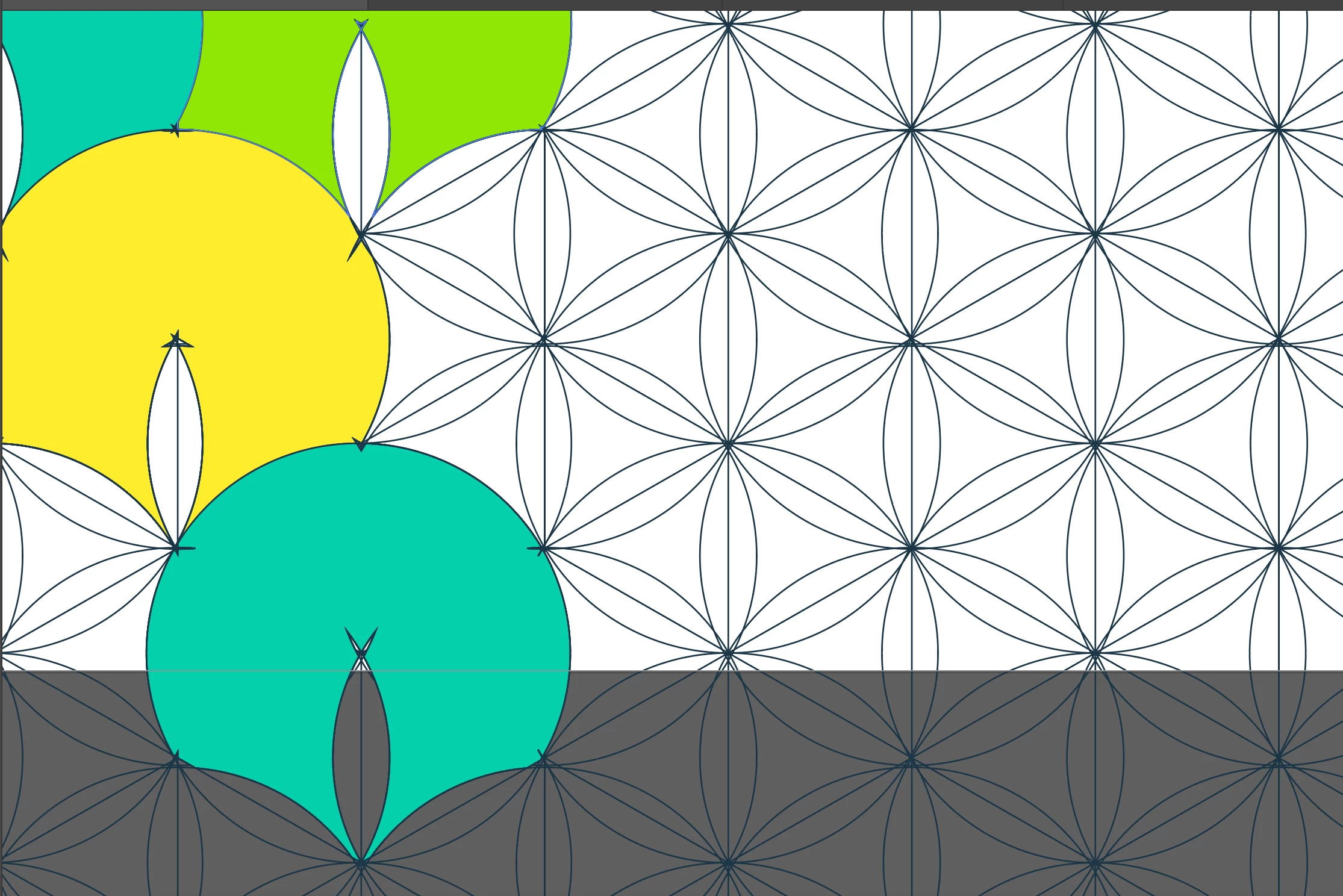

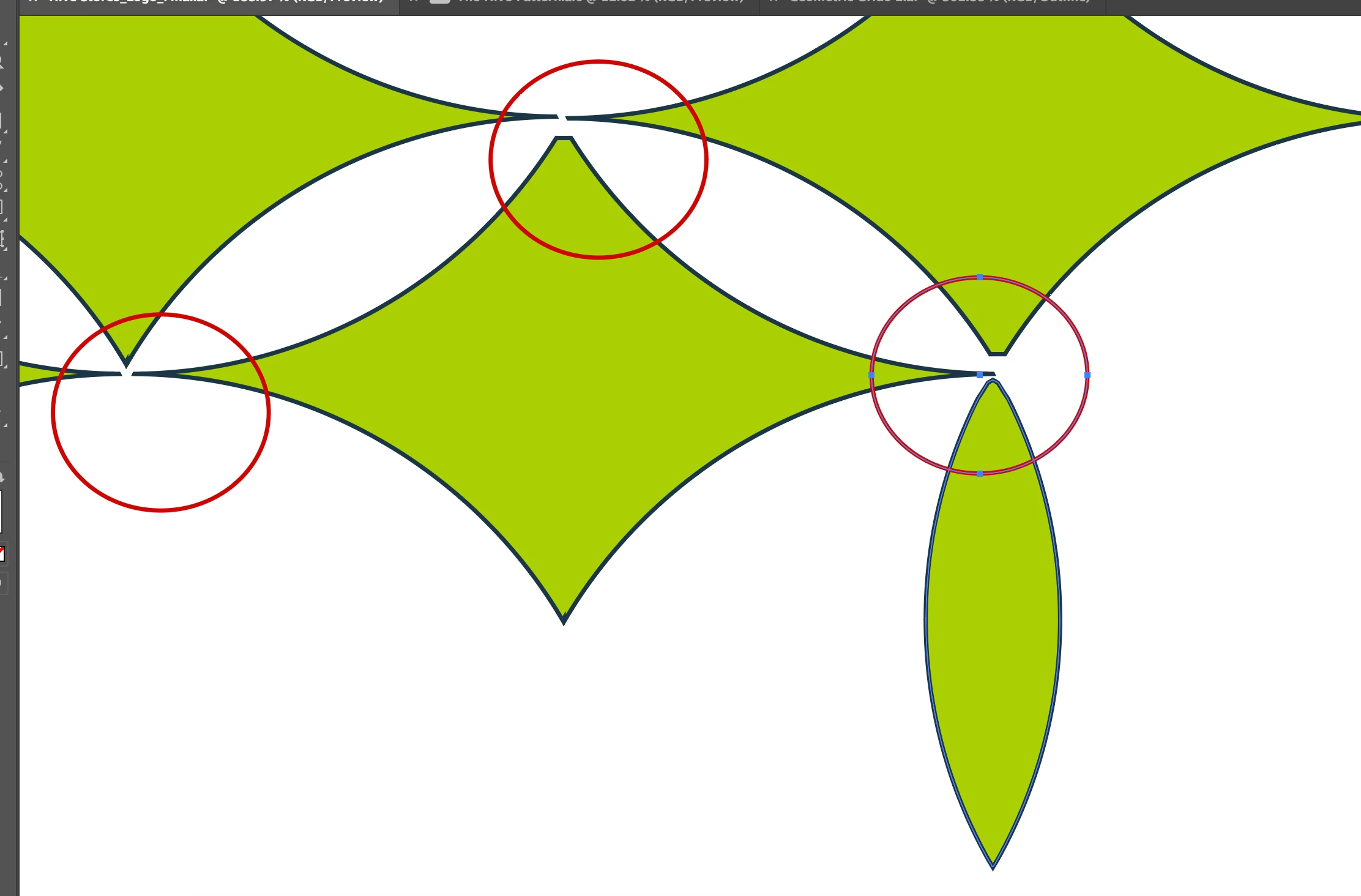

So when I try to create pattern I struggle to align all circles to centres and it creates gaps, and imperfections. This means that if I will try to cut the pattern I will be left with a lot of bits. Please help me to solve this mistery...

This topic has been closed for replies.

Jacob Bugge

Community Expert

daryam,

How about a circle with 6 Anchor Points, see the free Circle script by 佐藤浩之 (Satō Hiroyuki) here?

https://shanfan.github.io/Illustrator-Scripts-Archive/

Ton Frederiks

Community Expert

That does it, Jacob! I used the circle script , substrated the polygon to get a single half leaf.

Mirrored the leaf and used Transform effects to create the pattern.

https://shared-assets.adobe.com/link/9ab07997-d9b1-4c91-5bb5-5bbb59751b93

Jacob Bugge

Community Expert

I regularly use that way to get full accuracy, Ton.

I have been trying to find a thread where I made a suggestion to make a number of concentric circles with evenly spaced circular dots using Dashed Line, based on adaptation to the inherent inaccuracy of Bezier circles.

Unfortunately in vain; it seems to have been among the countless threads that were deleted i 2019.

I believe Kurt remembers it too: he demonstrated it most beautifully.

barbara_a7746676

Community Expert

Illustrator has some rounding errors. As Ton said, the shapes are not perfect.

Ton Frederiks

Community Expert

Bezier circles are not perfect and you will never get a perfect result by transforming the hexagon and the circle together.

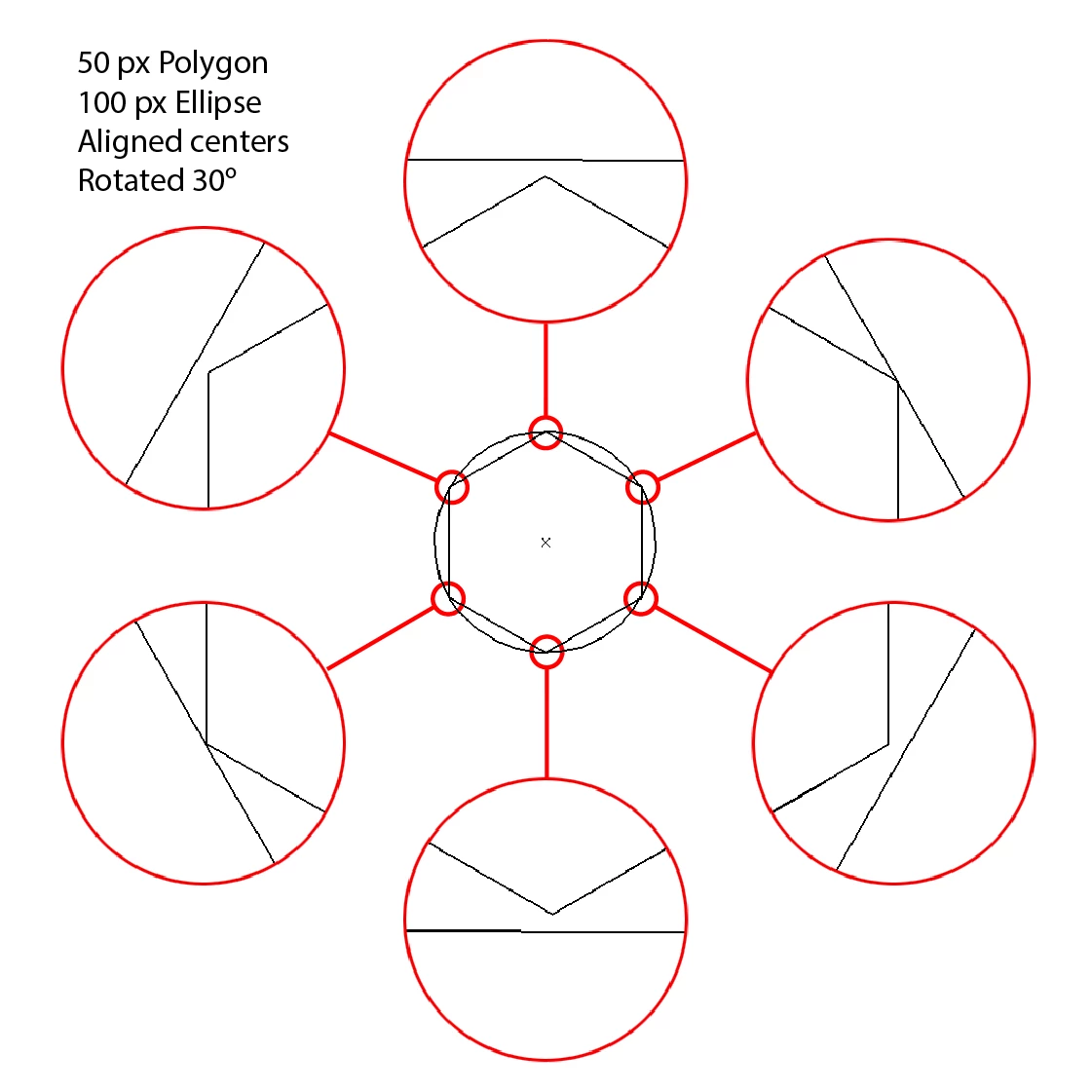

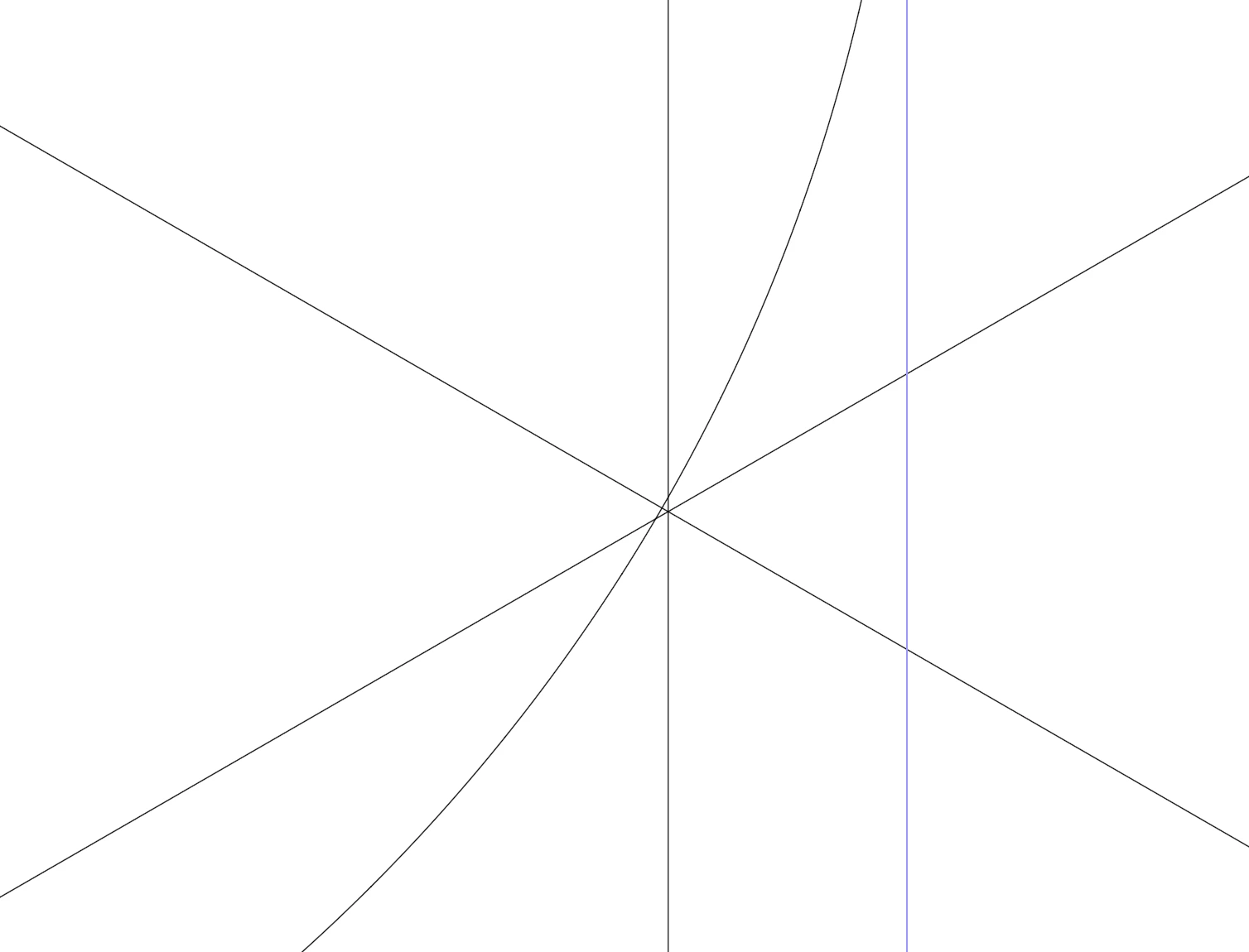

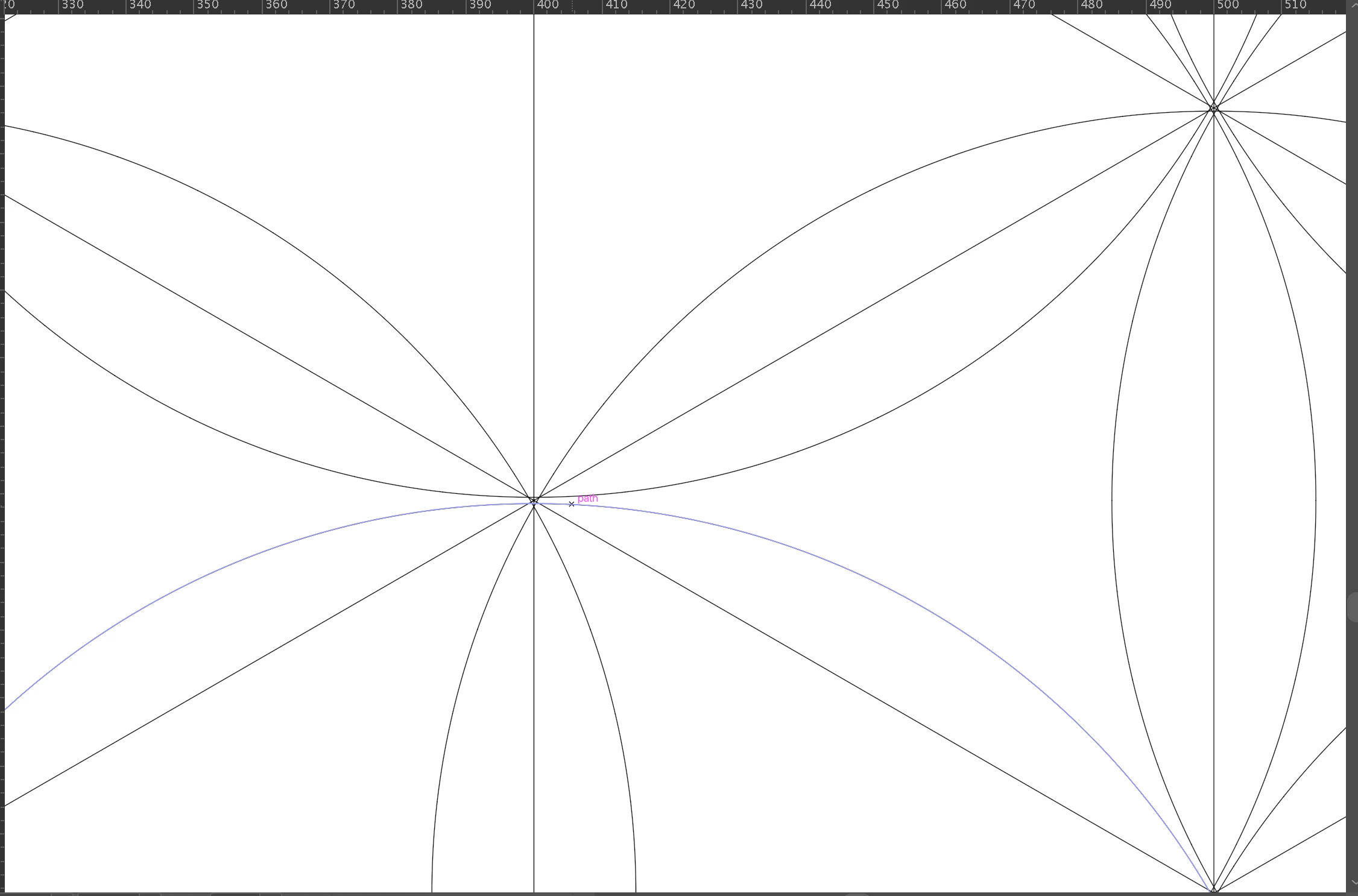

In this example, viewed in CPU Outline view and enlarged 64000% there are only 2 places where the circle and polygon touch.

Monika Gause

Community Expert

Do you have Snap to grid or snap to pixels turned on?

I'm not sure why you draw the grid. Because if you have the size of the circle and only one hexagon, then you can just duplicate that circle and transform again.
