819 views

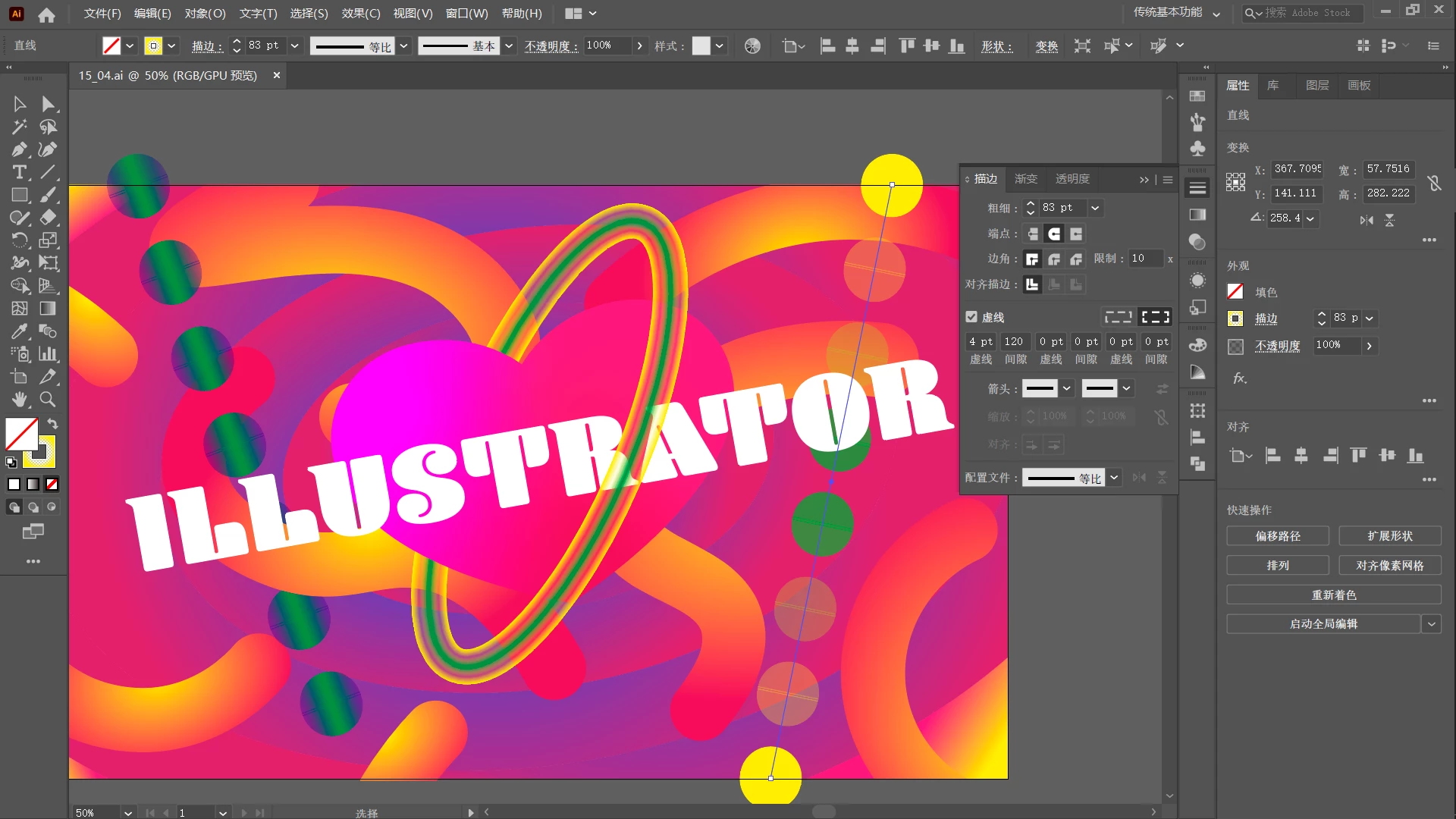

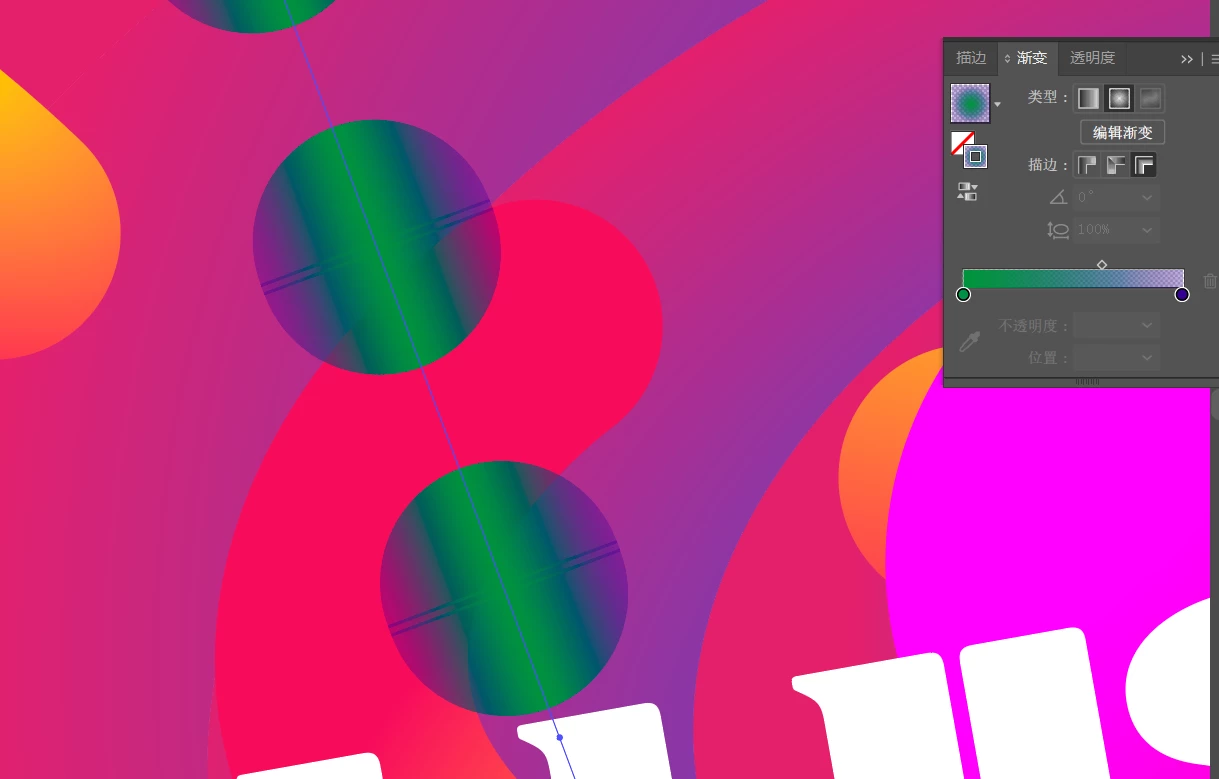

As shown in the pic attached, after applying the gradient to the stroke, and adjusting the alpha to 0 at one end, there will be some lines on each dot of the dotted line.

I'm not sure whether it is a bug, or it is some setting I didn't get it correct. And how could I solve it?

This topic has been closed for replies.

Correct answer tromboniator

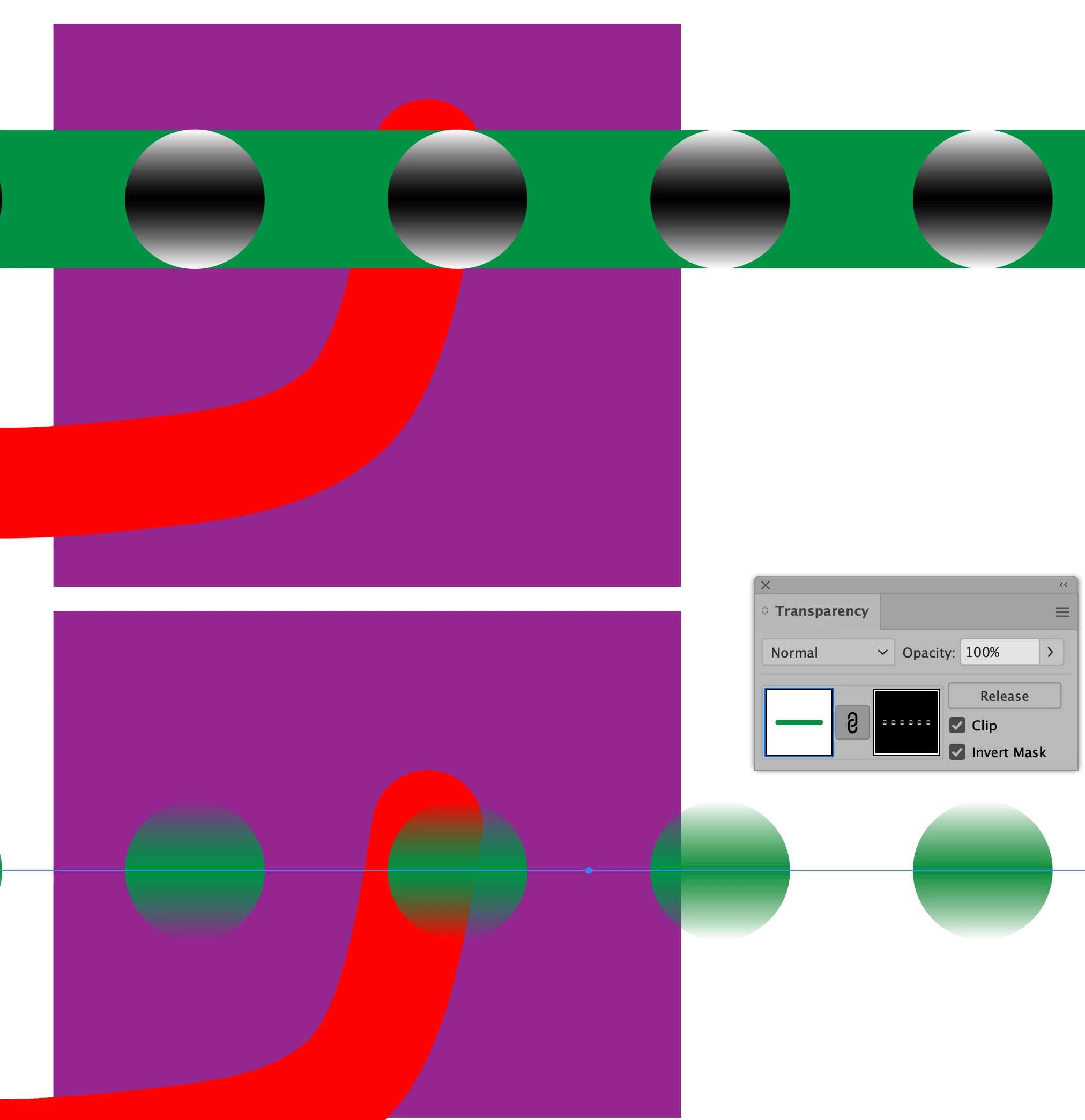

It could be called a bug, but it's nothing that you're doing wrong: applying an opacity of less than 100% to a gradient stroke produces these lines. the only solution to your problem I've found so far is to use two strokes and to create an opacity mask.

The black and white in the gradient on the dashed line are both at 100% opacity.

Peter

tromboniator

Correct answer

Community Expert

It could be called a bug, but it's nothing that you're doing wrong: applying an opacity of less than 100% to a gradient stroke produces these lines. the only solution to your problem I've found so far is to use two strokes and to create an opacity mask.

The black and white in the gradient on the dashed line are both at 100% opacity.

Peter

X

xuchenw20207367Author

Participant

Hi Peter,

Thanks a lot, and it does work.

More, does that mean for now, there is no other solution to this exept to the mask method you mentioned here?

tromboniator

Community Expert

I can only tell you that that is the only solution I've found; it doesn't mean that other answers don't exist. You might wish to report this as a bug here.

barbara_a7746676

Community Expert

Is there more than one stroke or fill applied?

Michael Bullo

Community Expert

Could this be one of those weird view issues that only shows up at particular magnifications? Try zooming in or out a little. Are the lines still there?

Also, do you see these lines if you export out something like a PDF or a PNG? I appreciate that isn't a solution but it should help isolate whether this is a real or a virtual problem.
