Greys displaying as brown in Illustrator 23

  • October 7, 2019
  • 2 replies
  • 2186 views

Anything grey in color—whether it's in RGB, CMYK, or grayscale—displayes with a brown tint on-screen. This is only objects in the file; the UI and pasteboard are grey as they should be. I have 2 monitors and it's the same on both so I'm assuming it's not a monitor calibration issue.



An example: if I create a rectangle and, with the eyedropper, sample the grey outside of the artboard, it should match that color. It shows it as brown. The color values in this case are 96, 96, 96 (#606060), but it won't display it properly. (See attached screenshot.) I tested it on another PC in Illustrator 23.0.2 with a new file. It displays it perfectly with the rectangle blending into the pasteboard's grey. I opened that file in this PC's Illustrator and it looks brown. I also copied and pasted the object into Photoshop, which displays it properly.



I researched the issue and found nothing online except basic color changing for beginners or issues printing greys. This has been happening for months. I'm not sure of the exact time or version it started. It's only on this PC that this is occurring. I'm running the latest version (currently 23.1) on Windows 10.

    This topic has been closed for replies.
    Correct answer RanjBeebs

    I had the same issue, changing the "Proof Setup" fixed it for me, I hope it does for you too.

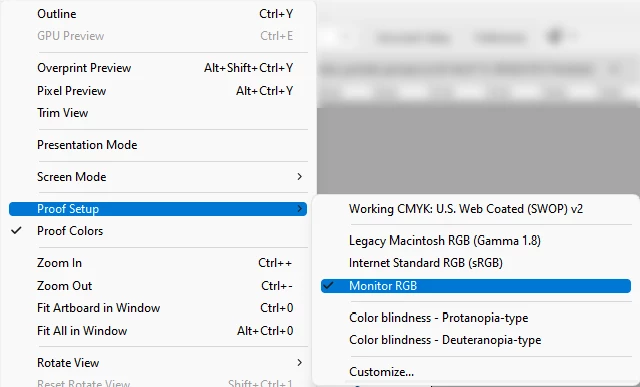

    In Illustrator, go to View> Proof Setup

    Select "Monitor RGB", mine was set to "Working CMYK"

    All that used to show brown (that I know was gray) changed to the gray I was expecting.

    I hope this is the case with yours.

    Cheers.

    2 replies

    RanjBeebs
    RanjBeebsCorrect answer
    Participant
    May 11, 2022

    I had the same issue, changing the "Proof Setup" fixed it for me, I hope it does for you too.



    In Illustrator, go to View> Proof Setup

    Select "Monitor RGB", mine was set to "Working CMYK"

    All that used to show brown (that I know was gray) changed to the gray I was expecting.

    I hope this is the case with yours.

    Cheers.

    Monika Gause
    Community Expert
    Community Expert
    October 7, 2019

    How is color management set up?

    WHich color mode is the document?

    jamacneilAuthor
    Participant
    October 15, 2019
    I've tried both CMYK and RGB. This is on all documents—print and web. All other color-related settings haven't been touched. They're all Adobe's defaults.
    Monika Gause
    Community Expert
    Community Expert
    October 15, 2019
    You have to setup color management to your needs. You have to calibrate your monitor.
