Help with creating a diagonal line path but keep the end flat level, with out expanding or masking,

Forum|Forum|3 years ago
August 16, 2022
4 replies
372 views

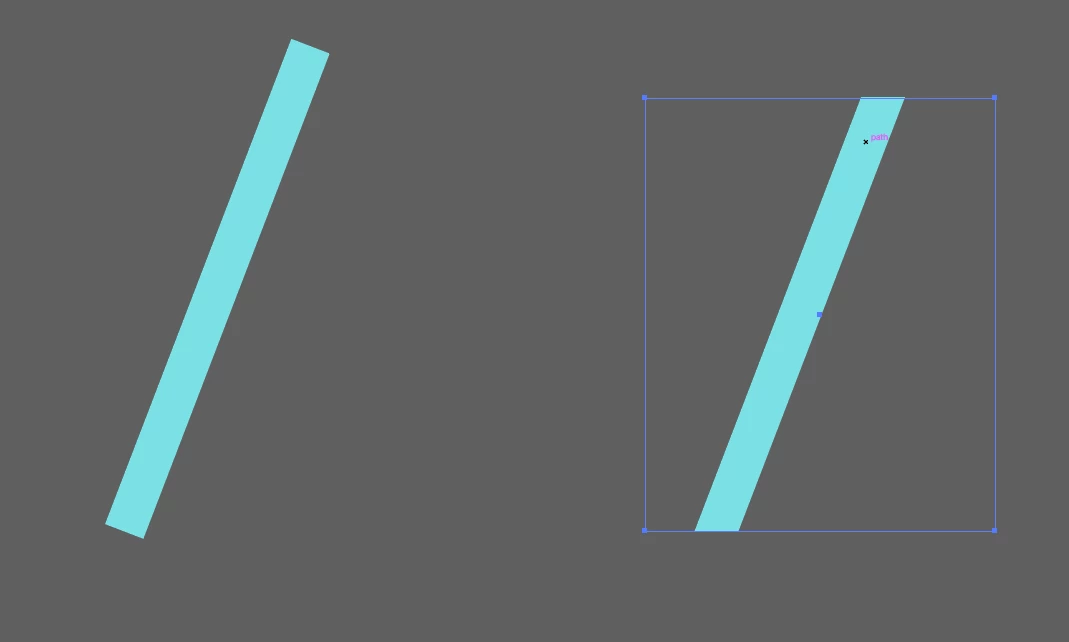

I'd like to know if its possible to achieve the line on the right hand side without expanding the path or masking like shown. So i'd like to keep the line a live path, but keep the top and bottom flat like shown.

Correct answer John Mensinger

Someone may prove me wrong, but I don't think there's a way to get what you describe. There are certain immutable properties of a stroked path, and constraint to the 3 available cap styles is one of them.

N

Najmul_Hasan1428

Participant

Monika Gause

Community Expert

By @Najmul_Hasan1428

Are you having the same question?

Kevin Stohlmeyer

Community Expert

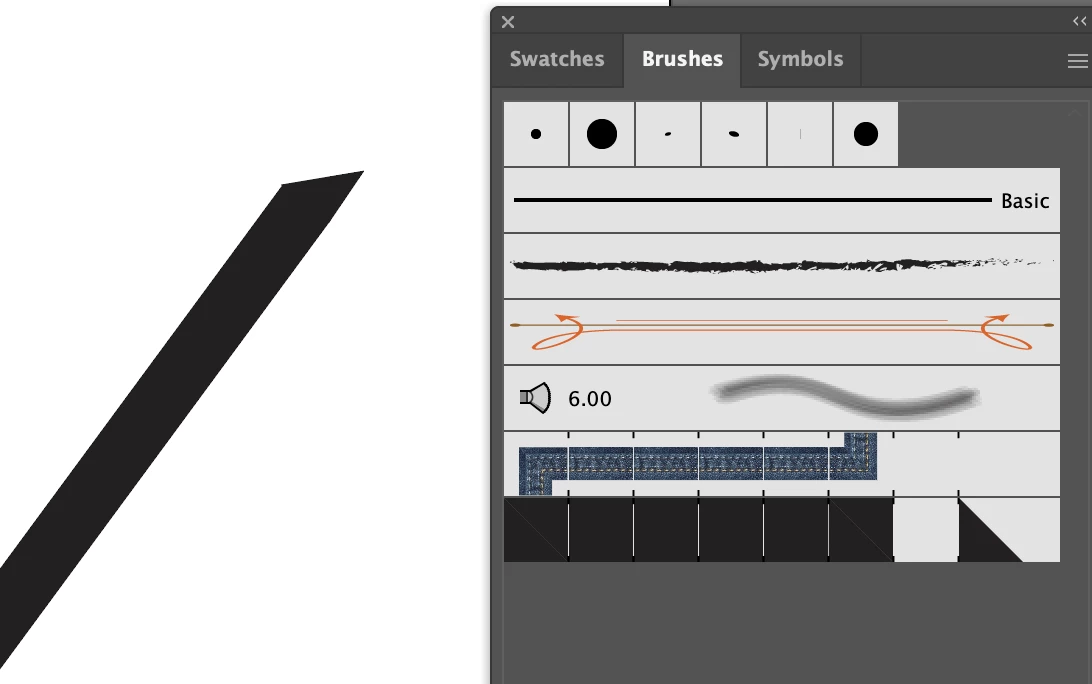

You can try to create a pattern brush with angled endcaps:

https://helpx.adobe.com/illustrator/how-to/illustrator-create-pattern-brush.html

Jacob Bugge

Community Expert

Ross,

What John said.

I believe it could be worth submitting a feature request,

https://illustrator.uservoice.com/forums/333657-illustrator-desktop-feature-requests
https://illustrator.uservoice.com/

John Mensinger

Correct answer

Community Expert

Someone may prove me wrong, but I don't think there's a way to get what you describe. There are certain immutable properties of a stroked path, and constraint to the 3 available cap styles is one of them.
