How can I add a hyperlink in illustrator cc and export a pdf with that link?

  • March 12, 2020
  • 20 replies
  • 675746 views

How can I add a hyperlink in illustrator cc and export a pdf with that link? I have a CTA button that I would like to add a hyperlink to and then save as a pdf with the working hyperlink. Thanks!

    Correct answer Kelsie233052032rql

    Hey @Cari30360013rxh1 , you need to save the PDF with the Adobe PDF Preset called Illustrator Default - at least that's what just worked for me!

    20 replies

    Participant
    October 10, 2021

    You need to copy the URL DIRECTLY from the web browser, and paste it into Illustrator. And don't change the font, cause that will break it. Also if you make it transparent it won't work. You might be able to make it white and hide it behind the text or object that you want hyperlinked. But that might break it too, if you're unlucky. WTF Adobe.

    Monika Gause
    Community Expert
    Community Expert
    October 10, 2021
    quote

    And don't change the font, cause that will break it.


    By @windowsxpeu@yahoo.com



    It cannot be broken, because it doesn't work from the beginning.

    Use Acrobat for creating links. Or use InDesign for creating a document that contains links.

    Ton Frederiks
    Community Expert
    Community Expert
    April 17, 2021

    It works only when a preference to create hyperlinks from URL's is checked in Acrobat.

    Illustrator cannot create a working hyperlink.

    Participant
    April 16, 2021

    Hi there, I recently had the exact same issue. If you type the weblink as it is into Illustrator just as text, when you 'Save as...PDF' these links are automatically hyperlinked in the PDF document. Of course it's frustrating that normal text cannot be hyperlinked (Adobe please introduce this as a feature it's such a simple fix!!), but it might help. 🙂

    Monika Gause
    Community Expert
    Community Expert
    April 16, 2021

    The automatic link is a feature of Acrobat.



    You are not talinkg to "Adobe" here. Please post  feature requests to http://illustrator.uservoice.com

    Participant
    March 29, 2021

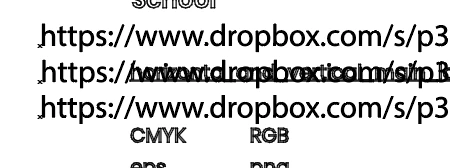

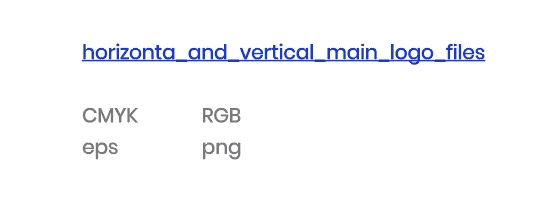

    This is possible by just typing the link address under the object you want to make a link and hiding it under the background. Pdf will automatically understand the link. Image 1 is how it looks like in PDF. Image 2 is actual links (I put them several times to make the clickable area wider). Links are hidden under the white rectangle (background). The blue link you see is not a text, but outlines.

      

    Participant
    July 8, 2020

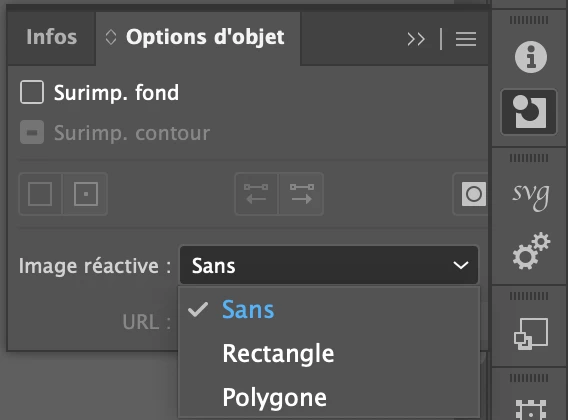

    Of course you can !  - Select your object / the whole layer then go to palette infos / object options - in the object options tabs you can then choose if the image is clickable or not





    Participant
    July 8, 2020

    The hyperlink doesn't work when you export the final file though you can set the url in the original Ai file.



    Bill Silbert
    Community Expert
    Community Expert
    March 12, 2020

    Meganchi's method will work if the text you've selected is actually the web address. If you need the hyperlink to work as navigation within the pdf then you will need the method from my first post.

    meganchi
    Legend
    March 12, 2020

    I want to add to my answer, that if you have a fancy button design or graphic object, then type out the web address with http:// included, then set it on top of your graphic object or button design, create your variable dynamic text, then change the hyperlink text fill to none. Now, when you export the PDF, they hyperlink should work when hovering over the object and the pointer changes to a pointed hand.

    Ton Frederiks
    Community Expert
    Community Expert
    March 12, 2020

    Like Kurt said, it is an Acrobat Preferences setting and works with every url typed in the document. No dynamic text needed.

    meganchi
    Legend
    March 12, 2020

    Actually, this can be done. In Illustrator bring up your Variables window. Select the the text you wish to make a hyperlink of. Then in the Variable windows hamburger menu, select "make text dynamic". Now, export your PDF. When the PDF is openened, then the hyperlink should work.

    Kurt Gold
    Community Expert
    Community Expert
    March 12, 2020

    No, meganchi, unfortunately this is a mirage. Illustrator's dynamic text objects are not capable to do that.

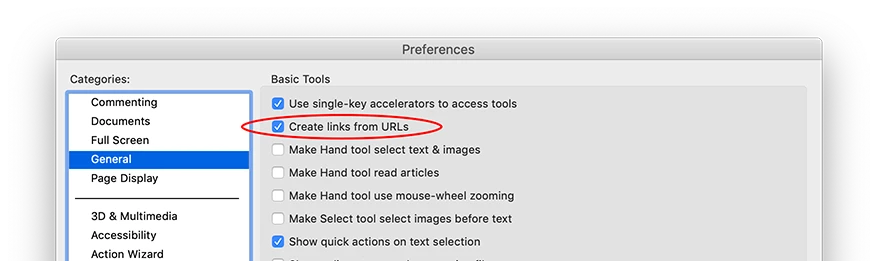

    Your approach is just dependent on a preference in Acrobat. It's called Create links from URLs (see general preferences in Acrobat). It may also work in other PDF applications with similar options.

    meganchi
    Legend
    March 12, 2020

    Kurt,

    I'm very confused. I do not see "Create links from URL's in my General preferences. To test out things, I created an Illustrator file, opened the variable window, made it dynamic text with hyperlink address, then saved a PDF from Illustrator. When opening that PDF in Acrobat I clicked on the link and it navigated directly to the url I specified in lllustrator.

    Bill Silbert
    Community Expert
    Community Expert
    March 12, 2020

    You can't directly create a hyperlink in Illustrator for use in a pdf but you can add hyperlinks to your Illustrator artwork using either InDesign or Acrobat. See https://www.wikihow.com/Add-a-Hyperlink-in-Illustrator for details.

    StefG13
    Participating Frequently
    March 13, 2020

    Well at this level of version, for so many years ... it's completely crazy that this is not possible !!! It is a function which is used to export PDf of a document. Illustrator has the same legitimacy as Indesign on this subject! In any case, that's how Illustrator is sold! I quote the site: "The industry-standard vector graphics software is used by millions of designers and artists to create everything from gorgeous web and mobile graphics to logos, icons, book illustrations, product packaging, and billboards."

    Monika Gause
    Community Expert
    Community Expert
    March 13, 2020

    If you want to make a feature request, it doesn't make any sense to do that in this forum.

    Please report feature requests to http://illustrator.uservoice.com
