How can I create a simple comet-like shape?

  • March 13, 2019
  • 2 replies
  • 2205 views

I'm trying to re-create the comet-like swirl shape in this image. I tried doing it node by node, but that doesn't seem to be the best way Mind helping me with this one?

Thank you!

    This topic has been closed for replies.
    Correct answer Michael Bullo

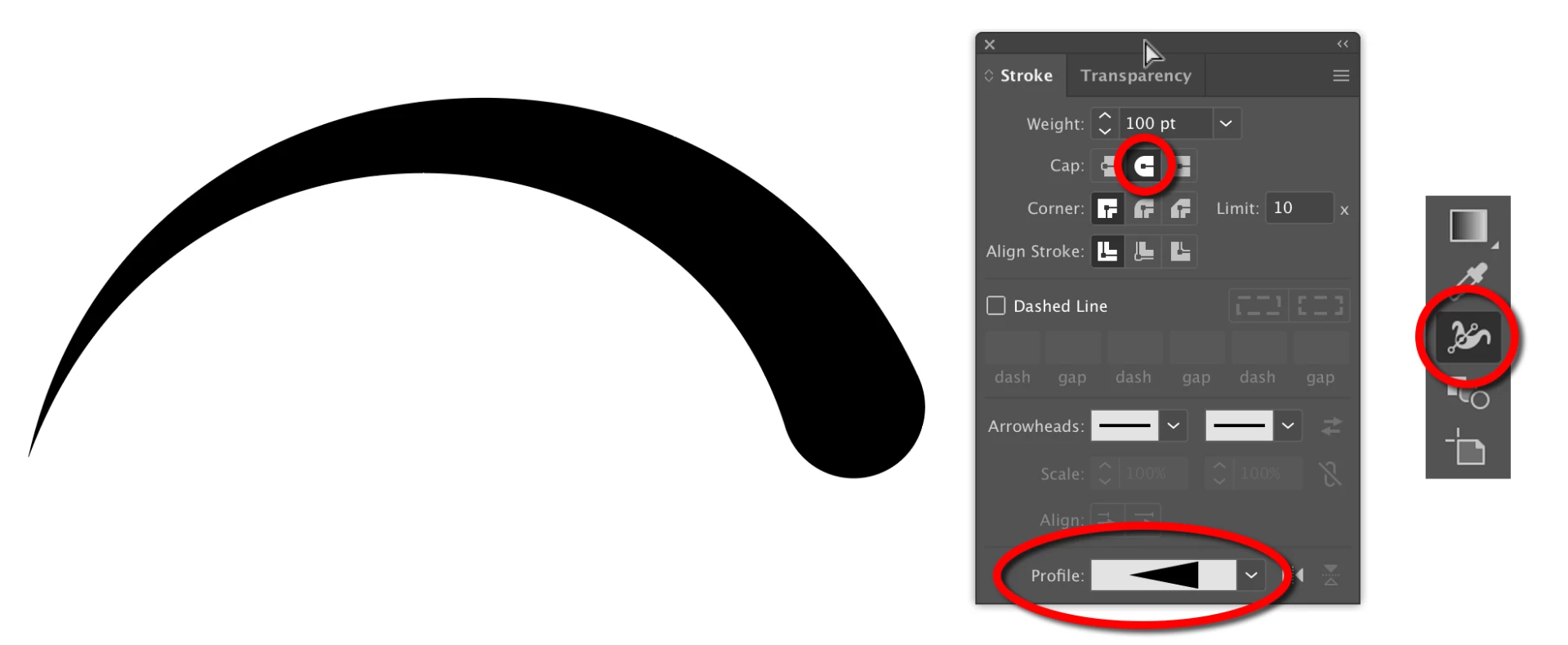

    I drew an arc with the Pen tool

    From the Stroke panel I adjusted the weight and added a Round Cap.

    Using the Width Tool I then pinched one end. You can see the result of using the Width Tool at the bottom of the Stroke panel in the Profile section.

    2 replies

    Michael Bullo
    Community Expert
    Michael BulloCommunity Expert
    Community Expert
    March 13, 2019

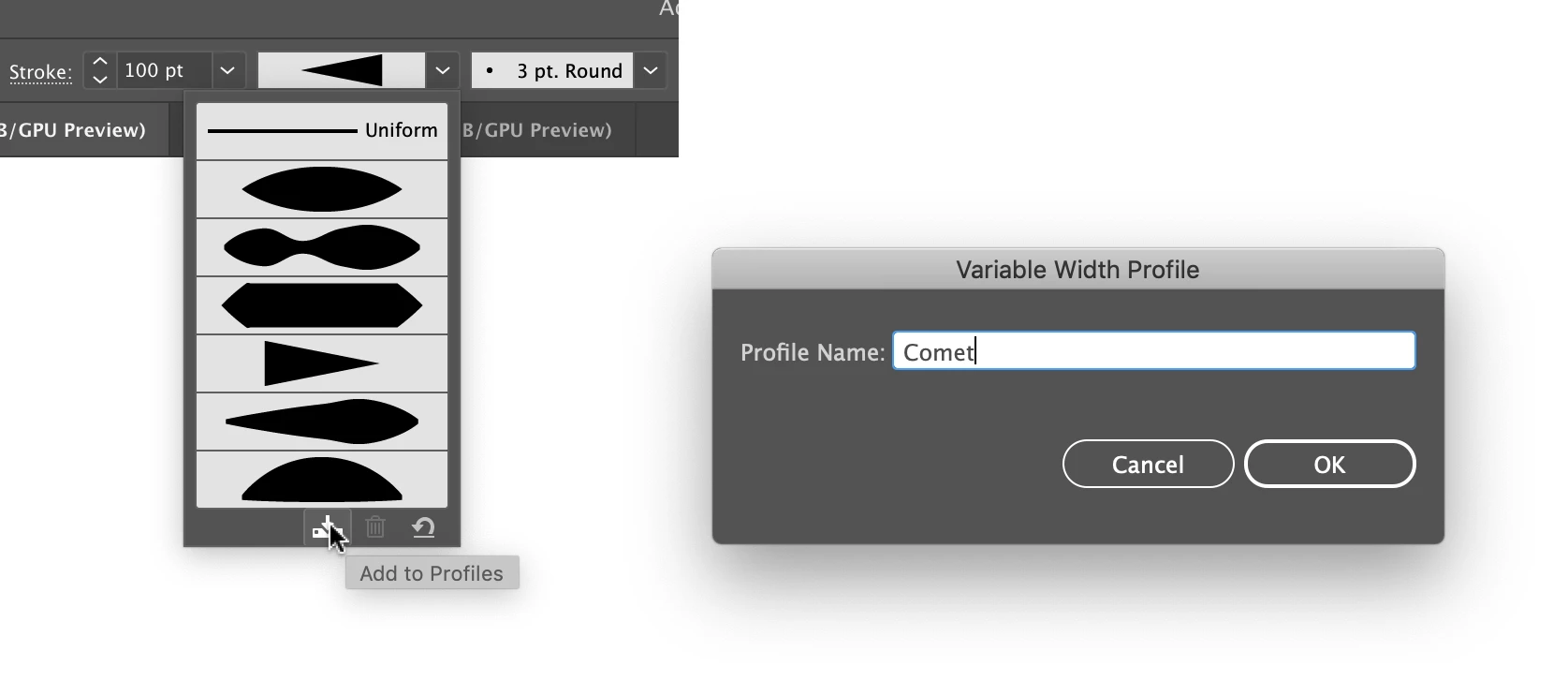

    If you like the Width Tool option you can also capture it as a Variable Width Profile for later use.

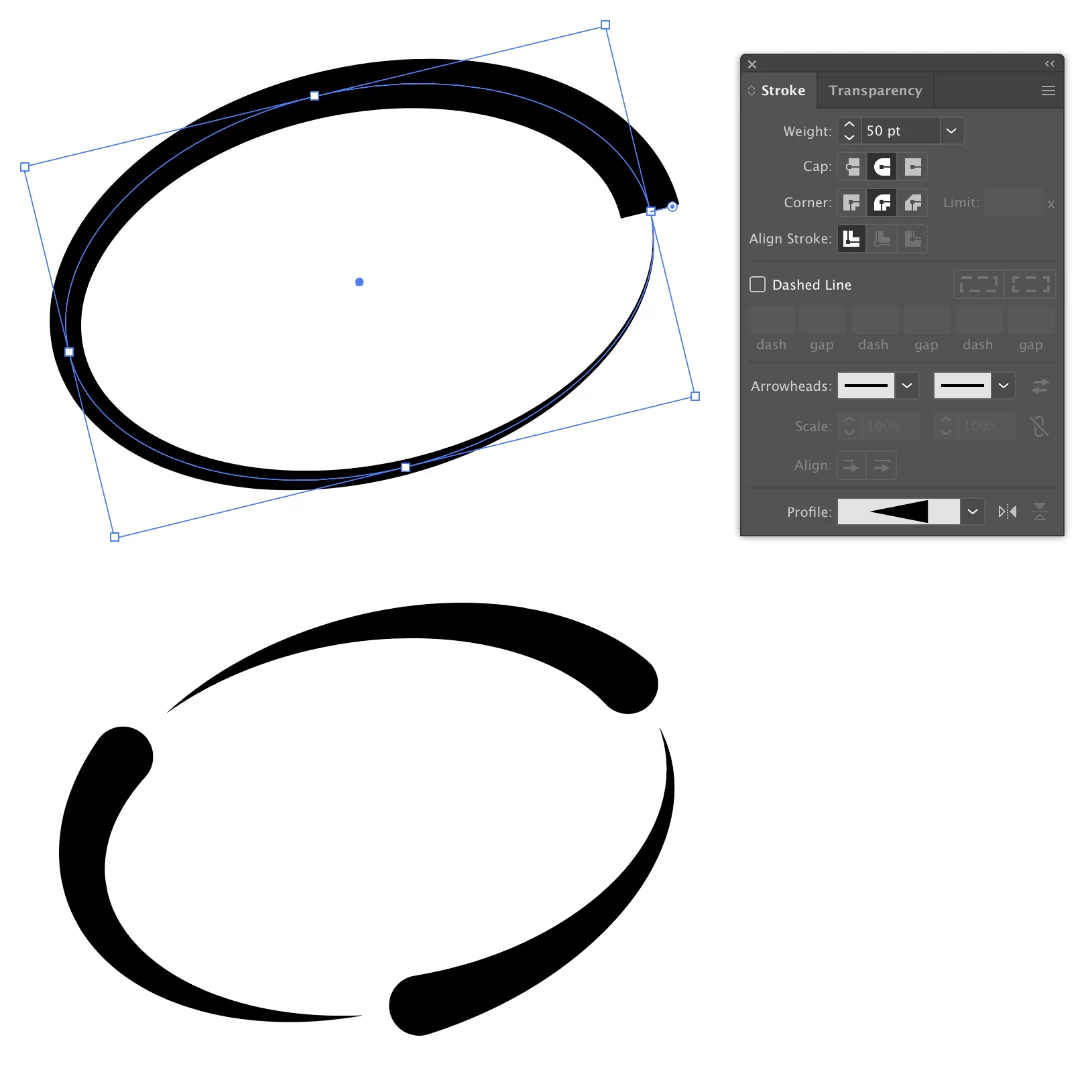

    Here I drew and rotated an oval to which I applied the Variable Width Profile. With the Scissors tool I then cut out small chunks.

    Technically my recreation differs from yours in that the tail of one comet aligns with the middle of the head of the previous comet whereas yours align to the outside. This is an easy fix by creating a non-symmetrical design in the first place with the Width Tool.

      Jgentry
      JgentryAuthor
      Known Participant
      March 13, 2019

      Thanks, Michael! I'll give both approaches a try. I appreciate your help!

      Michael Bullo
      Community Expert
      Michael BulloCommunity ExpertCorrect answer
      Community Expert
      March 13, 2019

      I drew an arc with the Pen tool

      From the Stroke panel I adjusted the weight and added a Round Cap.

      Using the Width Tool I then pinched one end. You can see the result of using the Width Tool at the bottom of the Stroke panel in the Profile section.

      Jgentry
      JgentryAuthor
      Known Participant
      March 13, 2019

      My pen strokes/edges are choppy. Yours are nice and smooth. What's your trick?

      Michael Bullo
      Community Expert
      Michael BulloCommunity Expert
      Community Expert
      March 13, 2019

      Hi Jgentry. Happy to help.

      Could you post an example of the choppy strokes/edges you are referring to.
