How can I increase varying stroke thickness throughout a project?

  • October 28, 2019
  • 4 replies
  • 1610 views

I have been drawing different animals in different documents so that I may later combine the assets to one art board. Upon transferring one of them to my new project, I noticed the line density didn't match the preexisting animals. The new animal I added, a deer, was made up of strokes varying from .5 up to 3. How can I up the entire vectors stroke size while preserving the collection of different thicknesses?

    This topic has been closed for replies.

    4 replies

    tromboniator
    Community Expert
    Community Expert
    October 29, 2019

    Am I missing something? I get precisely the same results that Mike does just by selecting the whole path and going to the Control panel, Properties panel, or Stroke panel (all of which show the largest stroke value of the path) and increasing or decreasing that value by the desired amount. Other values are adjusted by the same percentage.



    Peter

    Mike_Gondek10189183
    Community Expert
    Community Expert
    October 28, 2019

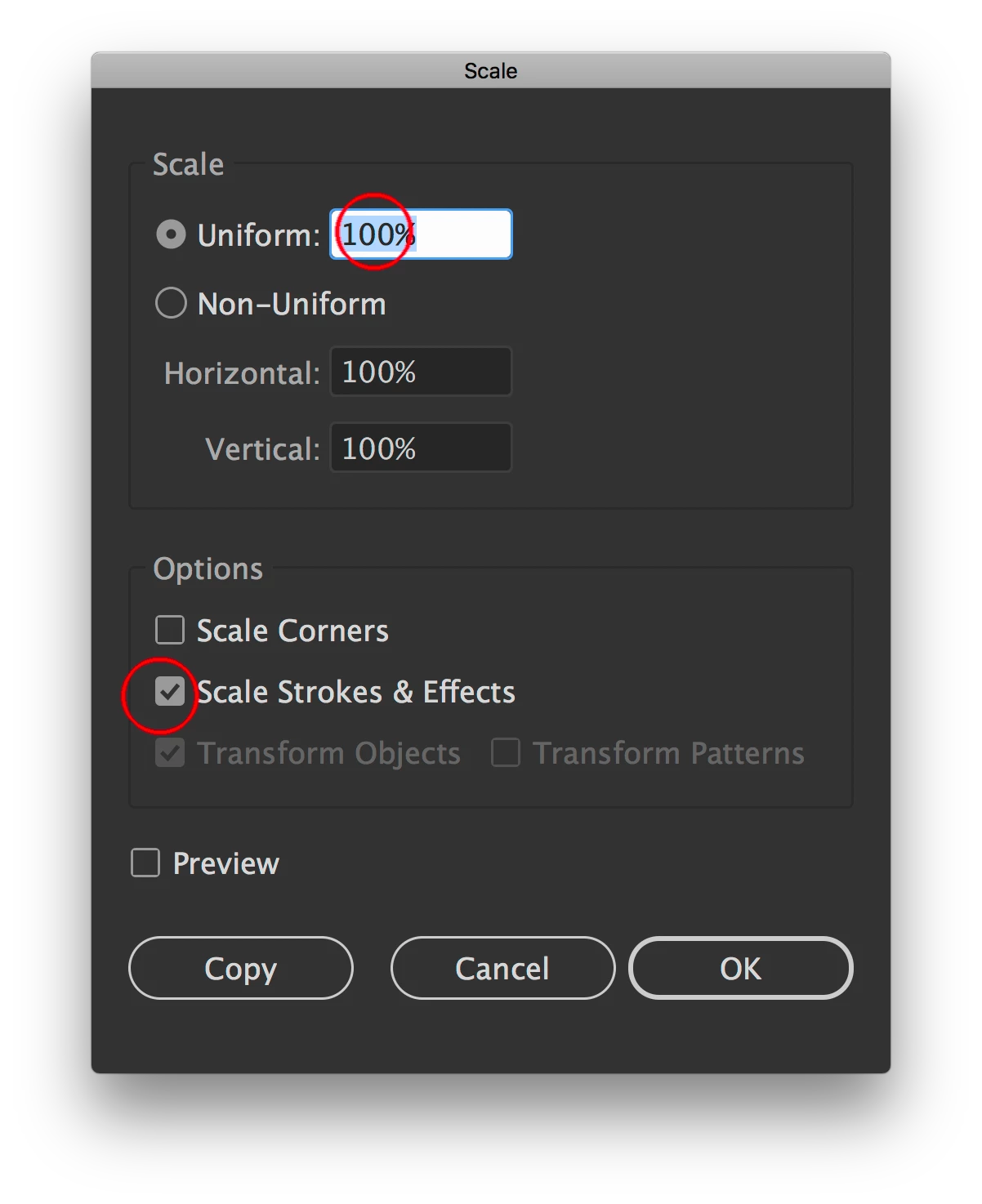

    I very simple way is to click with scale tool and let go to get this menu. Then scale for example 200% with scale stroke, then again at 50% with scale stroke off, to increases seledted stroke thickness 200%.

    Monika Gause
    Community Expert
    Community Expert
    October 28, 2019

    I think I have seen scripts for that, but can't find them right now. What you could do is first scale up the complete object while scaling the stroke widths and then scaling down again, not scaling the stroke width. Or the other way round depending on whether you need to make the strokes thicker or thinner.



    Edit: it's not a script, but a plugin: ToolShed: https://rj-graffix.com/downloads/plugins/#toolshed

    meganchi
    Legend
    October 28, 2019

    I think what you could try is to save the stroke as a graphic style from the prior projects, then apply it to this new animal project.
