How can I merge 2 overlapping anchor points in Illustrator?

Forum|Forum|4 years ago
June 17, 2021
7 replies
23500 views

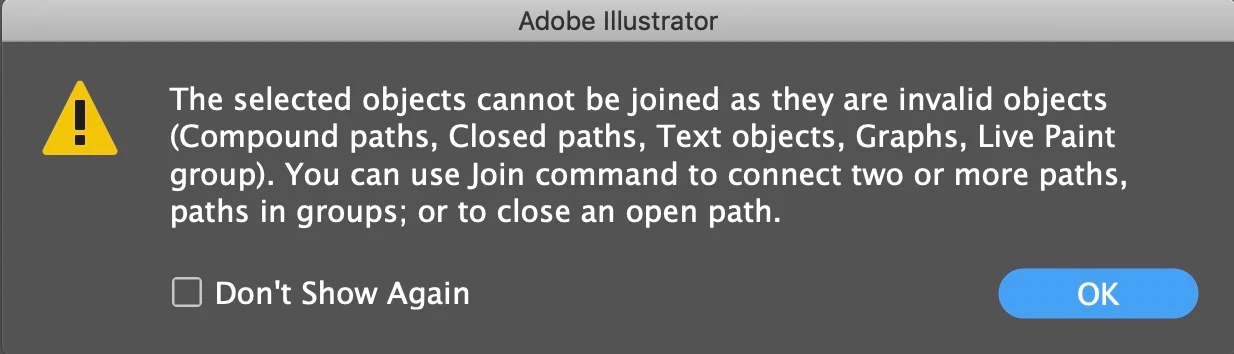

When bring 2 points together (right-click > Average) and then I try to join them together (right-click > Join), I receive an error message saying: "the selected objects cannot be joined as they are invalid objects":

Correct answer Jimmy Papas

Seems that if 2 points are part of the same closed vector shape, you cannot joine them, the solution is to delete the line between them, then before you join them together.

B

Basant Mishra

Known Participant

Select both both anchor points with direct selection tool>Object>Path>Average path.
Then hit unite button in pathfinder.

D

default5kk0f8kvavfv

Participant

if anybody is interested I solved it using this tutorial: https://youtu.be/r3GXhAFoX1A?si=36V09QIv4lrrhkMA

Jimmy PapasAuthorCorrect answer

Inspiring

Seems that if 2 points are part of the same closed vector shape, you cannot joine them, the solution is to delete the line between them, then before you join them together.

Larry G. Schneider

Community Expert

Instead of doing it in two steps have you tried the shortcut Cmd(Ctrl)-Shift-Opt(Alt)-J? This will make a single point of two selected points.

Ton Frederiks

Community Expert

Or click once with the Delete Anchor Points tool (-).

Ton Frederiks

Community Expert

Or as Jacob said 41 seconds earlier.

Jacob Bugge

Community Expert

Ton, as you may remember, quite recently Susan was 45 seconds ahead of me.

Jacob Bugge

Community Expert

Jimmy,

How about just deleting (the topmost) one of them with the The Delete Anchor Point tool (-)?

Jimmy PapasAuthor

Inspiring

It will change the shape of the layer.

Jacob Bugge

Community Expert

Jimmy,

In some (simple) cases, you can get away fine with bringing 2 points together, but in many cases it can make a mess, sometimes obvious from the beginning. It may be better to make changes in other ways, also to fully obtain the desired shape.

A screenshot could be useful; it is easiest for helpers if you use the Insert Photos button at the top of the reply box.

Monika Gause

Community Expert

Are the points on the same path?

Jimmy PapasAuthor

Inspiring

yes

Monika Gause

Community Expert

If it's a closed path, in the pathfinder panel click on unite. This should help in a lot of cases.

And/or try Object > Path > Simplify
