Question

How do I mix 2 pms colors to achieve a 3rd color?

  • July 5, 2012
  • 6 replies
  • 23343 views

I'm running Illustrator CS6 on a Win 64 bit PC. Seems there was a time, in earlier versions when I could pick a pms blue and a pms yellow and achieve a rudimentary green by mixing 20% pms blue and 60% pms yellow, as an example.

I'm having a whale of a time figuring out to do this in the current version. I've been futzing around in edit/edit colors using the two pms colors I've chosen and although I can get tints of each color I can't seem to figure out how to get blends of the tints of each color.

Can anyone help out there? Please?

    This topic has been closed for replies.

    6 replies

    A
    Anonymous
    February 5, 2014

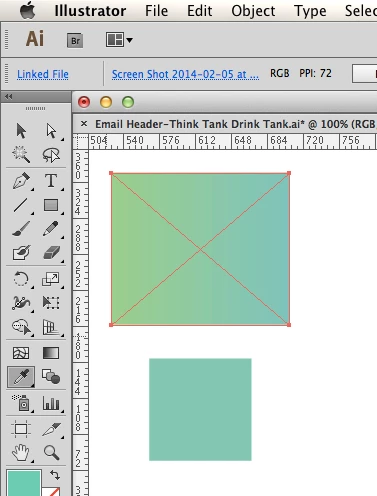

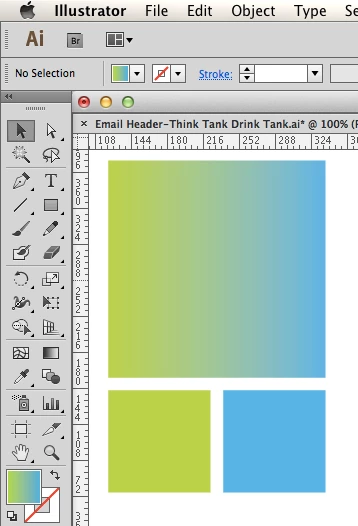

    I found a quick and dirty workaround to combining two colors to create a new color in Illustrator.

    1. Create a gradient of the two colors you want to blend

    2. Take a screenshot of the gradient

    3. Place that screenshot image in your working AI doc

    4. Using the eyedropper tool, select a color in the middle of the gradient until you find one that you like

    It’s by no means exact, but it’s super quick and easy.

    Ton Frederiks
    Community Expert
    Ton FrederiksCommunity Expert
    Community Expert
    February 5, 2014

    Hi ButterUpButtercup,

    this thread is about  mixing 2 Pantone colours and keeping the spot colours when separating/printing the file.

    Your workaround is about creating a single new colour from a mix of two colours, so the spotcolour information will get lost.

    But if that is not important (because you want to work for screens, or if you do not care about spot inks but just want the colour impression), there may be an even easier way.

    1. Create a gradient of the two colors you want to blend

    2. Select Object > Expand, specify the number of objects to expand the gradient to.

    3. While they are still selected, go to the Swatches Panel and select Add Selected Colours from the fly-out menu.

    You can then select them from the Swatches panel (and as a bonus they are Global colours).

    A
    Anonymous
    February 6, 2014

    Hi Ton and Steve,

    Thank you both for the feedback. I apologize that I misunderstood the thread topic. I was looking for an easy way to create a new color from two blended colors and wanted to share my solution. I was creating graphics for an email and therefore only working in RGB/for the screen—I should have specified that.

    Ton, thanks for sharing your easier way!

    Mike_Gondek10189183
    Community Expert
    Mike_Gondek10189183Community Expert
    Community Expert
    June 6, 2013

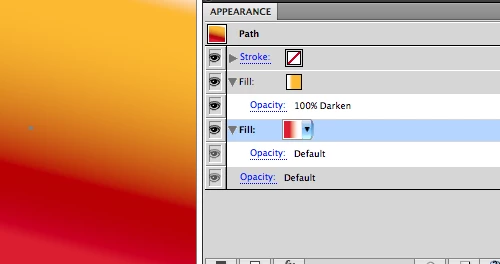

    I used attributes before tranparency blending modes. The appearance panel allows me to keep this all in one object for cleaner editing You can use multiply or darken with spots. I use darken instead of multiply, because our color laser proofs look more accurate – separations would be the same since the inks are spot.

    In the screenshot, am overlapping inks in the middle over the gradient with over 100% totol ink, so that the middle part does not look weak and washed out.

    Luke Jennings
    Luke Jennings
    Inspiring
    July 12, 2012

    I want to add my 2 cents about mixing spot colors. The screen angle of spot colors is usually the same as either the cyan or black separation for conventional (offset) printing. This works well as long as the spot color does not overprint either the cyan or black or another spot color, otherwise you will see an unwanted pattern, or have other issues. An alert printer will adjust the 2nd spot color screen angle, or use stochastic screening to avoid problems. This only applies to screened ink (less than solid areas) and is something for the printer to worry about, not the designer, but it's something to look for on the press proof. If you substitute CMYK for your spot colors, as Steve pointed out in post #2, you will also avoid two inks printing on the same angle.

    Ton Frederiks
    Community Expert
    Ton FrederiksCommunity Expert
    Community Expert
    July 11, 2012

    I remember making a document about this (and I am over 60  ). It describes how to simulate mixed inks in Illustrator and how to create and modify a mixed inks Graphic Styles library.

    I have to update it for CS6 (new screendumps), but the process works in older versions. Included in the PDF is a graphic styles library if you feel lazy.

    Here is the link to the document:

    https://creative.adobe.com/file/6db88ce1-64f8-4e60-a2d2-ef4a92d7c4de

    Ton

    Steve Fairbairn
    Steve Fairbairn
    Inspiring
    July 11, 2012

    Yep, this is basically the overprint method that I described and it assumes that whole objects need to be filled with a mix of two spots. O.k. as far as it goes, although I imagined the process rather in terms of 2 objects partially overlapping, each in its own spot colour.  (And I'm way past 60 too .)

    Ton Frederiks
    Community Expert
    Ton FrederiksCommunity Expert
    Community Expert
    July 12, 2012

    So this seems to be an "over 60" subject. I guess anyone younger designs for web, phones and tablets and could not care less .

    That is not true of course, I see many beautiful posters done with a limited amount of colours.

    I do not understand your remark: "On the other hand you CAN make gradients between spot colours but they will revert to CMYK blends when expanded."

    Why would you expand them? They separate perfectly for print without expanding. You can keep the spot colours even when you rasterize the blended object.

      Steve Fairbairn
      Steve Fairbairn
      Inspiring
      July 5, 2012

      The best you can do is to use Overprint on one of the colours and have Overprint Preview turned on.

      That way you can put one colour on top of the other like you describe.

      You can't make swatches of mixtures like this though.

      On the other hand you CAN make gradients between spot colours but they will revert to CMYK blends when expanded.

      The other trick is to work in faux colours using, for example, magenta for spot red and cyan for spot blue.

      You will of course not get an accurate preview but the plates will be o.k. and working is much simpler than when using spots. Printing will also be o.k. as long as you work in close co-operation with your printer.

      _scott__
      _scott__
      Legend
      July 5, 2012

      You are mis-remembering. Illustrator has never had a mixed ink ability. You may be thinking of Indesign.

      In Illustrator, the easiest way is to use the Appearance Panel with multiple fills and overprint settings, then turn on Overprint Preview for the document.

      S
      sparky52tAuthor
      Participating Frequently
      July 5, 2012

      Mis-remembering -- that's a nice way to put it to a guy who just hit 60.

      I got it now. Thanks.

        _scott__
        _scott__
        Legend
        July 5, 2012

        Hey, I mis-remember all the time
