How to create a guide starting from a hexagon

  • September 27, 2018
  • 4 replies
  • 835 views

Hello,

I wish to create a grid that is converted into grid with a hexagon as a starting point.

I've seen tutorials on isometric grids by creating a duplication of a single line. After that, the set of vertical lines are copied and placed in place and both copies are rotated at a 60° angle. Then cmd+5.

In my case I wish to do it in a less nasty way as it were.

What I tried: Polygon > create pattern > line it up so that we get an a grid of polygons > expand appearance (?!) Not really sure what to do. I know the pattern gets into swatches and isn't treated as the original path so...

(I thought make pattern was a clever way to duplicate the hexagon into a pattern of hexagons really quickly.

How can I from a 6-sided polygon, create an artboard-encompassing grid, where I can just fill in the shapes I want to end up with a set of polygons which I just unite in pathfinder to create the new shape?

For visualization purposes I have added a picture with what I wish to do

Thanks in advance,

George

This topic has been closed for replies.
Correct answer Monika Gause

For this purpose it would be better to not use a pattern at all, because even releasing it would require some editing and deleting a lot of unneeded shapes.

So just duplicate your polygons. Then use the live paint tool or shapebuilder.

4 replies

A
Anonymous
October 5, 2018

I found a solution adequate to my needs.

Create polygon -> select rotate tool -> alt/option-click one corner -> set amount of degrees wanted (eg. 60) -> copy -> then duplicate as needed.

Thanks for all replies.

Q
q3player
Inspiring
September 28, 2018

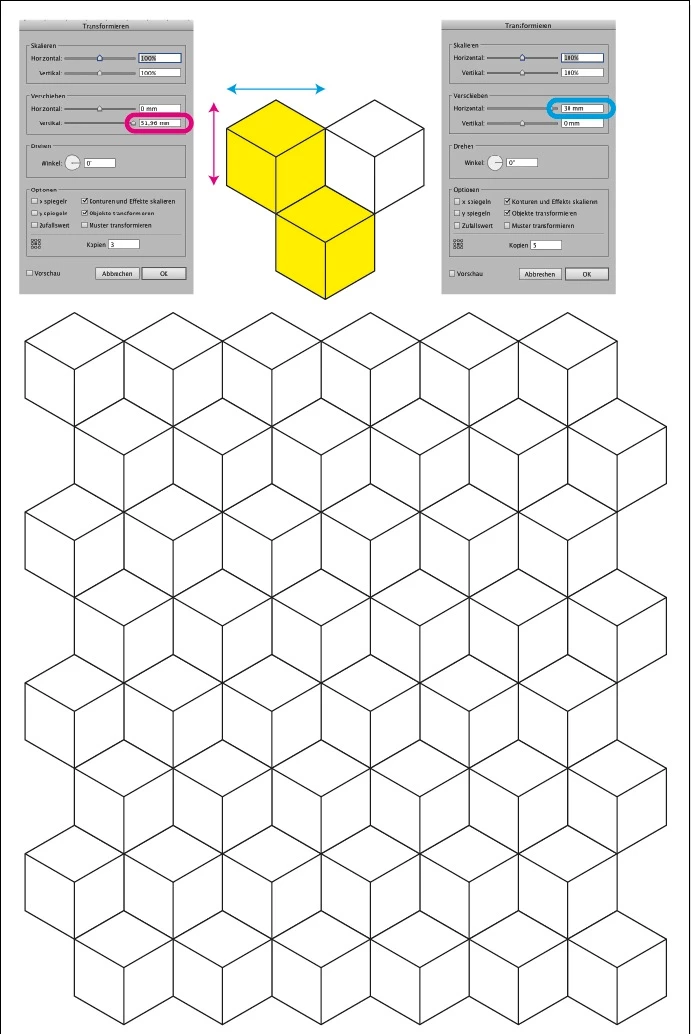

Creating the hexagon/cube should be rather easy. After that you need the values as shown in the screenshot for x and y offset, apply the transformation filter twice and there you go.

Transforming the shapes to guides: CMD + 5

    lambiloon
    Community Expert
    lambiloonCommunity Expert
    Community Expert
    September 28, 2018

    Hi you can use following video to make such grid but there are many other ways also all on you just enjoy learning....Thanks.

    Ali Sajjad / Graphic Design Trainer / Freelancer / Adobe Certified Professional
      Monika Gause
      Community Expert
      Monika GauseCommunity ExpertCorrect answer
      Community Expert
      September 27, 2018

      For this purpose it would be better to not use a pattern at all, because even releasing it would require some editing and deleting a lot of unneeded shapes.

      So just duplicate your polygons. Then use the live paint tool or shapebuilder.
