How to create an half circle with rounded corners?

  • February 1, 2017
  • 5 replies
  • 16313 views

Hi everbody,

I need to create a shape like this below :

i tried different ways but i didn't reach the goal 😞

someone can explain me how to?

thnx a lot

Mushanga75

    This topic has been closed for replies.
    Correct answer John Mensinger

    Ellipse:

    Direct Select:

    Delete:

    Direct Select endpoints and Join (CTRL+J):

    Drag corner widget:

    5 replies

    K
    karthikrajm51950682
    Participant
    March 26, 2019

    but for me that corner widget is not appearing

    wt to do please help.

    Ray Yorkshire
    Ray Yorkshire
    Participating Frequently
    March 26, 2019

    karthik

    You may need to select to show

    in

    View > Show Corner Widget

    Some older versions of Illustrator don't have Corner Widget feature

    K
    karthikrajm51950682
    Participant
    March 26, 2019

    thank you soo much.

    mushanga75
    mushanga75Author
    Known Participant
    February 1, 2017

    thnx so so so much guys!!

    very precious!!

    Mushanga75

    S
    SJRiegel
    Legend
    February 1, 2017

    You don't mention what version you are using in your main text, but your tag says CC2017, so this will be easy.

    Create a circle using the ellipse tool, and then delete one point to make a half-circle.

    Path > Join will close the circle.

    Then Option-drag on one Live Corner to adjust both at once.

    I
    irfancoskun
    Participant
    October 27, 2017

    Hi,

    I know this way but i dont want use it. Because if i rounded semicircle's corner, when i resizes the object, it become misshape. I want to round semicircle's corner with a circle grid. But can't intersect the circle's edges with semicircle's flat edge and semicircle's round edge perfectly at the same time. I can intersect the circle's edge with eighter the flat edge or round edge.

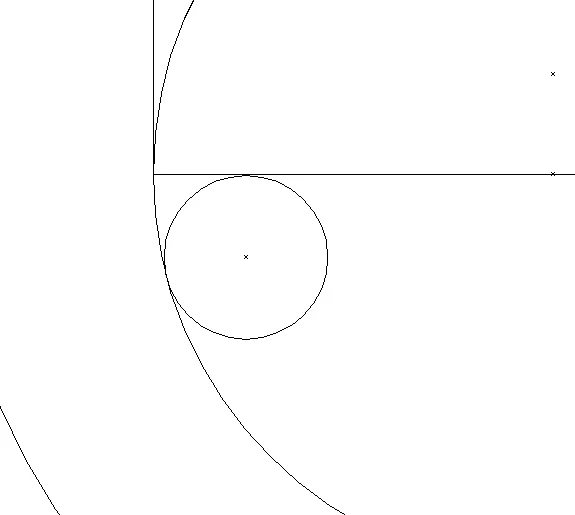

    It look like OK. But actually it's not perfect:

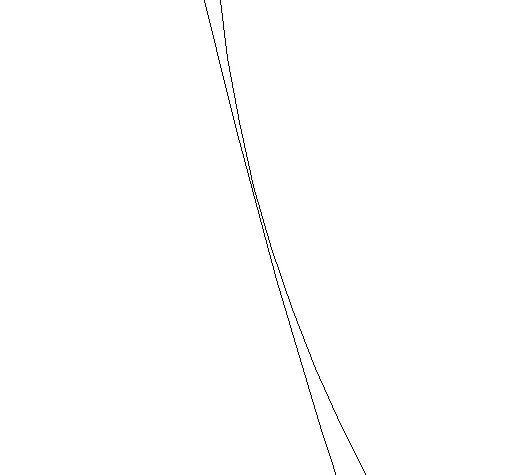

    When the circle's edge intersect perfectly with the semicircle's round edge:

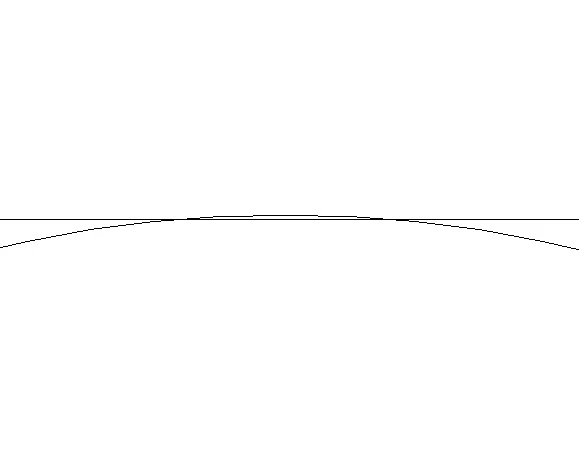

    When the circle's edge intersect perfectly with the semicircle's flat edge:

    I hope i explained myself well.

    Thanks a lot.

    Doug A Roberts
    Community Expert
    Doug A RobertsCommunity Expert
    Community Expert
    October 27, 2017

    irfancoskun  wrote

    I know this way but i dont want use it. Because if i rounded semicircle's corner, when i resizes the object, it become misshape.

    it shouldn't as long as 'scale corners' is on:

      John Mensinger
      Community Expert
      John MensingerCommunity ExpertCorrect answer
      Community Expert
      February 1, 2017

      Ellipse:

      Direct Select:

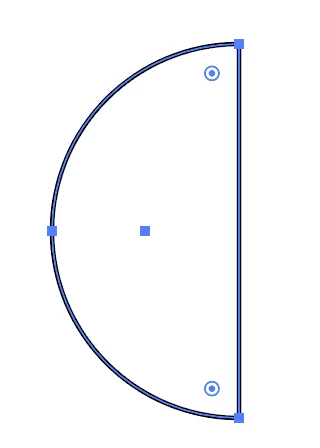

      Delete:

      Direct Select endpoints and Join (CTRL+J):

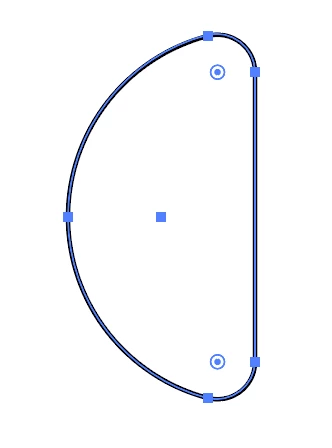

      Drag corner widget:

        king_yk
        king_yk
        Participant
        June 28, 2021

        this doesn't work on newer versions



        pls give an updated version on how to do this because there isn't even corner widgets in my version

        king_yk
        king_yk
        Participant
        June 28, 2021

        nvm I was just being stupid there is corner widgets in my version lol

        Monika Gause
        Community Expert
        Monika GauseCommunity Expert
        Community Expert
        February 1, 2017

        Which version?
