How to create negative space around object?

Forum|Forum|8 years ago
November 22, 2017
2 replies
8257 views

I have found several responses that are close to what I need to do, but not exactly applicable to my specific need.

I'am trying to create a negative space between 2 objects. I was able to achieve what I wanted to do via a white stroke in the first image (I know I accidentally cropped out part of it on both), but that didn't change the outline view which I need to be reflective of what I was trying to create. The second picture is what I have to work with. Thank you for help with what seems to be pretty basic of a task.

This topic has been closed for replies.

Correct answer mattheww53222436

Actually once I was able to expand the live paint there where some new cut lines and I just manually deleted all points needed to create the space. Thank you!

Ton Frederiks

Community Expert

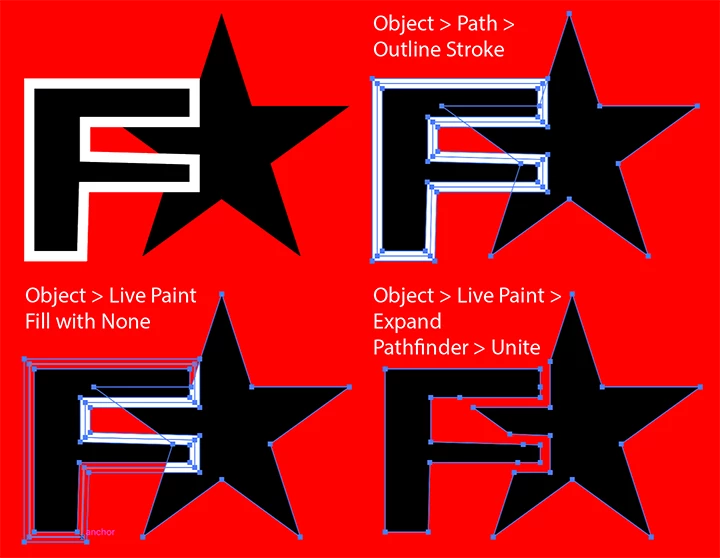

You can try: Object > Path > Outline Stroke

Object > Live Paint > Make

Use the Live Paint Paint Bucket to fill the white areas with None

Expand the Live Paint group

Use Pathfinder panel Unite to unite the black area.

M

mattheww53222436Author

Participant

Everything worked good until the expand live paint. It deleted the now transparent stroke layer and there is nothing to Unite anymore.

M

mattheww53222436AuthorCorrect answer

Participant

Actually once I was able to expand the live paint there where some new cut lines and I just manually deleted all points needed to create the space. Thank you!

Michael Riordan

Inspiring

Not quite sure I understand but it seems like you are saying outlining the elements works but you need the solution to show up in outline mode as well? you might try turning the type into outlines if it is not already, use the Object>Path>Outline Stroke command to separate the stroke into its own shape. If you need to isolate the type, stroke and leaf then you might try a pathfinder option. Hope that helps

M

mattheww53222436Author

Participant

Yeah it's hard to explain. So the type is already an object and borrowed from a logo website. The file will be used to cut vinyl decals. When I had it just with the stroke outlined and white (to match the background) the lines were still behind the image in outline mode. That translates to cut lines with a vinyl cutter and thus ruins the whole decal. I was trying a remove from back/front approach, but couldn't get it to just remove the stroke object from the leaf.
