How to export files from Illustrator without transparent lines around the art?

Forum|Forum|4 years ago
June 26, 2021
5 replies
1497 views

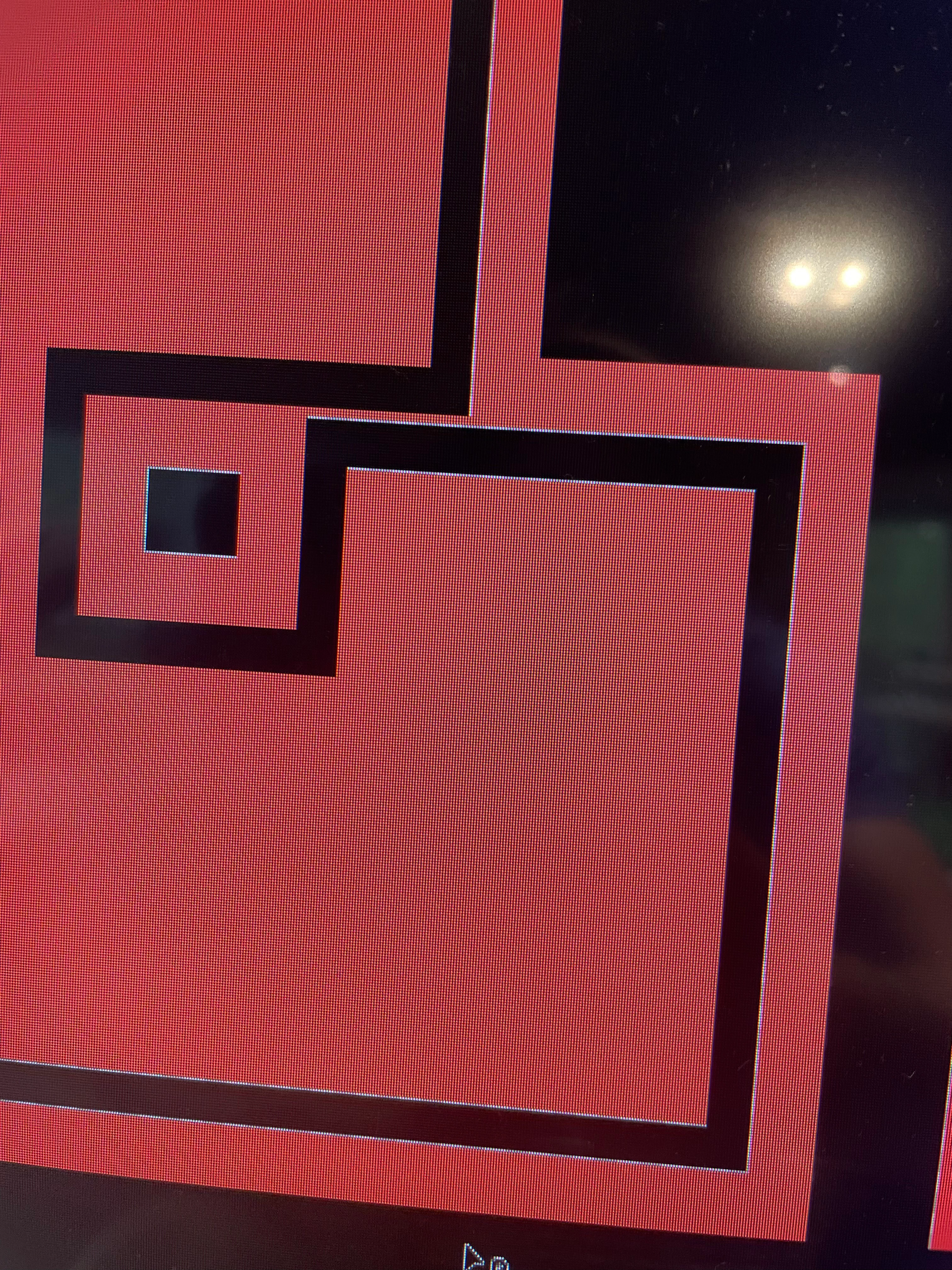

When exporting files to a transparent .png from Illustrator, I'm seeing a weird semi-transparent outline around some of the art. It only does it in some art files. I've tried changing the document color mode, checking and unchecking "discard white overprint" under document setup, and made sure I'm exporting at 300 dpi / Art Optimized Supersampling. The art looks crisp in illustrator. We're printing direct-to-garment using a brother printer, and the white underprint is showing through wherever that transparent line is.

IMG_7185-MOV.zip

This topic has been closed for replies.

Mike_Gondek10189183

Community Expert

In reality you probably need to pullback your white color, by making a white plate that is slighly smaller. This way any misregistration of white against red will not show as the white will be smaller. .006" is amount for litho, but you may wish to try a larger amount such as .012" for this garment printing as I suspect that is lower resolution.

If you are unfamiliar with making traps and pullback, easiest what is to make 2 files until you get used to making spot color of white and using overprint or multiply.

Mike_Gondek10189183

Community Expert

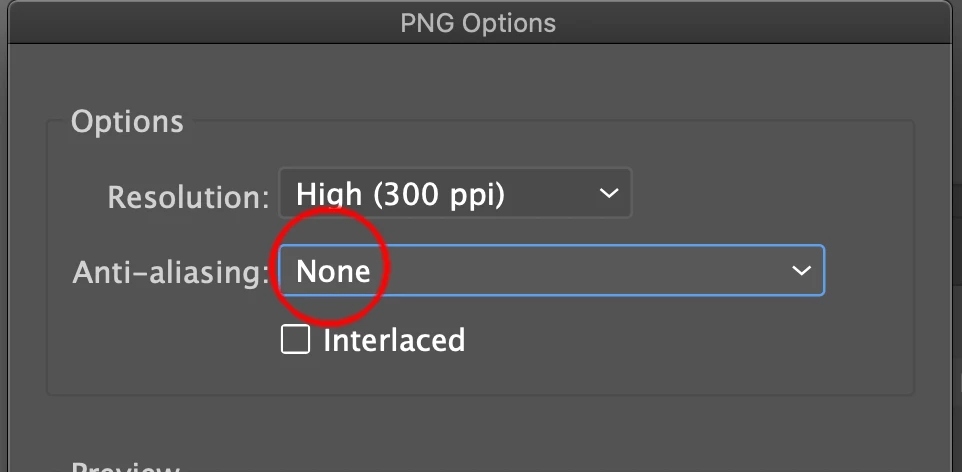

That is the anit-aliasing you are seeing. You need to turn off.

Your angled lines will look jagged, but maybe this is better for your garment printing. Try a higher dpi to lessen the sawtooth jaggedness if your brother printer can image the extra data.

sarahw97305671Author

Participant

This almost fixed our problem. When we open the transparent .png in photoshop, there is no longer a "fade" around the edges of the art, which is great. But we are still unable to get the white underprint to print without white edges showing under the art. The printer software automatically creates the "trap" for the art (so we don't need 2 files), and they have dialed the choke back significantly, but it removes over half of the underprint, which is not what we want.

Ton Frederiks

Community Expert

Is that white underprint a separate file?

sarahw97305671Author

Participant

No it's not. The printer's software automatically creates the white trap that is printed underneath the art so that we don't have to create 2 separate files. They have the ability to set the choke level and have been unable to get it to print underneath the whole artwork without white edges showing around certain areas of the art.

sarahw97305671Author

Participant

EPS File For Review:

endzonelogo_vector1.zip

Monika Gause

Community Expert

The file doesn't work due to some problem with box

M

Mike Bro

Legend

Hello,

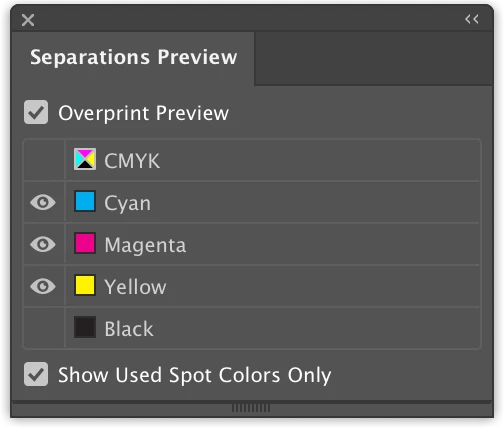

In the Illustrator file under the Windows menu go to the Separations Preview check on the Overprint Preview and toggle off the black channel to see if there's any abnormalities in the artwork and it's set to overprint and not set to knockout.

If you could post the .ai file to review that would be helpful too.

Regards,

Mike

sarahw97305671Author

Participant

We only print in RGB with this printer, so the separations preview doesn't show anything. If I change the document color mode to CMYK and toggle the black off as you said, I still don't see any abnormalities in the art.
